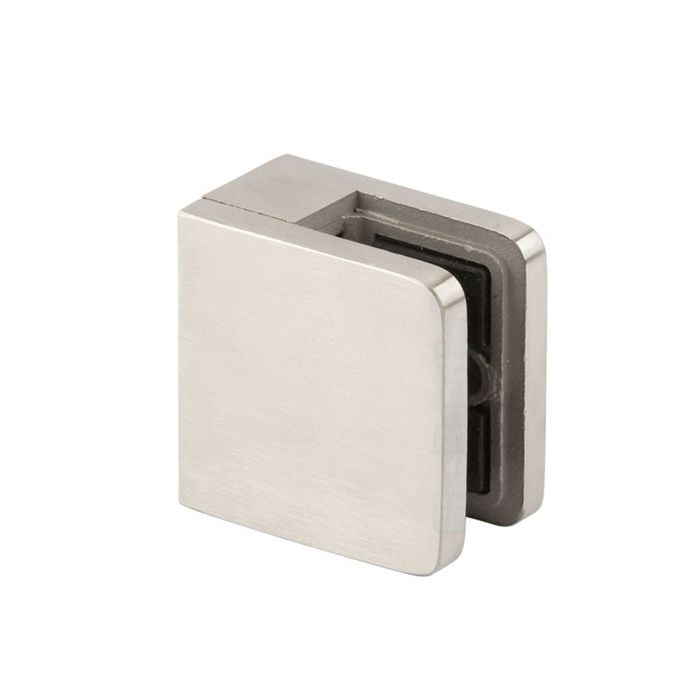

Glass clamp type F, flat mounting for 8.76 mm glass (AISI316)
Stainless steel glass clamp for outdoor use, flat mounting, for glass thickness 8.76 mm, AISI316(More information)
- Free shipment from € 500,- (incl. VAT)
- Pick-up in NL or delivery in NL and Flanders (exception of the Wadden Islands)
- Relatively short delivery times
- Pay with i.e. iDeal, Riverty, Billink, Bancontact, PayPal en Creditcard
Glass clamp "type F" 8.76 mm is a stainless steel glass clamp of AISI 316 that can be used outside. You can use this clamp perfectly for mounting glass panels between uprights to make a windshield or balustrade, for example. Optionally, a locking pin is supplied. You can only use this locking pin if you order a drilling hole in the glass when ordering the glass.
No separate recesses in the glass are necessary with this glass clamp. This leaves a gap between the glass and the upright of approximately 16 - 19 mm. If you are looking for a clamp for a shower enclosure, we advise you to order a shower enclosure clamp and not choose this clamp.
Main features of glass clamp Type F, stainless steel (AISI316) 8.76 mm:
Glass clamp for mounting laminated and tempered-laminated glass
Mounting on a flat surface
Suitable for laminated glass 44.2 and tempered-laminated glass 44.2
Suitable for outdoor use
Fully stainless steel, stainless steel brushed finish
Optional securing pin: drill hole in glass per pin: Ø 12 mm
Can be ordered per piece, the mentioned price is one piece price!
Glass clamp Type F, stainless steel (AISI316) 8.76 mm comes with:
One glass clamp
Two socket head screws for clamping the clamp to the glass
One security pin
Points of attention:
Use the correct screws for your situation (these are not supplied with the clamp) screw
Open the clamp, mount the clamp on the upright / wall, position the glass in the correct place and clamp it with the Allen screws (use the correct thickness mounting gasket)
Work wisely and with the right tools
Preferably use a long spirit level or a laser spirit level for proper positioning of the clamps
Make sure you use the correct glass deduction when ordering the glass panel. If you need help, please ask us for advice
Make sure that when ordering the glass you indicate whether you are going to use the securing pin. You cannot drill into the glass afterwards
NEVER let glass rest on the floor, always place something in between such as a wooden slat, blanket, carpet, etc. If glass is placed on a hard surface, the risk of damage is very high. This also applies to contact with the wall and other hard surfaces. Protect the glass, it is and will remain a vulnerable product
|Mounting of ... to ....||Glass wall to normal wall (non-glas wall)|
|Clamp for glass thickness||44.2 (8.76 mm)|
|Suitable types of glass||tempered glass, tempered-laminated glass|
|Glass thickness in mm||8.76|
|Material||Stainless Steel (AISI 316)|
|Finishing||brushed stainless steel|
|Expected delivery time||1-3 working days|
|Scope of supply||per 1 piece|
|Unit of measurement||per piece|
|Packed in a||box|
|Shipping price Netherlands||11,50|
|Shipping price Belgium||14,00|
|Shipping price rest of Europe||See the check-out page for actual pricing|
|Pick-up possible?||Yes, Pick-up is possible in:, Oosterhout (Noord-Brabant), 's-Hertogenbosch, (These locations are only collection points, no production takes place here! Always place orders on the website)|
