Glass shelf supports
Order glass shelf supports
Glass supports
Glass shelf supports are used for mounting tempered glass shelves. Most supports have a clamping screw so that the shelf can be securely fastened. Every situation requires a different glass support, so think carefully about what you want to achieve with your glass shelf.
It is very tempting to use as few and small glass supports as possible onto the wall and clamp a glass shelf in it. But this is not wise! The smaller the support, the less carrying capacity the complete construction has got. You cannot just clamp any size glass shelf in any carrier. There are no clear and basic instructions for this because there is much more involved. What is the size of the glass shelf? How heavy is this glass shelf? What are you going to put on it? On which surface do you mount the supoorts? And how do you assemble it? We have tried to set a small guideline in some products of the maximum load capacity and dimensions of the glass shelf. Estimate whether this may also be the case in your situation. For example, if you have a wall of plasterboards, this is certainly not a strong basis and the stated dimensions and load capacity certainly do not apply.
Types of glass shelf supports
There are two types of glass supports; the glass shelf supports that usually support shelves in a niche or cupboard on the sides at 4 points (2 on the left and 2 on the right, depending on size, situation and / or weight, this could also be 6) and there are glass shelf supports that only support the shelf from the back. This is most tricky, because you are going to create a leverage effect on the clamp on the back. In this type of application, keep the boards as shallow as possible and put as little weight on them as possible.
Are you unsure or do you have any questions? Pplease contact us via chat, mail or telephone. Then we will try to help and advise you as best we can.
-
Glass support 15 x 17 x 27 mm, matte chromeBrand Bohle, for glass thickness 6 to 10 mm, material Zinc
€8.80 As low as €7.48per piece -
Glass support 15 x 17 x 27 mm, Stainless Steel lookBrand Bohle, for glass thickness 6 to 10 mm, material Zinc
€9.20 As low as €7.82per piece -
Glass support 30 x 16 x 27 mm, chromeBrand SISO, for glass thickness 4 - 8 mm, material Zamak
€6.80 As low as €6.12per piece -
Glass support 30 x 16 x 27 mm, aluminum effectBrand SISO, for glass thickness 4 - 8 mm, material Zamak
€7.25 As low as €6.53per piece -

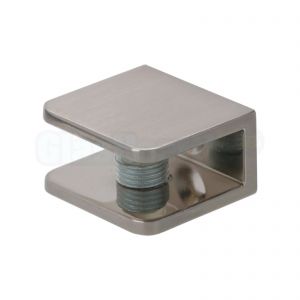

Glass support 30 x 16 x 27 mm, stainless steel effectBrand SISO, for glass thickness 4 - 8 mm, material Zamak
€6.75 As low as €6.08per piece -

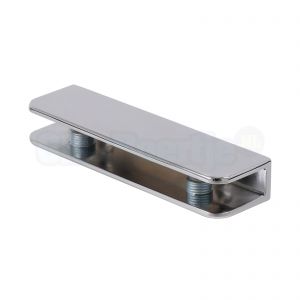

Glass support 100 x 16 x 27 mm, chromeBrand SISO, for glass thickness 4 - 8 mm, material Zamak
€17.10 As low as €15.39per piece -

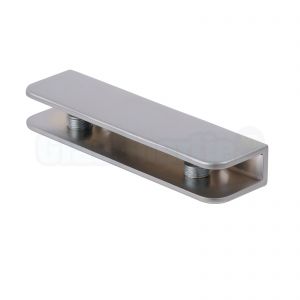

Glass support 100 x 16 x 27 mm, aluminum effectBrand SISO, for glass thickness 4 - 8 mm, material Zamak
€14.50 As low as €13.05per piece -
Glass support 50 x 16 x 27 mm, chromeBrand SISO, for glass thickness 4 - 8 mm, material Zamak
€8.25 As low as €7.43per piece -
Glass support 50 x 16 x 27 mm, aluminum effectBrand SISO, for glass thickness 4 - 8 mm, material Zamak
€8.50 As low as €7.65per piece -
Glass support 50 x 16 x 27 mm, stainless steel effectBrand SISO, for glass thickness 4 - 8 mm, material Zamak
€8.85 As low as €7.97per piece -
Glass support Ø 20 x 26 mm, chromeBrand SISO, for glass thickness 6 - 10 mm, material Zamak
€5.00 As low as €4.13per piece -
Glass support Ø 20 x 26 mm, aluminum effectBrand SISO, for glass thickness 6 - 10 mm, material Zamak
€4.65 As low as €3.95per piece -
Glass support Ø 20 x 26 mm, stainless steel effectBrand SISO, for glass thickness 6 - 10 mm, material Zamak
€4.95 As low as €4.21per piece -
Glass support adjustable square (small), chromeBrand GlasBoertje.nl, for glass thickness 5 - 15 mm
€10.55 As low as €9.50per piece -
Glass support adjustable square (small), stainless steel lookBrand GlasBoertje.nl, for glass thickness 5 - 15 mm
€10.75 As low as €9.68per piece -
Glass support adjustable square (medium), chromeBrand GlasBoertje.nl, for glass thickness 5 - 25 mm
€12.90 As low as €11.61per piece -
Glass support adjustable square (medium), stainless steel lookBrand GlasBoertje.nl, for glass thickness 5 - 25 mm
€14.90 As low as €13.41per piece -
Glass support adjustable square (large), chromeBrand GlasBoertje.nl, for glass thickness 5 - 25 mm
€13.75 As low as €12.38per piece -
Glass support adjustable square (large), stainless steel look
Brand GlasBoertje.nl, for glass thickness 5 - 25 mm
€14.15 As low as €12.74per piece -
Glass support Ø 14 x 18 mmBrand PT, for glass thickness 4 - 12 mm, brass, nickel plated
€2.85 As low as €2.42per piece
