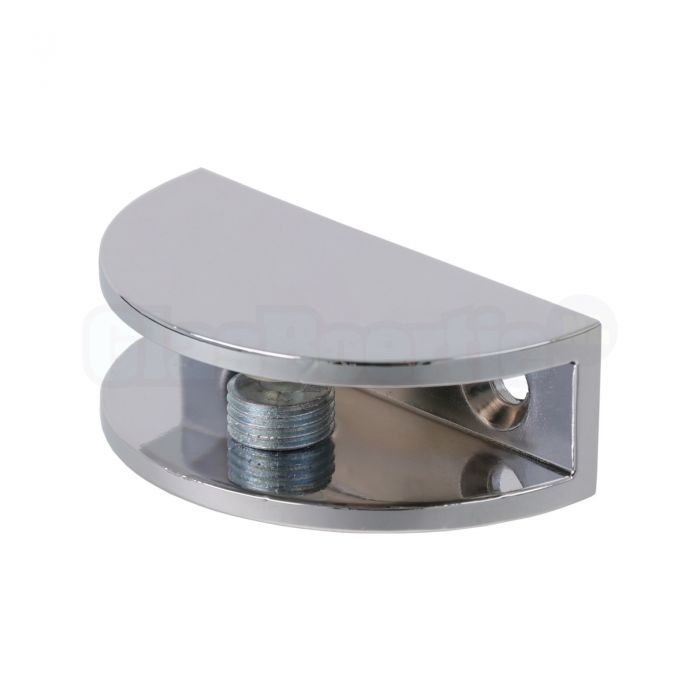

Glass support 50 x 16 x 27 mm, chrome

Art. no.
239925

Brand SISO, for glass thickness 4 - 8 mm, material Zamak

More information
€7.25
per piece
  • Buy 20 for €6.82 per piece each and save 6%
  • Buy 40 for €6.53 per piece each and save 10%
Delivery: 1-3 working days

This glass support is quite small in size and has no extra support at the bottom. This makes the support barely noticeable and the choice goes quickly to this model. But this support does have reasonable limitations with the maximum carrying weight and the maximum dimensions of the glass shelf. Check carefully whether this support meets your requirements. We also have this support with extra support at the bottom, making it more suitable for larger shelves.



Most important features of glass support 50 x 16 x 27 mm chrome:

tick-marks  Placement on the back of the glass plate or placement on both sides
tick-marks  For placement at the rear: glass shelf maximum 600 mm wide (60 cm), maximum 100 mm deep (10 cm), maximum carrying weight 7.5 kg. If 200 mm deep (20 cm), the maximum carrying weight is 3.75 kg.
tick-marks  Dimensions of glass support: 50 x 16 x 27 mm
tick-marks  Glass deduction because of material thickness support: - 3 mm per side where the support is mounted
tick-marks  Suitable for glass thickness: 4 / 5 / 6 / 8 mm
tick-marks  Hole for mounting screw on wall: 2 pcs. Ø 4 mm
tick-marks  Use preferably in combination with tempered glass
tick-marks  Finish: gloss chrome
tick-marks  Also available in stainless steel effect and matte chrome
tick-marks  Can be ordered per piece, the mentioned price is a piece price!



This glass support 50 x 16 x 27 mm chrome comes:

tick-marks  In a plastic bag
tick-marks  Including glass clamp screw with plastic cap
tick-marks  Without wall mounting materials (no screw and plug)



Points of attention:

tick-marks  Ensure that the glass support is mounted with the correct mounting materials
tick-marks  Place the supports on a solid surface / wall
tick-marks  When ordering your glass panel, pay attention to the thickness of the material of the clamp. You will have to deduct this 3 mm material thickness from the size of your glass plate
tick-marks  Properly distribute the position of the glass plate supports for optimum load capacity. Mount the two glass plate supports at a quarter of the way. Example: glass plate = 28 cm wide, then you mount the carriers at 28: 4 = 7 cm from the side, both from the left and from the right
tick-marks  The mentioned maximum dimensions and carrying weight are based on tempered glass 6 mm
tick-marks  For larger glass plates or a higher carrying weight, choose the clamps that have an extra support at the bottom or also place clamps on the side (and not just the back) of the glass plate

More Information
Art. no.239925
BrandSISO
SeriesSISO glass supports
Glass thickness in mm4, 5, 6, 8
Suitable types of glasstempered glass
MaterialZamak
Finishingglossy chrome
Expected delivery time1-3 working days
Scope of supplyper 1 piece
Unit of measurementper piece
Packed in abox
Warranty2 years
Shipping price Netherlands6,50
Shipping price Belgium12,75
Shipping price rest of EuropeSee the check-out page for actual pricing
