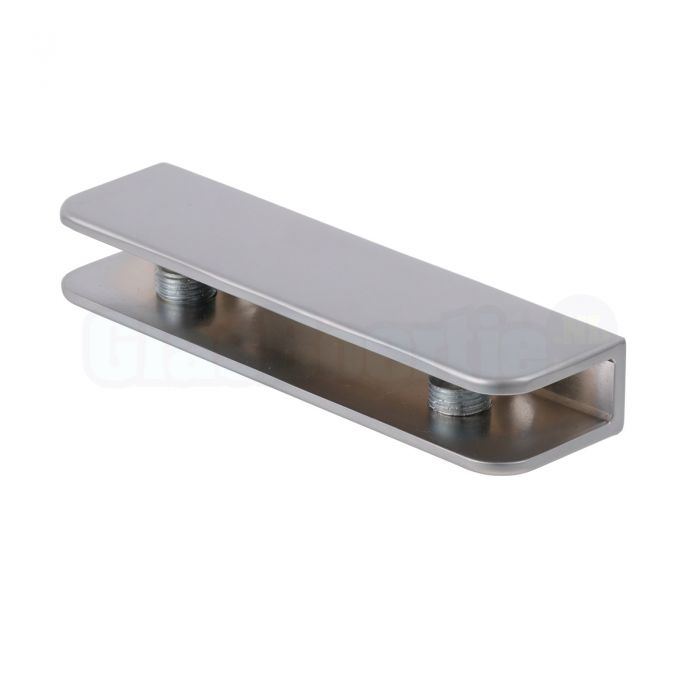

Glass support 100 x 16 x 27 mm, aluminum effect

Brand SISO, for glass thickness 4 - 8 mm, material Zamak

(more information)
Art. no.
239922
€14.50
per piece
Delivery: 1 - 3 working days
  • Buy 10 for €13.63 per piece each and save 6%
  • Buy 20 for €13.05 per piece each and save 10%
  • Free shipment from € 500,- (incl. VAT)
  • Pick-up in NL or delivery in NL and Flanders (exception of the Wadden Islands)
  • Relatively short delivery times
  • Pay with i.e. iDeal, Riverty, Billink, Bancontact, PayPal en Creditcard

This glass support does not have a support lip at the bottom but because of its width it can carry quite a bit of weight. This clamp is very suitable for wider shelves with a considerable weight. By placing multiple clamps you can increase the width of the glass shelf.



Most important characteristics of glass support 100 x 16 x 27 mm aluminum effect:

tick-marks  Placement on the back of the glass shelf or placement on both sides
tick-marks  For placement at the rear: glass shelf maximum 500 mm wide (30 cm), maximum 100 mm deep (10 cm), maximum carrying weight 30.00 kg. If 200 mm deep (20 cm), the maximum carrying weight is 15.00 kg.
tick-marks  Dimensions of glass support: 100 x 16 x 27 mm
tick-marks  Glass deduction i.v.m. material thickness clamp: - 3 mm
tick-marks  Suitable for glass thickness: 4 / 5 / 6 / 8 mm
tick-marks  Hole for mounting screw on wall: 2 pcs. Ø 4 mm
tick-marks  Use preferably in combination with tempered glass
tick-marks  Finish: aluminum effect
tick-marks  Also available in gloss chrome
tick-marks  Can be ordered per piece, the price mentioned is a piece price!



This glass plate support 100 x 16 x 27 mm comes aluminum effect:

tick-marks  In a bag
tick-marks  Including two glass clamp screws with plastic cap
tick-marks  Without wall mounting materials (no screw and plug)



Points of attention:

tick-marks  Ensure that the glass support is mounted with the correct mounting materials
tick-marks  Place the supports on a solid surface / wall
tick-marks  When ordering your glass panel, pay attention to the thickness of the material of the glass support. You will have to deduct this 3 mm material thickness from the size of your glass shelf
tick-marks  Properly distribute the position of the glass supports for optimum load capacity. Mount the two glass plate supports at a quarter of the way. Example: glass shelf = 48 cm wide, then you mount the supports at 48: 4 = 12 cm from the side, both from the left and from the right
tick-marks  The mentioned maximum dimensions and carrying weight are based on tempered glass 6 mm
tick-marks  For larger glass shelves or a higher carrying weight, choose the supports that have an extra support at the bottom or also place glass supports on the side (and not just the back) of the glass shelf

more information
Art. no. 239922
Brand SISO
Series SISO glass supports
Glass thickness in mm 4, 5, 6, 8
Suitable types of glass tempered glass
Material Zamak
Finishing standard aluminum
Placement glass support left and right of the glass
Expected delivery time 1 - 3 working days
Scope of supply per 1 piece
Unit of measurement per piece
Packaging bag
Warranty 2 years
Shipping price NL 6,50
Shipping price BE 12,75
Shipping price EU see the check-out page for actual pricing
