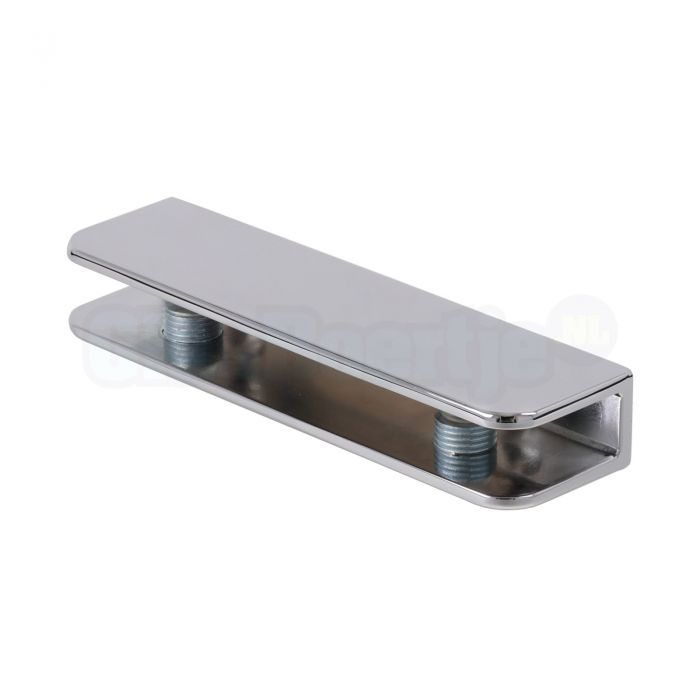

Glass support 100 x 16 x 27 mm, chrome
Brand SISO, for glass thickness 4 - 8 mm, material ZamakMore information
- Buy 10 for €12.46 per piece each and save 6%
- Buy 20 for €11.93 per piece each and save 10%
- Gratis verzending vanaf € 500,- Incl. BTW
- Afhalen in NL of leveren in NL en Vlaanderen (m.u.v. Waddeneilanden)
- Relatief korte levertijden
- Afrekenen met o.a. iDeal, AfterPay, Billink, Bancontact, PayPal, Creditcard of overboeking
This glass support does not have a support lip at the bottom but because of its width it can carry quite a bit of weight. This clamp is very suitable for wider shelves with a considerable weight. By placing multiple clamps you can increase the width of the glass shelf.
Most important characteristics of glass support 100 x 16 x 27 mm chrome:
Placement on the back of the glass shelf or placement on both sides
For placement at the rear: glass shelf maximum 500 mm wide (30 cm), maximum 100 mm deep (10 cm), maximum carrying weight 30.00 kg. If 200 mm deep (20 cm), the maximum carrying weight is 15.00 kg.
Dimensions of glass support: 100 x 16 x 27 mm
Glass deduction i.v.m. material thickness clamp: - 3 mm
Suitable for glass thickness: 4 / 5 / 6 / 8 mm
Hole for mounting screw on wall: 2 pcs. Ø 4 mm
Use preferably in combination with tempered glass
Finish: gloss chrome
Also available in aluminum effect
Can be ordered per piece, the price mentioned is a piece price!
This glass plate support 100 x 16 x 27 mm chrome comes:
In a bag
Including two glass clamp screws with plastic cap
Without wall mounting materials (no screw and plug)
Points of attention:
Ensure that the glass support is mounted with the correct mounting materials
Place the supports on a solid surface / wall
When ordering your glass panel, pay attention to the thickness of the material of the glass support. You will have to deduct this 3 mm material thickness from the size of your glass shelf
Properly distribute the position of the glass supports for optimum load capacity. Mount the two glass plate supports at a quarter of the way. Example: glass shelf = 48 cm wide, then you mount the supports at 48: 4 = 12 cm from the side, both from the left and from the right
The mentioned maximum dimensions and carrying weight are based on tempered glass 6 mm
For larger glass shelves or a higher carrying weight, choose the supports that have an extra support at the bottom or also place glass supports on the side (and not just the back) of the glass shelf
|Series||SISO glass supports|
|Glass thickness in mm||4, 5, 6, 8|
|Suitable types of glass||tempered glass|
|Expected delivery time||1-3 working days|
|Scope of supply||per 1 piece|
|Unit of measurement||per piece|
|Packed in a||bag|
|Shipping price Netherlands||6,50|
|Shipping price Belgium||12,75|
|Shipping price rest of Europe||See the check-out page for actual pricing|
