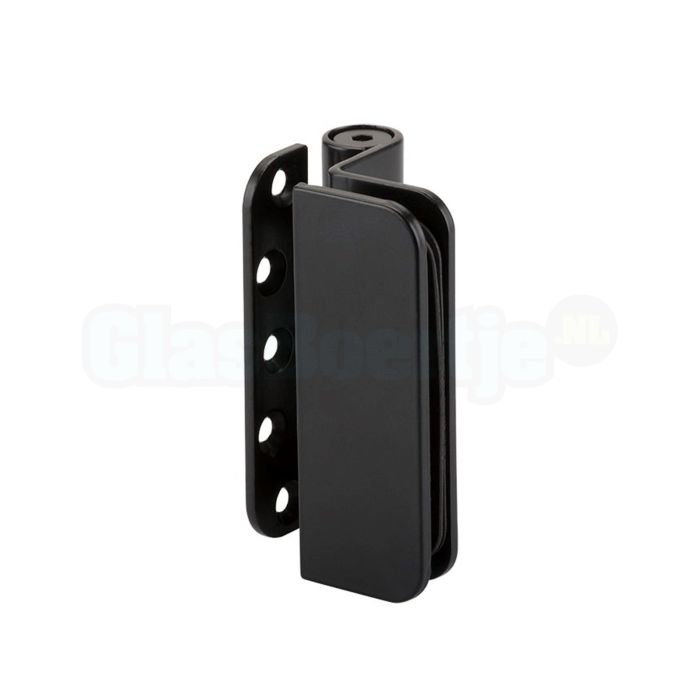

Single acting glass door hinge, matt black, 8-10 mm
Brand BSW, suitable for 8 and 10 mm glass, stainless steel, matt black finish, capacity 2 hinges: max. 80 kgMore information
- Gratis verzending vanaf € 500,- Incl. BTW
- Afhalen in NL of leveren in NL en Vlaanderen (m.u.v. Waddeneilanden)
- Relatief korte levertijden
- Afrekenen met o.a. iDeal, AfterPay, Billink, Bancontact, PayPal, Creditcard of overboeking
This BSW glass door hinge for 8-10 mm glass thickness (matt black) for a flush mounted glass door, single-acting is applicable in a frame with a rabbet. Maximum door weight per two hinges is 80 kg. Suitable socket head screws are included.
Glass door hinge (matt black) for a single acting door is sold per piece and the listed price is therefore a piece price. However, the specifications mentioned are based on the use of two hinges. This makes sense because a door with 1 hinge would not work...
Main features of single acting door hinge 8-10 mm (matt black):
Glass door hinge for single-acting glass door
Mounting in a door frame with a rabbet
Suitable for glass thickness: 8-10 mm
Maximum door weight: 80 kg (based on two hinges)
Maximum door width: 1200 mm
Fully stainless steel, matt black finish
Drilling holes required per hinge, in the glass: 2 pieces Ø 16 mm
Maximum turning point 5.2 Nm
Can be bought per 1 piece, the listed price is a piece price!
Single acting glass door hinge 8-10 mm (matt black) comes with:
One hinge, Stainless Steel material, matt black finished
Two socket head screws for clamping the hinge to the glass
Two silicone rings
Delivered in a box
Points of attention:
Use the correct screws for your situation (the mounting screws are not included)
Mount the hinges on the door, position the door in the right spot and draw the drill holes on the frame. Now remove the door, and drill the holes
Put the door back in the right position and screw it hand-tight on the frame, position it and then tighten it firmly
Always work calmly and with the correct tools
Preferably use a long level or a laser water level to properly position the door
Up to a door height of 2000 mm (200 cm) two hinges are used. If the door is higher, three hinges are used. You will get a better carrying capacity and the pressure when opening/closing the door is better distributed over three hinges
Make sure you use the correct glass deduction when ordering the glass door. Ask us for advice if you need this
NEVER put the glass door directly on a hard surface (i.e. the floor), always place something in between such as a wooden plank, blanket, rug etc. If glass is put on a hard surface, the risk of damage is very high. This also applies to contact with the wall and other hard surfaces. Always protect the glass, it is and remains a vulnerable product
|Suitable for||stompe deur|
|Mounting of ... to ....||Glass door to normal wall (non-glas wall)|
|Suitable types of glass||installation glass (tempered glass incl. 5 holes and edge finishing)|
|Glass thickness in mm||8, 10|
|Max door width (mm)||1200|
|Capacity 2 pcs. (KG)||80|
|Adjustable zero position||No|
|Material||Stainless Steel (AISI 304)|
|Finishing||matt black (RAL9005)|
|Expected delivery time||4-7 working days|
|Scope of supply||per 1 piece|
|Unit of measurement||per piece|
|Packed in a||box|
|Shipping price Netherlands||11,50|
|Shipping price Belgium||14,00|
|Shipping price rest of Europe||See the check-out page for actual pricing|
|Pick-up possible?||Yes, Pick-up is possible in:, Oosterhout (Noord-Brabant), 's-Hertogenbosch|
