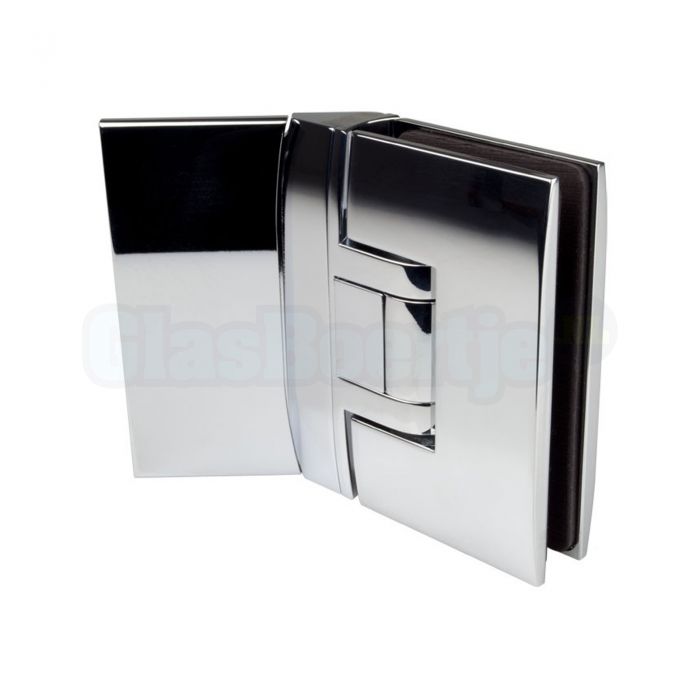

P+S Pontere 8414 showerdoor hinge (wall-glass), chrome

Suitable for 8 and 10 mm glass thickness, Brass, polished chrome, capacity 2 hinges: max. 50 kg

(more information)

Art. no.

200309

€324.50

per piece

Delivery: 2 - 3 working weeks

The hinge is mounted on:

8 mm thick glass

10 mm thick glass

Qty

GlasBoertje.nl is aangesloten bij Webshop Keurmerk 1807 beoordelingen bij Kiyoh

9.3

Free shipment from € 500,- (incl. VAT)
Pick-up in NL or delivery in NL and Flanders (exception of the Wadden Islands)
Relatively short delivery times
Pay with i.e. iDeal, Riverty, Billink, Bancontact, PayPal en Creditcard

Details

This showerdoor hinge from Pauli + Sohn is a quality product from Germany and comes from the Pontere series. This series is very complete and has a suitable glass hinge for almost every situation. The Pontere series is suitable for larger and heavier shower doors. This shower door hinge is intended to be placed on a wall where the door is mounted at 135 degrees.

If it is installed with sealing profile 8862KU0, it can turn both in and out. When seal 8857KU0 is used, the door can only turn outwards and cannot turn inwards.

This hinge is sold per piece and the mentioned price is a 1 piece price. However, the specifications listed are based on the use of two hinges. Also logical because a door with 1 hinge would not work.

Main features Pauli + Sohn Pontere 8414MS7 showerdoor hinge (wall-glass) chrome:

Showerdoor hinge for mounting a glass shower door on a fixed wall, mounting at 135 degrees
Double acting when installed with sealing profile 8862KU0; Rotates 90 degrees inward and 90 degrees outward (total 180 degrees)
Single acting when installed with sealing profile 8857KU0; Rotates only outwards 90 degrees
Adjustable zero position; self-closing in the last centimeters towards the zero position
Mounting plate equipped with two slotted holes and one fixation hole for optimal set possibility (including cover)
  Brass material, chrome finish
  Suitable for glass thickness: 8 and 10 mm (we recommend using 8 mm for a shower door)
Max. size showerdoor with 8 mm glass: 1000 x 2000 mm
Max. size showerdoor with 10 mm glass: 1000 x 2000 mm
Pay attention! The cut-out as seen in the image is based on 8 mm glass thickness
  To be bought per piece, the mentioned price is the price for 1 piece! And not for the pair!

Pauli + Sohn Flamea 8414MS7 showerdoor hinge (wall-glass) chrome comes with:

  One showerdoor hinge, finishing polished chrome
Two socket head screws for clamping the glass door to the hinge
  One cover plate to place over the mounting screws
  Two silicone stickers to secure the two cover plates
  One Allen key for adjusting the zero position
  Assembly gaskets that correspond to the glass thickness you specified
  Mounting instructions

Points of attention:

  Make sure you use the correct glass deduction when ordering the glass door. For example, if you install a sealing profile, you need a different glass deduction than if you are going to install a door without a seal. If you cannot find a solution, ask us for advice
  Read the mounting manual in advance. It contains useful tips
  Two hinges are always used for a showerdoor up to a height of 2000 mm (200 cm). If the door is higher then 2000 mm, three hinges are required. You then get a better load-bearing capacity and the pressure when opening / closing the door is better distributed over three hinges
  Use the correct wall mounting screws and plugs for your situation. Because of various situations the screws do NOT come with the hinge by default. Choose the correct mounting materials for your situation!
Wall mounting screws that are too small can break the hinge. Pay attention to this!!
  Mount the hinge on the glass door, position the glass door in the correct position and draw the drill holes of the slotted holes on the wall. Now remove the glass door, drill the holes of the slotted holes and place the correct plugs.
  Put the glass door back in the correct position again and screw the wall mounting screws on the wall, position the door (read manual!) and then tighten the wall mounting screws
  Finally, drill the hole for the fixation hole. This is to fixate the hing in the definite position
  Set the zero position correctly (see also manual)
  Work with precision, take your time, use the right tools and ask someone to help you when you need to move and mount the glass door
  Preferably use a long water level or a laser water level to properly position the glass panel
  NEVER let the glass door rest on the floor, always place something in between it such as a wooden slat, blanket etc. If glass is put on a hard surface, the risk of damage is very high. This also applies to any contact with the wall and other hard surfaces. Protect the glass at all times, it's a vulnerable material !

more information

more information
Art. no.	200309
Brand	Pauli + Sohn
Series	Pontere
Application	showerdoor
Mounting of ...	glass door to normal wall (non-glas wall)
Degrees	135 °
Suitable types of glass	installation glass (tempered glass incl. 5 holes and edge finishing)
Glass thickness in mm	8, 10
Adjustable zero position	Yes
Capacity of 2 pieces (KG)	50
Max. size showerdoor with 8 mm glass	1000 x 2000 mm (w x h)
Max. size showerdoor with 10 mm glass	1000 x 2000 mm (w x h)
Style	square
Material	Brass
Finishing	glossy chrome
Expected delivery time	2 - 3 working weeks
Scope of supply	per 1 piece
Unit of measurement	per piece
Packaging	box
Warranty	3 years
Shipping price NL	13,50
Shipping price BE	17,50
Shipping price EU	see the check-out page for actual pricing
