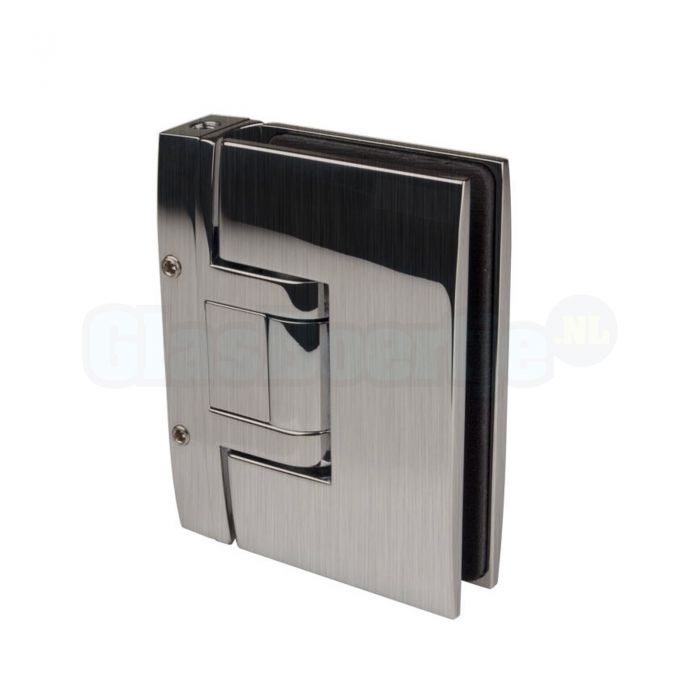

P+S Pontere 8404 showerdoor hinge (wall-glass), Stainless Steel look
Suitable for 8 and 10 mm glass thickness, Zamac, Stainless Steel look, capacity 2 hinges: max. 35 kgMore information
- Gratis verzending vanaf € 500,- Incl. BTW
- Afhalen in NL of leveren in NL en Vlaanderen (m.u.v. Waddeneilanden)
- Relatief korte levertijden
- Afrekenen met o.a. iDeal, AfterPay, Billink, Bancontact, PayPal, Creditcard of overboeking
This showerdoor hinge from Pauli + Sohn is a quality product from Germany and comes from the Pontere series. This series is very complete and has a suitable glass hinge for almost every situation. The Pontere series is suitable for larger and heavier shower doors. However, this specific hinge has size limitations due to the small mounting plate. If you need to mount a larger door, it is wise to choose a different hinge with a larger mounting plate on the wall.
This hinge is sold per piece and the mentioned price is a 1 piece price. However, the specifications listed are based on the use of two hinges. Also logical because a door with 1 hinge would not work.
Main features Pauli + Sohn Pontere 8404 MSPVD22 showerdoor hinge wall-glass (Stainless Steel look):
Showerdoor hinge for mounting a glass shower door on a fixed wall, mounting at 90 degrees
Double acting; Rotates 90 degrees inward and 90 degrees outward (total 180 degrees)
Adjustable zero position; self-closing in the last centimeters towards the zero position
Invisible mounting part with two holes; you mount this on the wall with screws. You then clamp the hinge to this mounting part with 4 socket head screws
When mounting, the hinge can be adjusted 7 mm in height
Zamac material, Stainless Steel look finish
Suitable for glass thickness: 8 / 10 mm (we recommend using 8 mm for a shower door)
Maximum door weight: 35 kg (with two hinges)
Max. size showerdoor with 8 mm glass: 700 x 2000 mm
Max. size showerdoor with 10 mm glass: 700 x 2000 mm
Pay attention! The cut-out as seen in the image is based on 8 mm glass thickness
To be bought per piece, the mentioned price is the price for 1 piece! And not for the pair!
Pauli + Sohn Pontere 8404 MSPVD22 showerdoor hinge wall-glass (Stainless Steel look) comes with:
One showerdoor hinge, finishing Stainless Steel look
One brass mounting block for mounting on the wall and connecting the hinge on
Two socket head screws for clamping the glass door to the hinge
One Allen key for adjusting the zero position
Assembly gaskets that correspond to the glass thickness you specified
Points of attention:
Make sure you use the correct glass deduction when ordering the glass door. For example, if you install a sealing profile, you need a different glass deduction than if you are going to install a door without a seal. If you cannot find a solution, ask us for advice
Read the mounting manual in advance. It contains useful tips
Two hinges are always used for a showerdoor up to a height of 2000 mm (200 cm). If the door is higher then 2000 mm, three hinges are required. You then get a better load-bearing capacity and the pressure when opening / closing the door is better distributed over three hinges
Use the correct wall mounting screws and plugs for your situation. Because of various situations the screws do NOT come with the hinge by default. Choose the correct mounting materials for your situation!
Wall mounting screws that are too small can break the hinge. Pay attention to this!!
The mounting block on which the hinge is clamped is made of brass. Handle this with some caution when mounting on the wall and when clamping the hinge to this block with the socket head screws
Work with precision, take your time, use the right tools and ask someone to help you when you need to move and mount the glass door
Preferably use a long water level or a laser water level to properly position the glass panel
NEVER let the glass door rest on the floor, always place something in between it such as a wooden slat, blanket etc. If glass is put on a hard surface, the risk of damage is very high. This also applies to any contact with the wall and other hard surfaces. Protect the glass at all times, it's a vulnerable material !
|Brand||Pauli + Sohn|
|Mounting of ... to ....||Glass door to normal wall (non-glas wall)|
|Suitable types of glass||installation glass (tempered glass incl. 5 holes and edge finishing)|
|Glass thickness in mm||8, 10|
|Adjustable zero position||Yes|
|Capacity of 2 pieces (KG)||35|
|Max. size showerdoor with 8 mm glass||700 x 2000 mm (w x h)|
|Max. size showerdoor with 10 mm glass||700 x 2000 mm (w x h)|
|Finishing||Stainless Steel look|
|Expected delivery time||1-3 working days|
|Scope of supply||per 1 piece|
|Unit of measurement||per piece|
|Packed in a||box|
|Shipping price Netherlands||11,50|
|Shipping price Belgium||14,00|
|Shipping price rest of Europe||See the check-out page for actual pricing|
