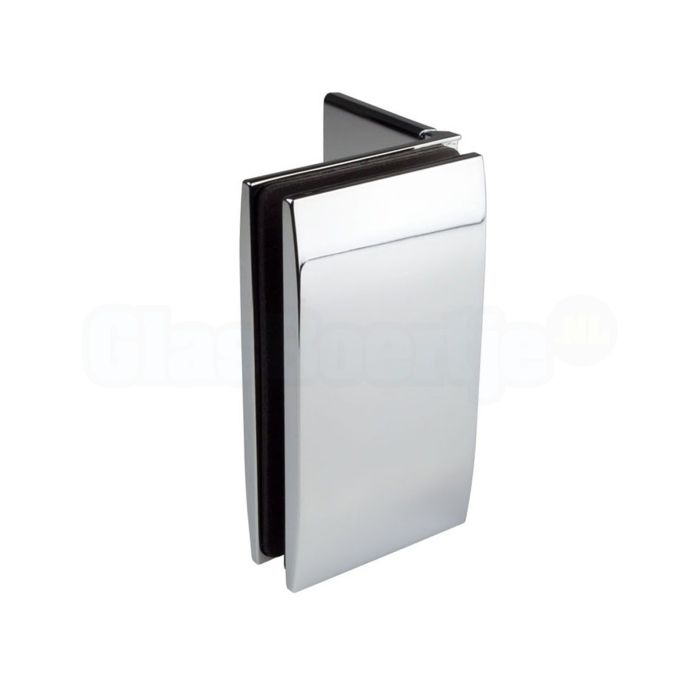

P+S Pontere 8418 shower wall clamp (wall-glass), chrome

Art. no.
200345

Glass-wall connection, suitable for 8 and 10 mm glass thickness, material: Brass, polished chrome

More information
€90.25
per piece
Delivery: 1-3 working days

Main features P+S Pontere 8418MS7 chrome shower wall clamp (glass-glass):

tick-marks  Glass clamp for mounting a glass shower enclosure on a glass wall, mounting at 90 degrees
tick-marks  Mounting plate equipped with oblong holes and fixation hole for optimal set possibility (including cover)
tick-marks  Suitable for glass thickness: 8 / 10 mm
tick-marks  Brand: Pauli + Sohn
tick-marks  Material: Brass
tick-marks  Polished chrome finish
tick-marks  Watch out! The sparing as seen in the image is based on 8 mm of glass thickness
tick-marks  To order per piece, the listed price is the price per piece!



P+S Pontere 8418MS7 chrome shower wall clamp (glass-glass) comes with:

tick-marks  One glass clamp, material Brass, finishing polished chrome
tick-marks  One bus screw for clamping the glass to the clamp to the glass
tick-marks  One socket screw for clamping the glass to the clamp to the glass
tick-marks  One cover to place over the screws
tick-marks  Two silicone stickers to secure the cover
tick-marks  Assembly manual



Points of attention:

tick-marks  Read the assembly manual in advance! It contains useful tips
tick-marks  Mounting plate provided with slotted holes and fixing hole for optimal set of possibilities (incl. Cover)
tick-marks  Use the right screws and plugs for your situation (the screws do NOT come with the clamp by default). Screws that are too small can break the glass panel. Pay attention to this!!
tick-marks  Mount the glass clamp on the glass plate, position the glass plate in the right place and draw the drill holes of the slotted holes on the wall. Now remove the glass plate, drill the holes of the slotted holes and place the correct plugs. Put the glass plate back in the right position and screw it hand-fast on the wall, position it (read manual!) and then tighten the plate against the wall
tick-marks  Work with policies and the right tools
tick-marks  Preferably use a long water level or a laser water level to properly position the glass panel
tick-marks  Make sure you use the correct glass deduction when ordering the glass wall. Ask us for advice if you don't come out
tick-marks  NEVER let the glass panel rest on the floor, always place something in between it such as a wooden slat, blanket etc. If glass is put on a hard surface, the risk of damage is very high. This also applies to contact with the wall and other hard surfaces. Protect the glass, it is and remains a vulnerable product

More Information
Art. no.200345
BrandPauli + Sohn
SeriesPontere
Mounting of ... to ....Glass wall to normal wall (non-glas wall)
Degrees90 °
Suitable types of glassinstallation glass (tempered glass incl. 5 holes and edge finishing)
Glass thickness in mm8, 10
Stylesquare
MaterialBrass
Finishingglossy chrome
Expected delivery time1-3 working days
Scope of supplyper 1 piece
Unit of measurementper piece
Packed in abox
Warranty3 years
Shipping price Netherlands11,50
Shipping price Belgium14,00
Shipping price rest of EuropeSee the check-out page for actual pricing
Pick-up possible? (without costs)Yes, Pick-up is possible in:, Oosterhout (Noord-Brabant), 's-Hertogenbosch
