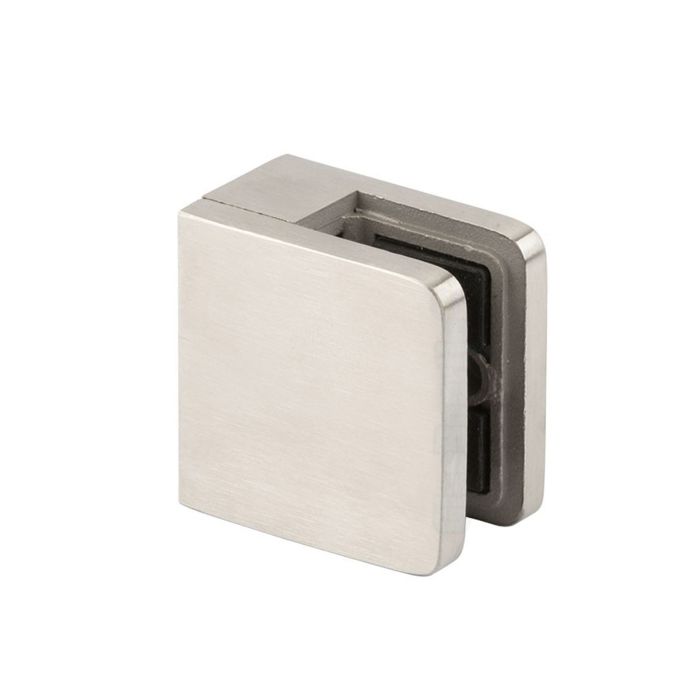

Glass clamp type F, flat mounting for 6 mm glass (AISI316)

Delivery: 1-3 working days
Art. no.
212001

Stainless steel glass clamp for outdoor use, flat mounting, for glass thickness 6 mm, AISI316

More information
€24.25
per piece
  • Gratis verzending vanaf € 500,- Incl. BTW
  • Afhalen in NL of leveren in NL en Vlaanderen (m.u.v. Waddeneilanden)
  • Relatief korte levertijden
  • Afrekenen met o.a. iDeal, AfterPay, Billink, Bancontact, PayPal, Creditcard of overboeking

Glass clamp "type F" 6 mm is a stainless steel glass clamp of AISI 316 that can be used outside. You can use this clamp perfectly for mounting glass panels between uprights to make a windbreak or balustrade, for example. Optionally, a locking pin is supplied. You can only use this locking pin if you order a drilling hole in the glass when ordering the glass.

No separate recesses in the glass are necessary with this glass clamp. This leaves a gap between the glass and the upright of approximately 16 - 19 mm. If you are looking for a clamp for a shower enclosure, we advise you to order a shower enclosure clamp and not choose this clamp.



Main features of glass clamp Type F, stainless steel (AISI316) 6 mm:

tick-marks  Glass clamp for mounting tempered glass
tick-marks  Mounting on a flat surface
tick-marks  Suitable for 6 mm tempered glass
tick-marks  Suitable for outdoor use
tick-marks  Fully stainless steel, stainless steel brushed finish
tick-marks  Optional securing pin: drill hole in glass per pin: Ø 12 mm
tick-marks  Can be ordered per piece, the mentioned price is one piece price!



Glass clamp Type F, stainless steel (AISI316) 6 mm comes with:

tick-marks  One glass clamp
tick-marks  Two socket head screws for clamping the clamp to the glass
tick-marks  One security pin



Points of attention:

tick-marks  Use the correct screws for your situation (these are not supplied with the clamp) screw
tick-marks  Open the clamp, mount the clamp on the upright / wall, position the glass in the correct place and clamp it with the Allen screws (use the correct thickness mounting gasket)
tick-marks  Work wisely and with the right tools
tick-marks  Preferably use a long spirit level or a laser spirit level for proper positioning of the clamps
tick-marks  Make sure you use the correct glass deduction when ordering the glass panel. If you need help, please ask us for advice
tick-marks  Make sure that when ordering the glass you indicate whether you are going to use the securing pin. You cannot drill into the glass afterwards
tick-marks  NEVER let glass rest on the floor, always place something in between such as a wooden slat, blanket, carpet, etc. If glass is placed on a hard surface, the risk of damage is very high. This also applies to contact with the wall and other hard surfaces. Protect the glass, it is and will remain a vulnerable product

More Information
Art. no.212001
BrandPT
Mounting of ... to ....Glass wall to normal wall (non-glas wall)
Degrees90 °
Clamp for glass thickness6 mm
Suitable types of glasstempered glass, installation glass (tempered glass incl. 5 holes and edge finishing)
Glass thickness in mm6
Stylesquare
MaterialStainless Steel (AISI 316)
Finishingbrushed stainless steel
Expected delivery time1-3 working days
Scope of supplyper 1 piece
Unit of measurementper piece
Packed in abox
Warranty2 years
Shipping price Netherlands11,50
Shipping price Belgium14,00
Shipping price rest of EuropeSee the check-out page for actual pricing
Pick-up possible?Yes, Pick-up is possible in:, Oosterhout (Noord-Brabant), 's-Hertogenbosch, (These locations are only collection points, no production takes place here! Always place orders on the website)
