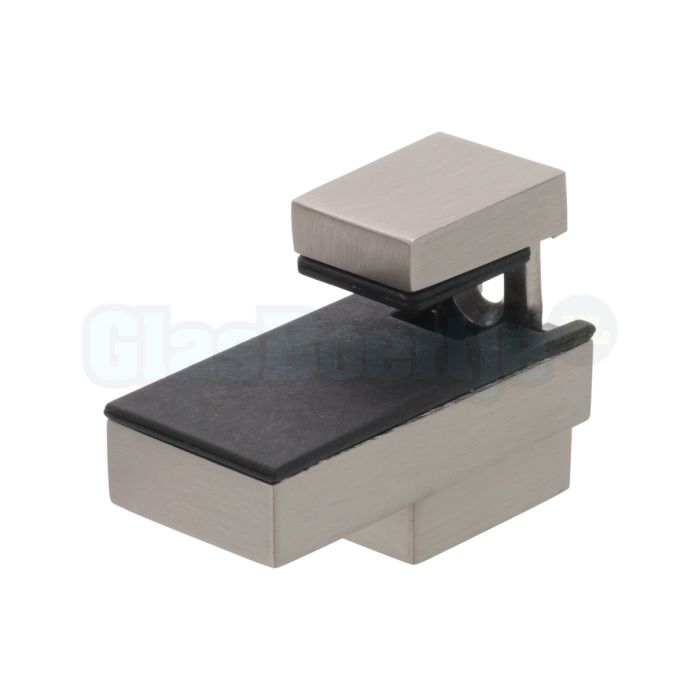

Glass support adjustable square (small), stainless steel look

Art. no.

Brand, for glass thickness 5 - 15 mm

More information
per piece
  • Buy 10 for €9.17 per piece each and save 6%
  • Buy 20 for €8.78 per piece each and save 10%
Delivery: 1-3 working days

This glass support has an extra support at the bottom. Because of the relative small size of this glass support and the extra support on the bottom the maximum carrying weight and the maximum dimensions of the glass shelf are quite reasonable. Check carefully whether this glass support meets your requirements.


Most important features of the glass support adjustable square (small), stainless steel look:

tick-marks  Placement on the back of the glass shelf
tick-marks  Dimensions of glass support: 25 x 35-45 x 50 mm (W x H x D): the height size is variable due to the clamping function. This makes the clamp higher if you would place a thicker glass plate in it
tick-marks  Glass deduction because of material thickness support: - 5 mm per side where the support is mounted
tick-marks  Suitable for glass thickness: 5, 6, 8, 10, 12 and 15 mm
tick-marks  Hole for mounting screw on wall: Ø 4 mm
tick-marks  Use preferably in combination with tempered glass
tick-marks  Finish: Stainless Steel look
tick-marks  Also available in chrome
tick-marks  Can be ordered per piece, the mentioned price is a piece price!


This glass support adjustable square (small), stainless steel look comes:

tick-marks  In a bag
tick-marks  Without wall mounting materials (no screws and plugs)


Points of attention:

tick-marks  Ensure that the glass support is mounted with the correct mounting materials
tick-marks  Place the supports on a solid surface / wall
tick-marks  When ordering your glass panel, pay attention to the thickness of the material of the clamp. You will have to deduct this 5 mm material thickness from the size of your glass shelf
tick-marks Properly distribute the position of the glass plate supports for optimum load capacity. Mount the two glass supports at a quarter of the way. Example: glass shelf = 60 cm wide, then you mount the supports at 60: 4 = 15 cm from the side, both from the left and from the right
tick-marks  The mentioned maximum dimensions and carrying weight are based on tempered glass 6 mm

More Information
Art. no.207306
Glass thickness in mm5, 6, 8, 10, 12, 15
Suitable types of glasstempered glass
FinishingStainless Steel look
Expected delivery time1-3 working days
Scope of supplyper 1 piece
Unit of measurementper piece
Packed in abag
Warranty2 years
Shipping price Netherlands9,25
Shipping price Belgium12,75
Shipping price rest of EuropeSee the check-out page for actual pricing
Pick-up possible? (without costs)Yes, Pick-up is possible in:, Oosterhout (Noord-Brabant), 's-Hertogenbosch
