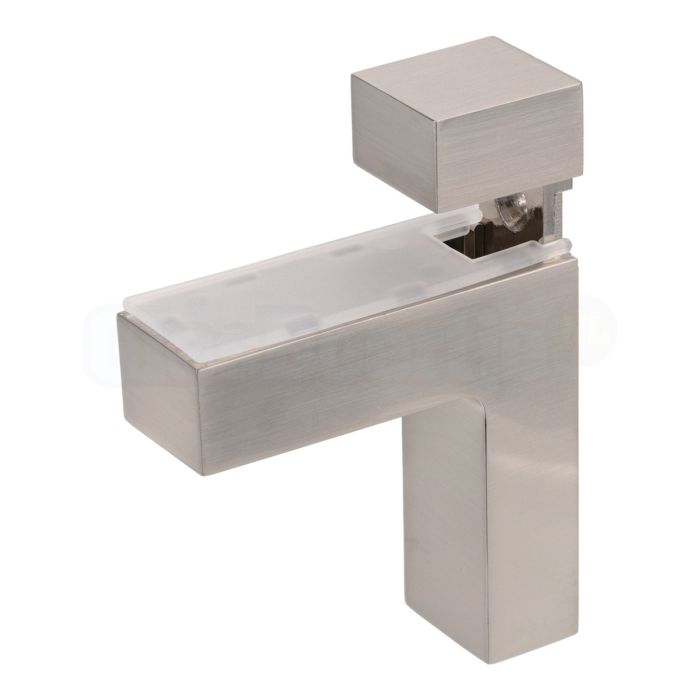

Glass support adjustable square (large), stainless steel look

Art. no.
207302

Brand GlasBoertje.nl, for glass thickness 5 - 25 mm

More information
€12.75
per piece
  • Buy 10 for €11.99 per piece each and save 6%
  • Buy 20 for €11.48 per piece each and save 10%
Delivery: 1-3 working days

This glass plate support is the largest in size and can clamp glass thicknesses of 5 to 25 mm because of its adjustable clamp. Due to the relatively large contact surface on the wall, the support also provides a considerable load-bearing capacity.



Most important features of the glass support adjustable square (large), stainless steel look:

tick-marks  Placement on the back of the glass shelf
tick-marks  Dimensions of glass support: 24 x 83-110 x 64 mm (W x H x D): the height size is variable due to the clamping function. This makes the clamp higher if you would place a thicker glass plate in it
tick-marks  Glass deduction because of material thickness support: - 5 mm per side where the support is mounted
tick-marks  Suitable for glass thickness: 5, 6, 8, 10, 12, 15, 19 and 25 mm
tick-marks  Hole for mounting screw on wall: Ø 4 mm
tick-marks  Use preferably in combination with tempered glass
tick-marks  Finish: Stainless Steel look
tick-marks  Also available in chrome
tick-marks  Can be ordered per piece, the mentioned price is a piece price!



This glass support adjustable square (large), stainless steel look comes:

tick-marks  In a bag
tick-marks  Without wall mounting materials (no screws and plugs)



Points of attention:

tick-marks  Ensure that the glass support is mounted with the correct mounting materials
tick-marks  Place the supports on a solid surface / wall
tick-marks  When ordering your glass panel, pay attention to the thickness of the material of the clamp. You will have to deduct this 5 mm material thickness from the size of your glass shelf
tick-marks Properly distribute the position of the glass plate supports for optimum load capacity. Mount the two glass supports at a quarter of the way. Example: glass shelf = 60 cm wide, then you mount the supports at 60: 4 = 15 cm from the side, both from the left and from the right
tick-marks  The mentioned maximum dimensions and carrying weight are based on tempered glass 6 mm

More Information
Art. no.207302
BrandGlasBoertje
Glass thickness in mm4, 5, 6, 8, 10, 12, 15, 19, 25
Suitable types of glasstempered glass
FinishingStainless Steel look
Expected delivery time1-3 working days
Scope of supplyper 1 piece
Unit of measurementper piece
Packed in abag
Warranty2 years
Shipping price Netherlands9,25
Shipping price Belgium12,75
Shipping price rest of EuropeSee the check-out page for actual pricing
Pick-up possible? (without costs)Yes, Pick-up is possible in:, Oosterhout (Noord-Brabant), 's-Hertogenbosch
