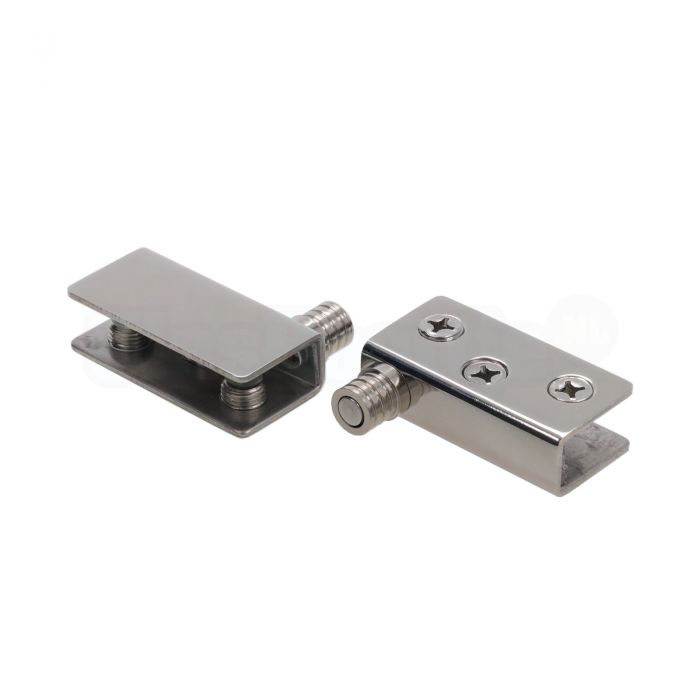

Glass pivot hinge set for 8 mm glass, polished sst (KS02)

Brand SISO, for tempered glass 8 mm, basic material is stainless steel, polished finish (looks like chrome finish)

(More information)
Art. no.
per pair
Delivery: 1 - 3 working days
  • Free shipment from € 500,- (incl. VAT)
  • Pick-up in NL or delivery in NL and Flanders (exception of the Wadden Islands)
  • Relatively short delivery times
  • Pay with i.e. iDeal, Riverty, Billink, Bancontact, PayPal en Creditcard

This pivot hinge set is from the brand SISO and can be used as a glass door hinge for showcases and furniture. With this pivot hinge you don´t need a glass recess because you slide the glass door into the hinge and secure it with clamping screws.

But be aware!! These pivot hinges do not turn on the side of the cupboard but on the bottom and top. For this you will need to drill a pivot point in your cupboard or display case. The pivot point are also supplied with the hinges, as a complete set, including the necessary gaskets. This way you always have a fitting set.

Choose your pivot hinge set carefully; pay attention to the glass thickness, finish of the material and how far the pivot point is out of the way (and therefore also how far the glass plate turns into the cupboard at the pivot point!). Preferably use tempered glass with the rotating hinges.


Main features of pivot hinge set KS02 polished stainless steel:

tick-marks  Pivot hinge set for glass doors
tick-marks  Basic material: stainless steel
tick-marks  Finishing: polished stainless steel (looks like gloss chrome finished)
tick-marks  Suitable for glass thickness 8 mm
tick-marks  Size of hinge: 52 x 26 x 16 mm
tick-marks  Drill hole pivot Ø 10 mm, pivot shaft Ø 7 mm
tick-marks  Edge height pivot point: 3 mm
tick-marks  Use preferably in combination with tempered glass
tick-marks  Use a glass deduction to get the correct glass size! (minimum required: dimension height -10 mm, dimension width -6 mm)
tick-marks  Can be ordered per set, the price stated is a set price!


This pivot hinge set KS02 polished stainless steel comes with:

tick-marks  One pivot hinge for top
tick-marks  One pivot hinge for bottom
tick-marks  Two pivot points
tick-marks  Two gaskets for in the hinge
tick-marks  Packed in a plastic bag


Points of attention:

tick-marks  Choose the pivot hinge set that fits the required glass thickness
tick-marks  Due to a shifted pivot point, the glass on the hinge side will turn a little bit inwards into the cupboard (between the side wall of the cupboard and pivot point). Take a good look at whether this works because of the presence of shelves or other obstacles
tick-marks  Think carefully about the correct glass deduction. Because the pivot shoe has a certain material thickness and the pivot also has a raised edge, you will have to take a good look at this. We have a clear technical drawing

More information
Art. no. 240005
Brand SISO
Series SISO pivot hinges
Suitable types of glass tempered glass
Glass thickness in mm 8
Style square
Material Stainless Steel (AISI 304)
Finishing polished Stainless Steel
Expected delivery time 1 - 3 working days
Scope of supply by the pair (2 pieces)
Unit of measurement per pair
Packaging bag
Warranty 2 years
Shipping price Netherlands 6,50
Shipping price Belgium 12,75
Shipping price rest of Europe See the check-out page for actual pricing
