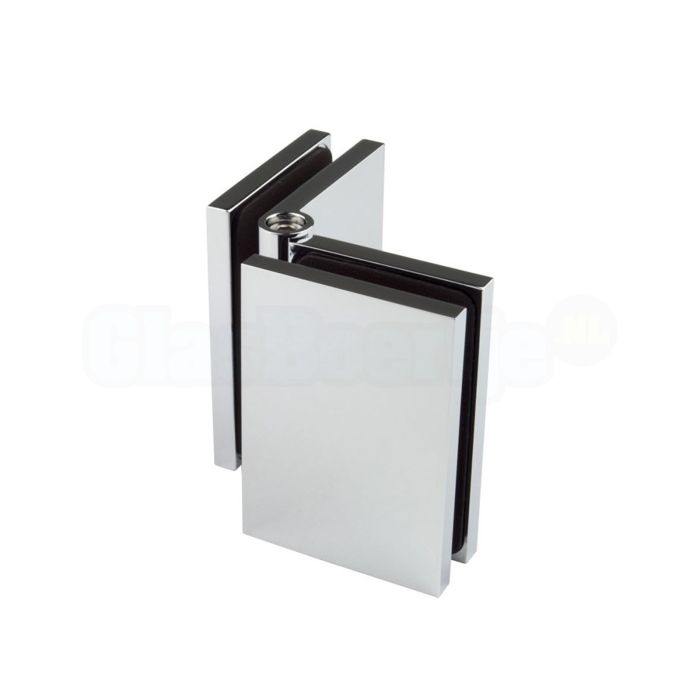

Flamea shower glass clamp 80º-180º, glass-glass, chrome (8175)
Glass-glass connection 80°-180°, suitable for 6/8/10 mm glass thickness, material: Zamac, polished chromeMore information
- Gratis verzending vanaf € 500,- (incl. BTW)
- Afhalen in NL of leveren in NL en Vlaanderen (m.u.v. Waddeneilanden)
- Relatief korte levertijden
- Betalen met o.a. iDeal, Riverty, Billink, Bancontact, PayPal en Creditcard
Features Pauli+Sohn Flamea shower glass clamp 80º-180º, glass-glass, chrome (8175ZN5):
Shower glass clamp for mounting a glass shower enclosure on a glass wall, mounting adjustable between 80 and 180 degrees
Suitable for glass thickness: 6, 8 and 10 mm (we advise to always use a minimum glass thickness of 8 mm for a shower enclosure)
Material Zamak, chrome finish
This shower glass clamp requires a hole or recess in each piece of the glass. See the technical image for specifications
This shower glass clamp may require additional edge finishing on the glass, depending on the angle at which the clamp is mounted on the glass panels
For shower walls / enclosures that are mounted with a glass clamp, use installation glass (that is tempered glass with holes / recesses to be able to mount the clamp on to the glass)
This product can be ordered by 1 piece, the mentioned price is the price per piece!
Pauli+Sohn Flamea shower glass clamp 80º-180º, glass-glass, chrome (8175ZN5) comes with:
One shower glass clamp
Two socket flat head screws for mounting the glass clamp on to the glass
Mounting gaskets that belongs to the glass thickness you specified
Points of attention:
Read the installation guide in advance! It contains useful tips
This clamp requires specific holes or recesses in the glass. Without these holes or recesses you cannot use this clamp
If you set the clamp at a certain angle, you will also have to have that side of the glass slanted/mitred. See the installation manual for the details of which glass reduction applies to the different angles of edge finishing
Take your time, work with discretion and use the correct tools
Preferably use a long water level or a laser water level to properly position the glass panel
We advise you to keep a clearance of 3 mm between the glass and the wall and between the glass and the floor. This way you can seal it neatly waterproof with silicone sealant. Please remember that you order the glass wall 3 mm narrower and/or less high
Make sure the floor and wall are level. If these are not level, this can result in a crooked gap between the glass and the wall/floor. You than may have to order the glass in a different shape to fit correctly
NEVER let the wall rest on the floor, always place something in between such as a wooden slat, blanket, rug, etc. If glass is placed on a hard surface, the risk of damage is very high. This also applies to contact with the wall and other hard surfaces. Protect the glass at all times, it is and remains a vulnerable product
ALWAYS use the correct Personal Protection Equipment when you move and/or install the glass
|Brand||Pauli + Sohn|
|Mounting of ... to ....||Glass wall to glass wall|
|Degrees||80 ° - 180 °|
|Suitable types of glass||installation glass (tempered glass incl. 5 holes and edge finishing)|
|Glass thickness in mm||6, 8, 10|
|Expected delivery time||2-3 working weeks|
|Scope of supply||per 1 piece|
|Unit of measurement||per piece|
|Packed in a||box|
|Shipping price Netherlands||11,50|
|Shipping price Belgium||14,00|
|Shipping price rest of Europe||See the check-out page for actual pricing|
|Pick-up possible?||Yes, Pick-up is possible in:, Oosterhout (Noord-Brabant), 's-Hertogenbosch|
