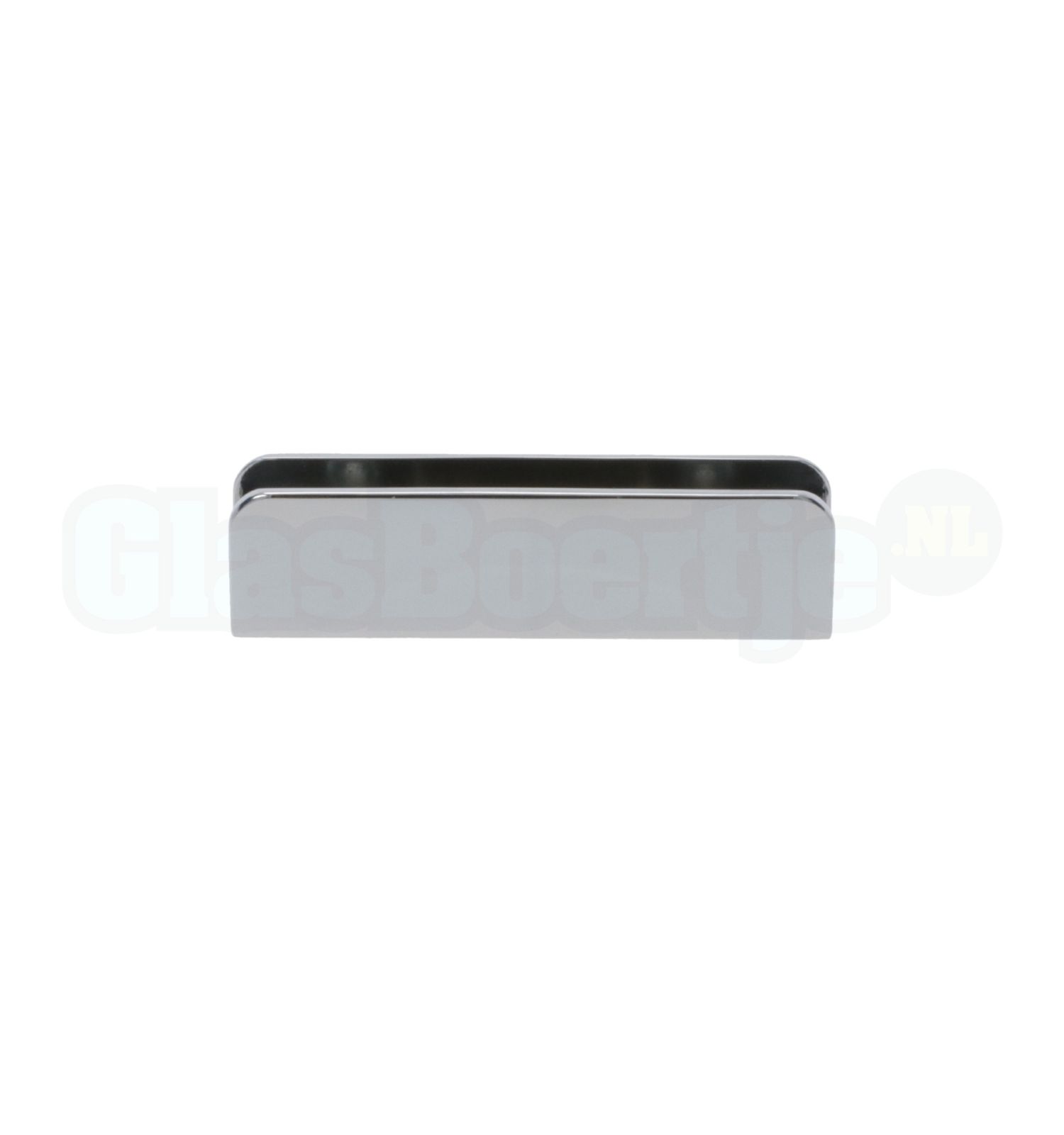

Glass support 100 x 16 x 27 mm, chrome

Brand SISO, for glass thickness 4 - 8 mm, material Zamak

(more information)
Art. no.
239921
€17.10
per piece
Delivery: 1 - 3 working days
  • Buy 10 for €16.07 per piece each and save 6%
  • Buy 20 for €15.39 per piece each and save 10%
  • Free shipment from € 500,- (incl. VAT)
  • Pick-up in NL or delivery in NL and Flanders (exception of the Wadden Islands)
  • Relatively short delivery times
  • Pay with i.e. iDeal, Riverty, Billink, Bancontact, PayPal en Creditcard

This glass support does not have a support lip at the bottom but because of its width it can carry quite a bit of weight. This clamp is very suitable for wider shelves with a considerable weight. By placing multiple clamps you can increase the width of the glass shelf.



Features glass support 100 x 16 x 27 mm chrome:

  • Placement on the back of the glass shelf or placement on both sides
  • For placement at the rear: glass shelf maximum 500 mm wide (30 cm), maximum 100 mm deep (10 cm), maximum carrying weight 30.00 kg. If 200 mm deep (20 cm), the maximum carrying weight is 15.00 kg.
  • Dimensions of glass support: 100 x 16 x 27 mm
  • Glass deduction because of the material thickness glass support: - 4 mm
  • Suitable for glass thickness: 4 / 5 / 6 / 8 mm
  • Hole for mounting screw on wall: 2 pcs. Ø 4 mm
  • Use preferably in combination with tempered glass
  • Finish: gloss chrome
  • Also available in aluminum effect
  • Can be ordered per piece, the price mentioned is a piece price!



This glass plate support 100 x 16 x 27 mm chrome comes:

  • In a bag
  • Including two glass clamp screws with plastic cap
  • Without wall mounting materials (no screw and plug)



Points of attention:

  • Ensure that the glass support is mounted with the correct mounting materials
  • Place the supports on a solid surface / wall
  • When ordering your glass panel, pay attention to the thickness of the material of the glass support. You will have to deduct this material thickness from the size of your glass shelf
  • Properly distribute the position of the glass supports for optimum load capacity. Mount the two glass plate supports at a quarter of the way. Example: glass shelf = 48 cm wide, then you mount the supports at 48: 4 = 12 cm from the side, both from the left and from the right
  • The mentioned maximum dimensions and carrying weight are based on tempered glass 6 mm
  • For larger glass shelves or a higher carrying weight, choose the supports that have an extra support at the bottom or also place glass supports on the side (and not just the back) of the glass shelf
