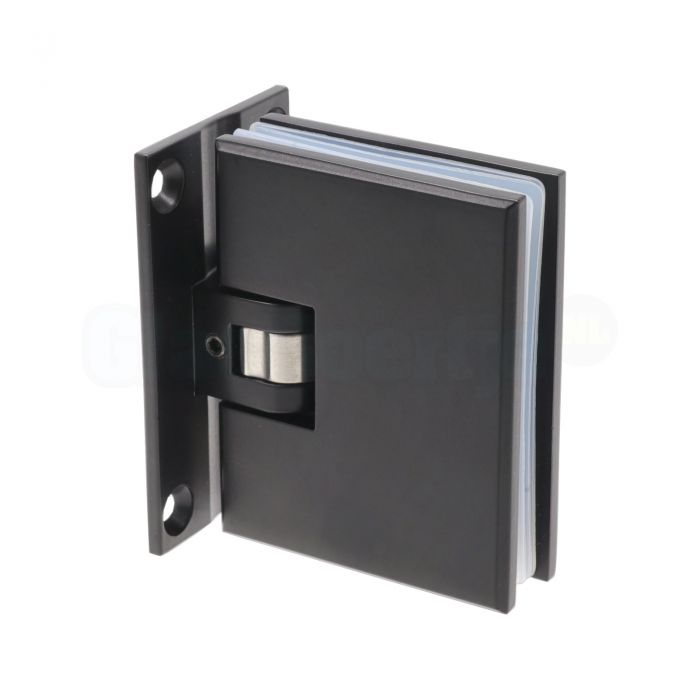

CBM Synera 3027 showerdoor hinge (wall-glass), matt black

Art. no.
210001

Suitable for 8 and 10 mm glass thickness, Stainless steel, matt black, capacity 2 hinges: max. 45 kg

More information
€148.00
per piece
Delivery: 1-3 working days

This CBM shower door hinge is from the Synera series and is completely made of stainless steel. CBM is an Italian manufacturer of different types of glass fittings, including shower glass fittings. This hinge is made of stainless steel (AISI304), is double-acting (so it turns both inwards and outwards), has an adjustable zero position and is mounted on the wall with a double-sided mounting plate. The mounting screws remain in sight, they are not covered with a cap or cover cap.

This hinge is sold per piece and the mentioned price is one piece price. However, the specifications listed are based on the use of two hinges. Also logical because a door with 1 hinge would not work.



Main features CBM Synera 3027 showerdoor hinge wall-glass (matt black):

tick-marks  Showerdoor hinge for mounting a glass shower door on a fixed wall, mounting at 90 degrees
tick-marks  Double acting; Rotates 90 degrees inward and 90 degrees outward (total 180 degrees)
tick-marks  Adjustable zero position; self-closing in the last centimeters towards the zero position
tick-marks  Double sided mounting plate equipped with four mounting holes
tick-marks  Suitable for glass thickness: 8 and 10 mm (we recommend using 8 mm for a shower door)
tick-marks  Max. doorweight; 45 kg (two hinges)
tick-marks  Max. size showerdoor with 8 mm glass: 1100 x 2000 mm
tick-marks  Max. size showerdoor with 10 mm glass: 900 x 2000 mm
tick-marks  100% Stainless steel (AISI304), finishing in colour RAL9005 matt black
tick-marks  Pay attention! The cut-out as seen in the image is based on 8 mm glass thickness
tick-marks  To be bought per piece, the mentioned price is the price for 1 piece! And not for the pair!



CBM Synera 3027 showerdoor hinge wall-glass (matt black) comes with:

tick-marks  One showerdoor hinge, finishing matt black
tick-marks  Two socket head screws for clamping the glass door to the hinge
tick-marks  Assembly gaskets for 8 and 10 mm glass
tick-marks  Mounting instructions



Points of attention:

tick-marks  Make sure you use the correct glass deduction when ordering the glass door. For example, if you install a sealing profile, you need a different glass deduction than if you are going to install a door without a seal. If you cannot find a solution, ask us for advice
tick-marks  Read the mounting manual in advance. It contains useful tips
tick-marks  Two hinges are always used for a showerdoor up to a height of 2000 mm (200 cm). If the door is higher then 2000 mm, three hinges are required. You then get a better load-bearing capacity and the pressure when opening / closing the door is better distributed over three hinges
tick-marks  Use the correct wall mounting screws and plugs for your situation. Because of various situations the screws do NOT come with the hinge by default. Choose the correct mounting materials for your situation!
tick-marks  Wall mounting screws that are too small can break the hinge. Pay attention to this!!
tick-marks  Mount the hinge on the glass door, position the glass door in the correct position and draw the drill holes on the wall. Now remove the glass door, drill the holes and place the correct plugs.
tick-marks  Put the glass door back in the correct position again and screw the wall mounting screws on the wall, position the door (read manual!) and then tighten the wall mounting screws
tick-marks  Set the zero position correctly (see also manual)
tick-marks  Work with precision, take your time, use the right tools and ask someone to help you when you need to move and mount the glass door
tick-marks  Preferably use a long water level or a laser water level to properly position the glass panel
tick-marks  NEVER let the glass door rest on the floor, always place something in between it such as a wooden slat, blanket etc. If glass is put on a hard surface, the risk of damage is very high. This also applies to any contact with the wall and other hard surfaces. Protect the glass at all times, it's a vulnerable material !

More Information
Art. no.210001
BrandCBM
SeriesSynera
Mounting of ... to ....Glass door to normal wall (non-glas wall)
Degrees90 °
Suitable types of glassinstallation glass (tempered glass incl. 5 holes and edge finishing)
Glass thickness in mm8, 10
Adjustable zero positionYes
Capacity of 2 pieces (KG)45
Max. size showerdoor with 8 mm glass1100 x 2000 mm (w x h)
Max. size showerdoor with 10 mm glass900 x 2000 mm (w x h)
Stylesquare
MaterialStainless Steel (AISI 304)
Finishingmatt black (RAL9005)
Expected delivery time1-3 working days
Scope of supplyper 1 piece
Unit of measurementper piece
Packed in abox
Warranty2 years
Shipping price Netherlands11,50
Shipping price Belgium14,00
Shipping price rest of EuropeSee the check-out page for actual pricing
