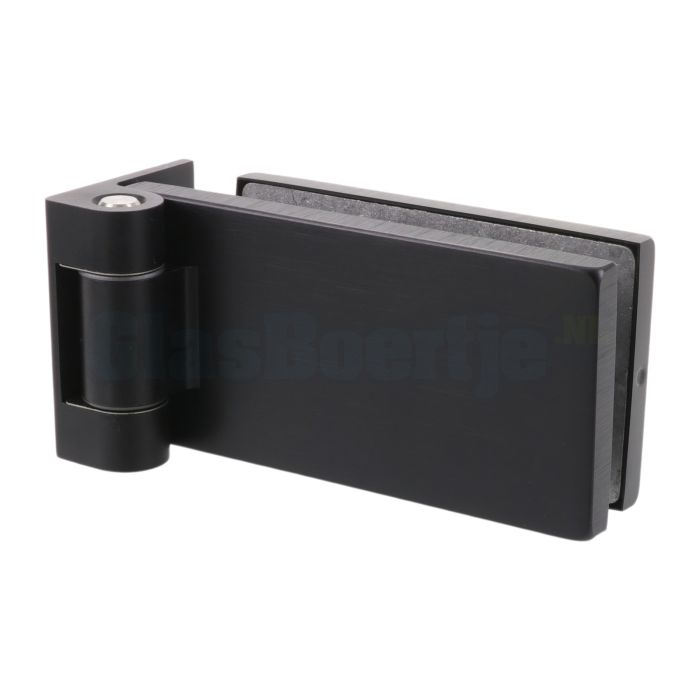

Casma Quadra 13100 glass door hinge for flush door, matt black

For 8, 10 of 12 mm glass,  capacity 2 pcs.: max. 45 kg

(more information)
Art. no.
224904
€76.50
per piece
Delivery: 1 - 3 working days
  • Free shipment from € 500,- (incl. VAT)
  • Pick-up in NL or delivery in NL and Flanders (exception of the Wadden Islands)
  • Relatively short delivery times
  • Pay with i.e. iDeal, Riverty, Billink, Bancontact, PayPal en Creditcard

Features of Casma Quadra glass door hinge for flushed door (matt black):

  • Glass door hinge for single-acting glass door with a stop
  • Application in a frame with a rebate
  • Suitable for glass thickness: 8, 10, or 12 mm
  • Maximum door weight: 45 kg (with two hinges)
  • Maximum door width: 1000 mm
  • The hinge is made of aluminum, visible parts with matt black brushed finish
  • Drill holes in glass per hinge: 2 pieces Ø 16/20 mm
  • To be ordered individually, the listed price is a unit price!



Casma Quadra glass door hinge for flushed door (matt black) comes with:

  • One hinge
  • Brushed end caps of aluminum, matt black finished
  • Required screws for clamping the hinge to the glass
  • Required gasket for 8 and 10 mm or 12 mm thick glass
  • Delivered in a box



Points of attention:

  • Use the right screws for your situation (these are not included with the hinge)
  • Mount the hinges on the door, position the door in the right place, and mark the drill holes on the frame. Now remove the door and drill the screw holes
  • Place the door back in the correct position and screw the hinges securely onto the frame
  • Work carefully and with the right tools
  • Preferably use a long level or a laser level for properly positioning the door
  • Up to a door height of 2100 mm (210 cm), always use two hinges. If the door is higher, three hinges are used. This provides better load-bearing capacity, and the pressure when opening/closing the door is better distributed over three hinges
  • Ensure that you use the correct glass deduction when ordering the glass door. Consult with us for advice if you are unsure
  • Never let the door rest on the floor; always place something in between, such as a wooden slat, blanket, carpet, etc. Placing glass on a hard surface greatly increases the risk of damage. This also applies to contact with the wall and other hard surfaces. Protect the glass; it remains a fragile product
