Mirror mounting set EM08 (blind assembly)

Art. no.

Maximum capacity 12 kg. This is equal to a 6 mm thick mirror with a maximum of 0,8 m2

More information
per set
  • Buy 6 for €17.39 per set each and save 6%
  • Buy 12 for €16.65 per set each and save 10%
Delivery: 1-3 working days

With this blind mirror mounting set EM08 you can mount a mirror up to 12 kg on the wall without seeing the mounting materials. The space between the wall and the mirror is 17 mm (1.7 cm) so that the mirror appears to float on the wall. This gives your mirror a more luxurious appearance and you create a spatial effect.

Even if your wall is not completely flat then this set is extremely suitable. You only need 2 hanging points on the wall and 2 magnets. In other words, there are only 4 places where the mirror touches the wall. You will not be bothered by further irregularities.


Main features of the EM08 mirror mounting kit:

tick-marks  Suitable for invisible mounting of a mirror
tick-marks  Maximum carrying weight 12 kg, or a 6 mm thick mirror of max. 0,8 m2
tick-marks  Extremely suitable for damp rooms such as a bathroom
tick-marks  Easy to adjust level when mounting due to the white eccentric mounting plates
tick-marks  The mirror hangs 17 mm (1,7 cm) free from the wall
tick-marks  The mirror can be easily moved or removed later
tick-marks  Only 4 drill holes needed in the wall

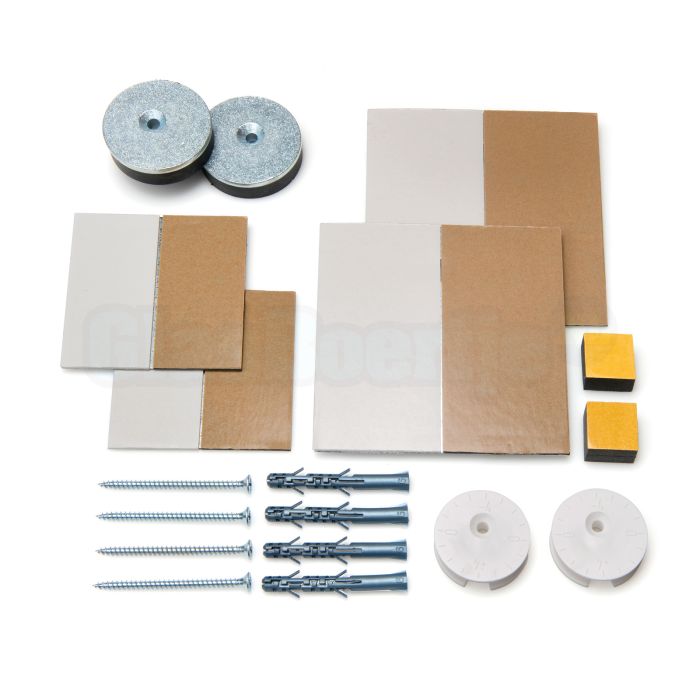

This blind mirror mounting set type EM08 comes with:

tick-marks  Two eccentric disks with adjustment option (mounting with total 2 screws on the wall)
tick-marks  Two self-adhesive plates 100 x 100 mm with suspension eye (mounted on the rear of the mirror, on top)
tick-marks  Two magnets Ø 35 mm (mounting with total 2 screws on the wall)
tick-markstick-marks  Two adhesive counterplates 70 x 70 mm (mounted on the back of the mirror, at the bottom, so that the mirror is pulled against the wall by the magnets at the bottom and has the same distance to the wall as the top. Without these spacers, the mirror hangs diagonally forward)
tick-marks  Two adhesive foam rubber spacers (are additional addition so you can choose between using the magnets or these spacers
tick-marks  Four plugs and four screws
tick-marks  Assembly instructions


Points of attention for blind mirror mounting set type EM08:

tick-marks  When mounting, place the mirror on a firm, flat and soft surface (for example, place a blanket on a sturdy table)
tick-marks  Degrease the back of the mirror before you stick the adhesive plate on it
tick-marks  Measure well where the plate should go, if it is stuck you will not get it loose
tick-marks  Stick the self-adhesive plate on the back of the mirror. Place approx. 15 kg of weight on the self-adhesive plate and let it sit for at least one hour (so that the plate can adhere well to the rear of the mirror)
tick-marks  The corners, edges and rear of the mirror are vulnerable. Always place the mirror on a soft surface such as a piece of carpet or rug. Don't bump into anything and never let the mirror lean on a corner
tick-marks  When you want to add a mirrorheating we advise you to choose set EM08, EM16 or EM24
tick-marks  When mounting a mirrorheating, the self-adhesive plates must not be in contact with the heating element
tick-marks  This mounting set is NOT suitable for mirrors with a safety film on the back
tick-marks  This set is suitable for the mirror types (without safety film) supplied by GlasBoertje.nl. We cannot guarantee proper adhesion of this set on mirrors that are not supplied by us

More Information
Art. no.239706
Maximum capacity12 kg (mirror 6 mm of 0.8 m2)
Suitable types of glassnormal mirror glass (without safety foil), colored mirror glass (without safety foil)
Scope of supplyper 1 piece
Unit of measurementper set
Packed in abox
Expected delivery time1-3 working days
Shipping price Netherlands6,50
Shipping price Belgium12,75
Shipping price rest of EuropeSee the check-out page for actual pricing
Pick-up possible? (without costs)Yes, Pick-up is possible in:, Oosterhout (Noord-Brabant), 's-Hertogenbosch
