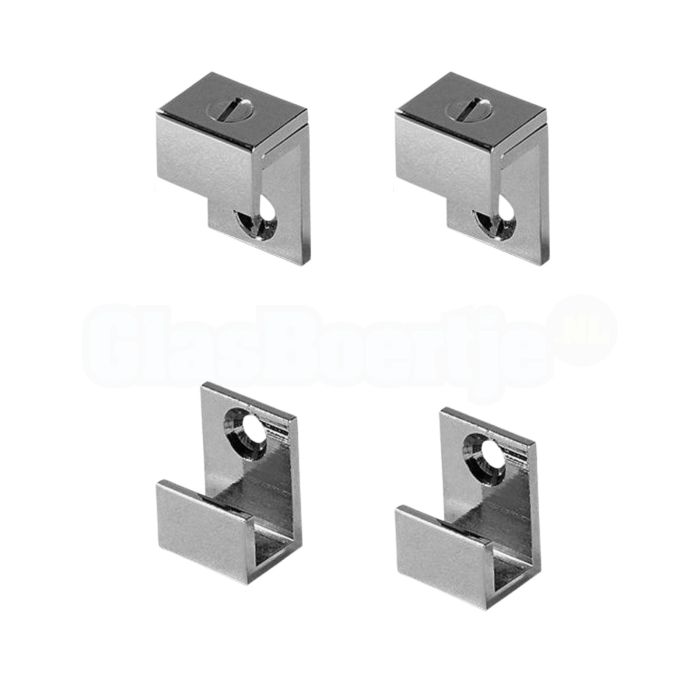

Square mirror clamp 5508.30.1 (chrome)

Stremler, suitable for 6 mm mirror, material Brass

(more information)
Art. no.
233800
€17.75
per set
Delivery: 1 - 3 working days
  • Free shipment from € 500,- (incl. VAT)
  • Pick-up in NL or delivery in NL and Flanders (exception of the Wadden Islands)
  • Relatively short delivery times
  • Pay with i.e. iDeal, Riverty, Billink, Bancontact, PayPal en Creditcard

The Assa Abloy square mirror clamp 5508.30.1 (chrome) is suitable for mirrors with a thickness of 6 mm, where the weight does not exceed 18 kg. This is equal to a 6 mm thick mirror of 1.2 m2.

By using multiple sets on one mirror, you can increase the capacity. One set can carry a maximum of 18 kg, 2 sets 36 kg, etc. However, use this judiciously; do not use 4 sets to hang a mirror weighing 72 kg; in that case, consider an alternative mounting method, such as a mirror profile.



Features of Assa Abloy square mirror clamp 5508.30.1 (chrome):

  • Placement at the bottom and side (or top) of the mirror
  • Suitable for 6 mm thick mirrors
  • Dimensions: 20 x 16 mm
  • Material: brass
  • Finish: chrome
  • Maximum capacity 18 KG (6 mm mirror of 1.2 m2)



This Assa Abloy square mirror clamp 5508.30.1 (chrome) is supplied with:

  • Packed in a bag
  • Without plugs and screws
  • 2 mirror clamps
  • 2 mirror clamps with screwable upper part



Points of attention:

  • Make sure the mirror clamp is mounted with the correct fasteners
  • Place the mirror clamp on a solid and sturdy surface/wall
