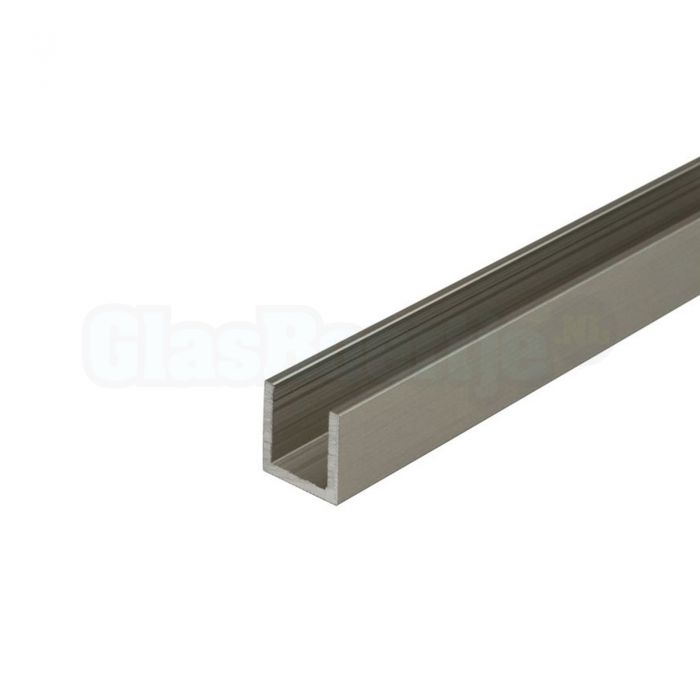

Aluminum u-profile 15x15x15 mm, Stainless Steel look (max. 6 meter)
Aluminum, stainless steel look finished, made to measure or can be ordered as a 6 meter profileMore information
- Gratis verzending vanaf € 500,- Incl. BTW
- Afhalen in NL of leveren in NL en Vlaanderen (m.u.v. Waddeneilanden)
- Relatief korte levertijden
- Afrekenen met o.a. iDeal, AfterPay, Billink, Bancontact, PayPal, Creditcard of overboeking
This U-profile of 15x15x15 mm in outer size has an inner size of 13 x 11 x 13 mm. The most ideal would fit a glass panel of 6 mm thickness. This leaves you 2.5 mm space on both sides of the glass to apply a sealant seam (11 mm width as inner size minus 6 mm thick glass leaves 5 mm space. You divide this 5 mm over 2 sides of the glass, and that is 2.5 mm space per side).
8 mm thick glass could also be put in but then this will only mean a sealant of 1.5 mm per side. This is actually too little space to be able to fit the sealant between the glass and profile. With 10 mm glass you only have 0.5 mm left per side. In that case you could first put the sealant in the profile and then press the glass panel in it. The disadvantage is that you have to break everything if you ever remove the glass from the profile. Then you better choose a profile with an outer size of 20 mm wide (which has an inner size of 16 mm).
You can use this profile indoors to mount glass. A common application for this profile is for glass walls and shower walls.
Main features of aluminum U-profile 15x15x15 mm Stainless Steel look finish:
Aluminum U-shaped profile
Stainless Steel look finish
Suitable for indoor use
Outer size is 15 x 15 x 15 mm
Inner size is 13 x 11 x 13 mm
Material thickness is 2 mm
Order custom made; please order the total amount in meters under "pieces", rounded upwards (i.e. when you need 220 cm in total, you order 3 pieces, as that is 3 meters where your piece has te be cut out). In the comment section of the check/out page you can let us know in what sizes you want the profile(s) to be cut
Maximum order length from 1 piece: 6 meters
When completing the order on the payment page, please indicate in which length(s) you want the profile(s) delivered
The mentioned price is a 1 meter price
The aluminum U-profile 15x15x15 mm Stainless Steel look finish is delivered:
Cut to size
According to specified requirements
At delivery address. Pick-up is also possible, the options are mentioned on the payment page
Points of attention:
The profile is usually delivered cut to the correct size or with a small over-length, so that you can saw it neatly to size in the work itself and finish the end side neatly
The ends are not finished when you receive them. You will have to finish it yourself by filing it smooth
With this profile no cover caps are available for the ends. You will have to seal it off or cut a cover from a piece of residual profile that you can mount on the end side
If you are going to place a glass panel in the profile, think carefully about the correct glass size. You will have to use a small glass deduction of at least approx. 2 - 4 mm (partly depending on the screw head that can protrude into the profile). If you apply the head in a recessed position, at least 2 mm is sufficient
Preferably you place a mounting gasket under the glass in the profile. You can also place this gasket on the side of the glass to properly position the glass pane in the profile before you seal it permanently. If you use this mounting gasket between the glass and the profile, take into account an extra glass deduction of at least 2 mm or 3 mm (depending on the thickness of the gasket used for it)
|Suitable types of glass||laminated glass, tempered glass|
|Glass thickness in mm||6, 7, 8, 10, 6.38, 6.76, 8.38, 8.76, 9.52, 10.76|
|Finishing||Stainless Steel look|
|Scope of supply||custom size|
|Unit of measurement||per meter|
|Packed in a||schrink wrap|
|Expected delivery time||1-3 working days|
|Shipping price Netherlands||11,50|
|Shipping price Belgium||14,00|
|Shipping price rest of Europe||This product can only be sent to NL and BE|
