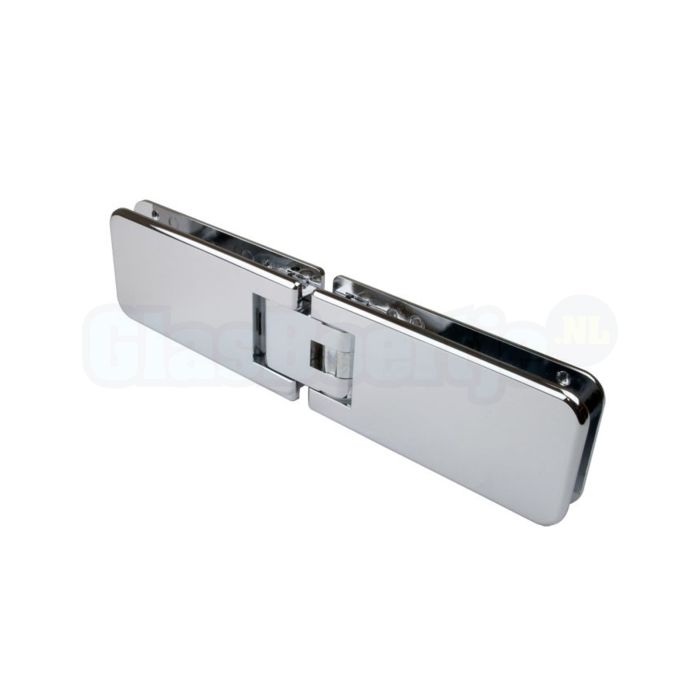

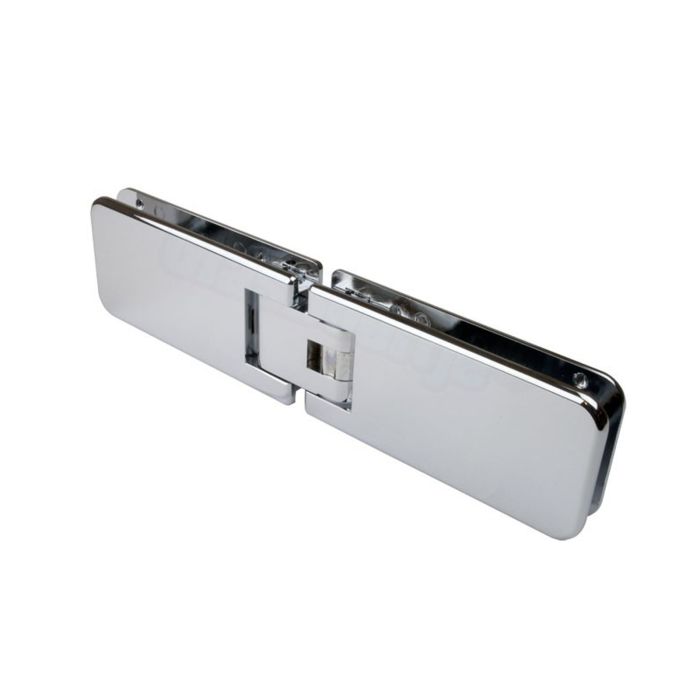

Assa Abloy Marine 3262 shower hinge 180° (glass-glass), chrome
Suitable for 8 and 10 mm glass thickness, Brass, polished chrome, capacity 2 hinges: max. 60 kgMore information
- Gratis verzending vanaf € 500,- (incl. BTW)
- Afhalen in NL of leveren in NL en Vlaanderen (m.u.v. Waddeneilanden)
- Relatief korte levertijden
- Betalen met o.a. iDeal, Riverty, Billink, Bancontact, PayPal en Creditcard
This showerdoor hinge from Assa Abloy is a quality product and comes from the Marine series. Previously known in the market as "Stremler Marine", until Assa Abloy decided to acquire the Stremler company, then the brand name was changed to "Assa Abloy Marine".
This hinge is a widely used hinge and has been around for decades. Due to the great success, other brands have now also started making a similar hinge. But watch out! The specifications and materials used may differ slightly from the original Assa Abloy Stremler Marine hinges. Pay close attention to this if you plan to replace your current hinge with a new one.
This hinge is sold per piece and the mentioned price is one piece price. However, the specifications listed are based on the use of two hinges. Also logical because a door with 1 hinge would not work.
Main features Assa Abloy Marine 3262.30.0R showerdoor hinge glass-glass (chrome):
Showerdoor hinge for mounting a glass shower door on a glass wall, mounting at 180 degrees
Double acting; Rotates 90 degrees inward and 90 degrees outward (total 180 degrees)
Adjustable zero position; self-closing in the last centimeters towards the zero position
Brass material, polished chrome finish
Suitable for glass thickness: 8 and 10 mm (we recommend using 8 mm for a shower door)
Maximum door weight: 60 kg (with two hinges)
Max. size showerdoor with 8 mm glass: 900 x 2000 mm
Max. size showerdoor with 10 mm glass: 800 x 2000 mm
Pay attention! The cut-out as seen in the image is based on 8 mm glass thickness
To be bought per piece, the mentioned price is the price for 1 piece! And not for the pair!
Assa Abloy Marine 3262.30.0R showerdoor hinge glass-glass (chrome) comes with:
One showerdoor hinge, finishing polished chrome
Two socket head screws for clamping the hinge to the glass wall and two socket head screws for clamping the glass door to the hinge
Assembly gaskets that correspond to the glass thickness you specified
Points of attention:
Make sure you use the correct glass deduction when ordering the glass door and shower enclosure. For example, if you install a sealing profile, you need a different glass deduction than if you are going to install a door without a seal. If you cannot find a solution, ask us for advice
Read the mounting manual in advance. It contains useful tips
Two hinges are always used for a showerdoor up to a height of 2000 mm (200 cm). If the door is higher then 2000 mm, three hinges are required. You then get a better load-bearing capacity and the pressure when opening / closing the door is better distributed over three hinges
Work with precision, take your time, use the right tools and ask someone to help you when you need to move and mount the glass door
NEVER let the glass door rest on the floor, always place something in between it such as a wooden slat, blanket etc. If glass is put on a hard surface, the risk of damage is very high. This also applies to any contact with the wall and other hard surfaces. Protect the glass at all times, it's a vulnerable material !
|Brand||ASSA ABLOY Stremler|
|Mounting of ... to ....||Glass door to glass wall|
|Suitable types of glass||installation glass (tempered glass incl. 5 holes and edge finishing)|
|Glass thickness in mm||8, 10|
|Adjustable zero position||Yes|
|Capacity of 2 pieces (KG)||60|
|Max. size showerdoor with 8 mm glass||900 x 2000 mm (w x h)|
|Max. size showerdoor with 10 mm glass||800 x 2000 mm (w x h)|
|Expected delivery time||1-3 working days|
|Scope of supply||per 1 piece|
|Unit of measurement||per piece|
|Packed in a||box|
|Shipping price Netherlands||11,50|
|Shipping price Belgium||14,00|
|Shipping price rest of Europe||See the check-out page for actual pricing|
