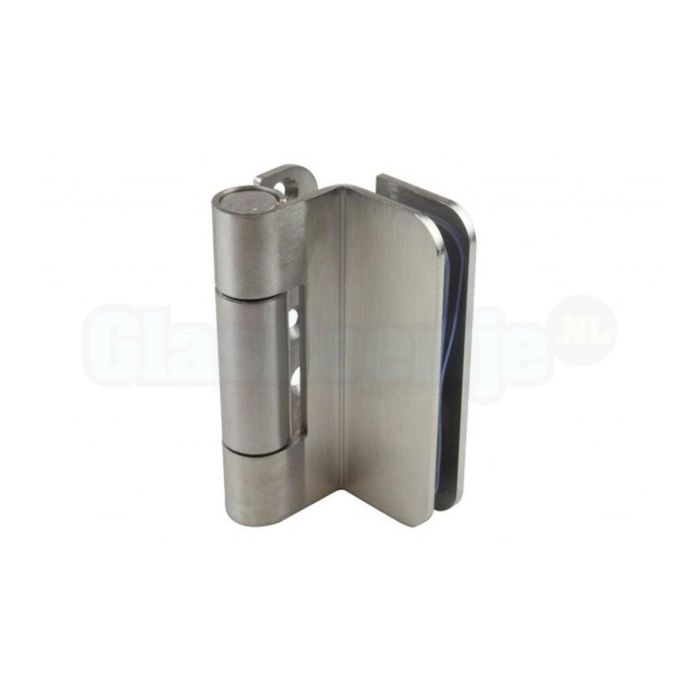

Single acting glass door hinge 12 mm, Stainless Steel

Suitable for 12 mm glass, stainless steel, Stainless Steel finish, capacity 2 hinges: max. 80 kg

(More information)
Art. no.
per piece
Delivery: 4-7 working days
  • Free shipment from € 500,- (incl. VAT)
  • Pick-up in NL or delivery in NL and Flanders (exception of the Wadden Islands)
  • Relatively short delivery times
  • Pay with i.e. iDeal, Riverty, Billink, Bancontact, PayPal en Creditcard

A glass door hinge for 12 mm glass thickness (sst-look) for a flush mounted glass door, single-acting is applicable in a frame with a rabbet. Maximum door weight per two hinges is 80 kg. Suitable socket head screws are included.

Glass door hinge (brushed stainless steel) for a single acting door is sold per piece and the listed price is therefore a piece price. However, the specifications mentioned are based on the use of two hinges. This makes sense because a door with 1 hinge would not work...


Main features of single acting door hinge 12 mm (brushed stainless steel):

tick-marks  Glass door hinge for single-acting (touch) glass doors
tick-marks  Application in a frame with a sponning
tick-marks  Suitable for glass thickness: 12 mm
tick-marks  Maximum door weight: 80 kg (with two hinges)
tick-marks  Maximum door width: 1200 mm
tick-marks  Fully stainless steel, brushed stainless steel finish
tick-marks  Drilling holes required per hinge, in the glass: 2 pieces Ø 16 mm
tick-marks  Maximum turning point 5.2 Nm
tick-marks  Can be bought per 1 piece, the listed price is a piece price!


Glass door hinge 12 mm for a single acting door (brushed stainless steel) comes with:

tick-marks  One hinge, stainless steel material, brushed stainless steel finish
tick-marks  Two socket head screws for clamping the hinge to the glass
tick-marks  Two silicone rings
tick-marks  Delivered in a bag


Points of attention:

tick-marks  Use the correct screws for your situation (the mounting screws are not included)
tick-marks  Mount the hinges on the door, position the door in the right spot and draw the drill holes on the frame. Now remove the door, and drill the holes
tick-marks  Put the door back in the right position and screw it hand-tight on the frame, position it and then tighten it firmly
tick-marks  Always work calmly and with the correct tools
tick-marks  Preferably use a long level or a laser water level to properly position the door
tick-marks  Up to a door height of 2000 mm (200 cm) two hinges are used. If the door is higher, three hinges are used. You will get a better carrying capacity and the pressure when opening/closing the door is better distributed over three hinges
tick-marks  Make sure you use the correct glass deduction when ordering the glass door. Ask us for advice if you need this
tick-marks  NEVER put the glass door directly on a hard surface (i.e. the floor), always place something in between such as a wooden plank, blanket, rug etc. If glass is put on a hard surface, the risk of damage is very high. This also applies to contact with the wall and other hard surfaces. Always protect the glass, it is and remains a vulnerable product

More information
Art. no.226918
Suitable forstompe deur
Mounting of ... to ....Glass door to normal wall (non-glas wall)
Degrees90 °
Suitable types of glassinstallation glass (tempered glass incl. 5 holes and edge finishing)
Glass thickness in mm12
Max door width (mm)1200
Capacity 2 pcs. (KG)80
Adjustable zero positionNo
MaterialStainless Steel (AISI 304)
FinishingStainless Steel look
Expected delivery time4-7 working days
Scope of supplyper 1 piece
Unit of measurementper piece
Packed in abox
Warranty2 years
Shipping price Netherlands11,50
Shipping price Belgium14,00
Shipping price rest of EuropeSee the check-out page for actual pricing
