Shower sealing profile 1805.66.4

Art. no.
203601

Assa Abloy seal underside showerdoor, for glass thickness 10 mm, length 2200 mm

More information
€35.25
per piece
Delivery: 1-3 working days

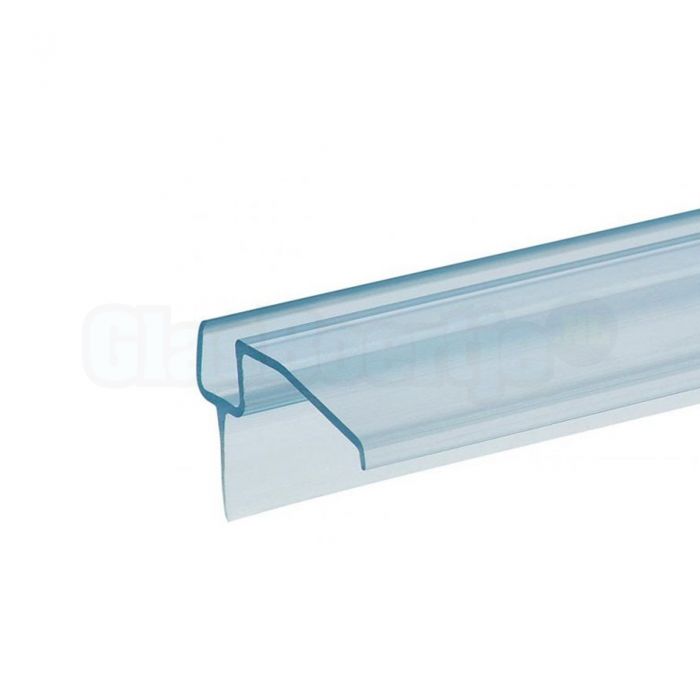

This shower sealing profile is from the brand Assa Abloy. This seal has a leakage sill and is used for watertight sealing underneath a shower door. The sealing profile can only be placed underneath the door. The profile has two functional aspects; a "roof" through which the sloping water from the shower door runs about 35 mm from the door to the floor, and a sealing strip at the bottom so that water cannot pass under the door.

The sealing profile and the "roof" itself are stiff and cannot be bent. The seal on the bottom is flexible. You get the best result to combine this profile with a water barrier or to use it with an existing sill or upright edge of the shower tray (or bath edge with a bath folding wall). As a result, the seal will not touch the floor and / or shower tray, but will rotate over it without touching the floor when the door opens or closes.



Main features of Assa Abloy shower sealing profile 1805.66.4:

tick-marks  Plastic shower sealing profile
tick-marks  Sealing for an inward and/or outward opening showerdoor
tick-marks  Suitable for glass thickness 10 mm
tick-marks  Length: 2200 mm
tick-marks  When installing a sealing profile, you must have sufficient space between the glass and wall/shower enclosure. This space differs per glass thickness. Look at the technical detail photo for the details
tick-marks  Can be ordered per piece, the mentioned price is a piece price!



This Assa Abloy shower sealing profile 1805.66.4 is delivered:

tick-marks  In the indicated size
tick-marks  Wrapped with sealing foil or in a cardboard tube



Points of attention:

tick-marks  If you are going to replace an existing profile; make sure you have the necessary space to install this seal
tick-marks  When you order a new door; use the correct glass deduction to ensure that everything fits properly
tick-marks  Choose the correct seal based on the glass thickness
tick-marks  The part that slides over the glass is hard plastic and cannot be bent
tick-marks  It is best to cut this profile to size with plinth pliers

More Information
Art. no.203601
BrandAssa Abloy
Materialplastic
Sealing forshowerdoor
Plaatsingon shower door
Locationunderneath door
Directioninwards and/or outwards
Glass thickness10 mm
Length2200 mm
Scope of supplyper 1 piece
Unit of measurementper piece
Packed in aschrink wrap
Warranty1 year
Expected delivery time1-3 working days
Shipping price Netherlands11,50
Shipping price Belgium14,00
Shipping price rest of EuropeThis product can only be sent to NL and BE
