Self-closing pivot door set 60PHP PREMIUM (hydraulic), matt black
- Free shipment from € 500,- (incl. VAT)
- Pick-up in NL or delivery in NL and Flanders (exception of the Wadden Islands)
- Relatively short delivery times
- Pay with i.e. iDeal, Riverty, Billink, Bancontact, PayPal en Creditcard
This PREMIUM hydraulic hinge set for a double-acting pivot door is suitable for a glass door with a width of max. 1200 mm and can support a door of up to 100 kg. This set is from the brand "Ozone" and can be used in many situations because of its specifications and design. The big advantage of this hinge is the adjustment options and no spring system is needed in a built-in floor pot; the mechanism is built into the clamping part on the glass so that you can screw the pivots on the floor and on the top of the door opening. No large holes or recesses are needed in the floor and/or frame/door opening.
This complete set is sold with an upper shoe, lower shoe and pivot point. You will still have to order the handle and the glass. The mentioned price is therefore a set price for the hinge set.
Features Ozone 60PHP PREMIUM hydraulic hinge set (matt black):
Hydraulic hinge set for double acting doors (doors that open both in and out)
The door can be swiveled 150 degrees inwards and 150 degrees outwards, with a rest position at 90 degrees in both directions
Center of pivot point at 65 mm (distance clear width to center of pivot point)
Material cover caps: stainless steel (AISI316), finish matt black)
Cover caps are 198 x 80 mm (length x height)
Suitable for installation glass 8, 10, 12 mm
Glass deduction: bottom 11.5 mm, top 6 mm, side shoe side 7 mm, passage side 4 mm (tight opening dimensions minus the stated deduction per side)
Maximum door weight: 100 kg
Maximum door width: 1200 mm
Hinges are tested to 500,000 cycles!
To be ordered per set, the mentioned price is a set price!

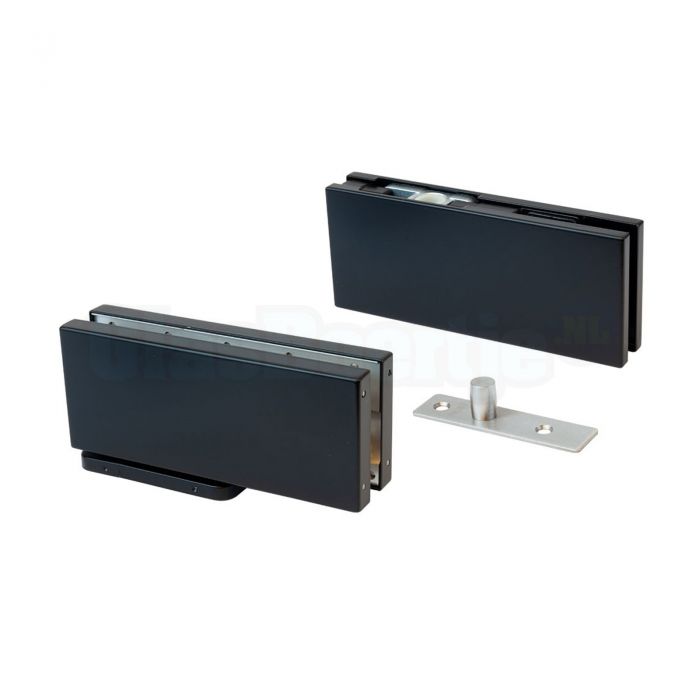

This Ozone 60PHP PREMIUM hydraulic hinge set (matt black) consists of:
One self-closing hydraulic shoe
One upper shoe
Cover caps matt black finish
Upper pivot point
Installation instructions can be downloaded
Points of attention:
Not suitable for single-acting doors (doors that only open in one direction)
Make sure that you use the correct glass deduction when ordering the glass door. Measure the opening properly with good and reliable measuring instruments, measure the width and height in several places and check whether the opening is 90 degrees square. Ask us for advice if you can't figure it out
The glass recess of the upper shoe is different from that of the lower shoe! Pay attention to this when ordering (state whether the hinges should be on the left or right, preferably with an additional drawing/sketch)
Read the installation manual carefully before starting installation! It contains useful installation tips
Take your time for the installation, don't rush! Work with the correct tools
Preferably use a long spirit level or a laser level for correct positioning of the door
NEVER let the glass door rest on the floor, always place something in between, such as a wooden slat, blanket, rug, etc. If glass is placed on a hard surface, the risk of damage is very high. This also applies to contact with the wall and other hard surfaces. Protect the glass, it is and remains a vulnerable product
|Suitable types of glass||installation glass (tempered glass incl. 5 holes and edge finishing), tempered-laminated glass|
|Glass thickness in mm||10, 12, 15, 8.38, 8.76, 9.52, 10.76, 11.52, 12.76|
|Material||Stainless Steel (AISI 316)|
|Finishing||matt black (RAL9005)|
|Expected delivery time||1-3 working days|
|Scope of supply||per 1 piece|
|Unit of measurement||per set|
|Packed in a||box|
|Shipping price Netherlands||11,50|
|Shipping price Belgium||11,50|
|Shipping price rest of Europe||See the check-out page for actual pricing|
|Pick-up possible?||Yes, Pick-up is possible in:, Oosterhout (Noord-Brabant), (These locations are only collection points, no production takes place here! Always place orders on the website)|
