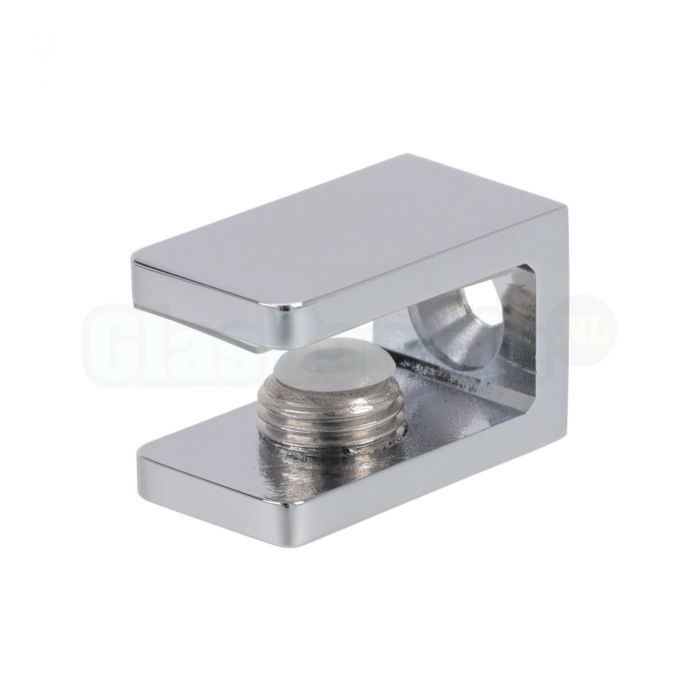

Glass support 15 x 17 x 27 mm, chrome
Brand Bohle, for glass thickness 6 to 10 mm, material ZincMore information
- Buy 20 for €7.25 per piece each and save 10%
- Buy 40 for €6.84 per piece each and save 15%
- Gratis verzending vanaf € 500,- (incl. BTW)
- Afhalen in NL of leveren in NL en Vlaanderen (m.u.v. Waddeneilanden)
- Relatief korte levertijden
- Betalen met o.a. iDeal, Riverty, Billink, Bancontact, PayPal en Creditcard
This glass support is quite small in size and has no extra support at the bottom. This makes the support barely noticeable and the choice goes quickly to this model. But this glass support does have reasonable limitations with the maximum carrying weight and the maximum dimensions of the glass shelf. Check carefully whether this support meets your requirements.
Most important characteristics of glass support 15 x 17 x 27 mm chrome:
Placement on both sides of the glass, or at the rear and both sides of the glass
For placement at the rear: glass maximum 600 mm wide (60 cm), maximum 100 mm deep (10 cm), maximum carrying weight 5 kg
Dimensions of the glass support: 15 x 17 x 27 mm
Glass deduction due material thickness of support: minimum - 3 mm (on each side of the glass where the support is placed)
Suitable for glass thickness: 6 / 8 / 10 mm
Hole for screw: Ø 4,5 mm
Use preferably in combination with tempered glass
Finish: gloss chrome
Also available in stainless steel effect and matte chrome
Can be ordered per piece, the price stated is a piece price!
Glass support 15 x 17 x 27 mm chrome comes:
In a bag, packed in a little box
Including glass clamp screw with plastic cap
With silicone insert
Without wall mounting materials (no screw and plug)
Points of attention:
Ensure that the glass support is mounted with the correct mounting materials
Place the supports on a solid surface / wall
When ordering your glass panel, pay attention to the thickness of the material of the clamp. You will have to deduct this 3 mm material thickness from the size of your glass plate, per side where the glass support is placed
Properly distribute the position of the glass plate supports for optimum load capacity. Mount the two glass plate supports at a quarter of the way. Example: glass plate = 60 cm wide, then you mount the supports at 60: 4 = 15 cm from the side, both from the left and from the right
The stated maximum dimensions and carrying weight are based on tempered glass 6 mm
For larger glass plates or a higher carrying weight, choose the clamps that have an extra support at the bottom or also place clamps on the side (and not just the back) of the glass
|Series||Bohle glass supports|
|Glass thickness in mm||6, 8, 10|
|Suitable types of glass||tempered glass|
|Expected delivery time||1-3 working days|
|Scope of supply||per 1 piece|
|Unit of measurement||per piece|
|Packed in a||box|
|Shipping price Netherlands||9,25|
|Shipping price Belgium||12,75|
|Shipping price rest of Europe||See the check-out page for actual pricing|
|Pick-up possible?||Yes, Pick-up is possible in:, 's-Hertogenbosch|
