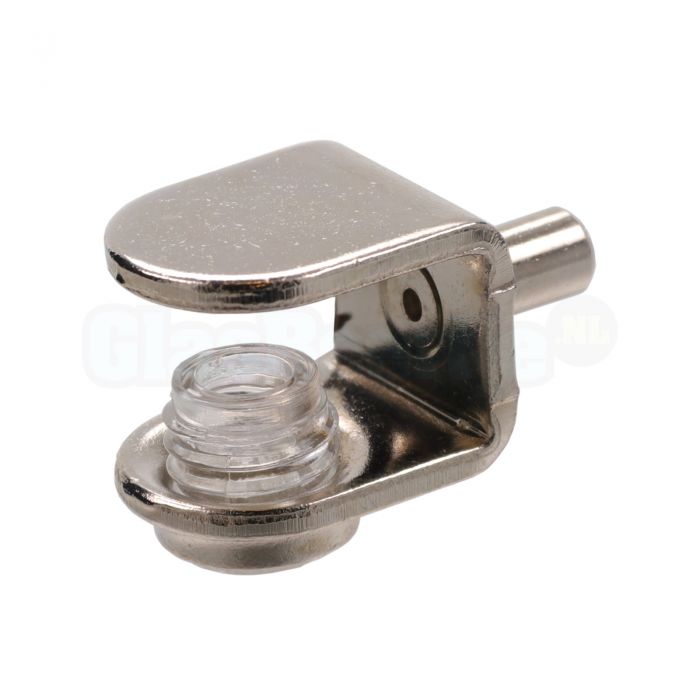

Glass support 15 x 17 x 19 mm, nickel plated

Art. no.

Brand PGV, for glass thickness 6/8 mm, brass, nickel plated

More information
per piece
  • Buy 8 for €3.33 per piece each and save 5%
  • Buy 16 for €3.15 per piece each and save 10%
  • Buy 40 for €2.98 per piece each and save 15%
Delivery: 1-3 working days

Glass support 15 x 17 x 19 mm is a support with a pin of 5 mm which can be used in most cabinets. You can slide a glass plate of 6 to 8 mm thickness in it and fix it with the plastic clamping screw. This glass plate support is made of brass and has a nickel-plated finish.


Main features of glass support 15 x 17 x 19 mm:

tick-marks  This glass shelf support is comparable to the standard shelf supports that you often encounter in cupboards
tick-marks  Place two supports on the left side and two supports on the right side and place the glass shelf on top (at least 4 glass supports per shelf are required)
tick-marks  Dimensions of shelf support: 15 x 17 x 19 mm
tick-marks  Suitable for glass thickness: 6 / 8 mm
tick-marks  Suitable for hole Ø 5 mm, depth 9 mm
tick-marks  Preferably use in combination with tempered glass
tick-marks  Base material: brass
tick-marks  Finish: nickel plated
tick-marks  Material thickness for glass deduction: minimum 2 mm per side (so 2 ​​mm left and 2 mm left glass deduction)
tick-marks  Can be ordered per piece, the mentioned price is a piece price!


This glass support 15 x 17 x 19 mm is supplied:

tick-marks  In a plastic bag
tick-marks  Includes plastic glass clamping screw


Points of attention:

tick-marks  Check carefully whether the pin of Ø 5 mm with a length of 9 mm fits in the cabinet
tick-marks  When ordering your glass, pay attention to the thickness of the material of the glass support. You will have to deduct this material thickness of 2 mm from the size of your glass, on each side where this support is placed. In this case at least 4 mm of the width. And for safety we advise you to take an extra 1 or 2 mm as a deduction. Too small always fits, 1 mm too big and it doesn't fit

More Information
Art. no.238902
Glass thickness in mm6, 7, 8
Suitable types of glasstempered glass
Finishingnickel plated
Expected delivery time1-3 working days
Scope of supplyper 1 piece
Unit of measurementper piece
Packed in abag
Warranty2 years
Shipping price Netherlands6,50
Shipping price Belgium12,75
Shipping price rest of EuropeSee the check-out page for actual pricing
