Glass support 15 x 15 x 12 mm, chrome (10 pieces)

Assa Abloy Stremler Glass support 15 x 15 x 12 mm

(more information)
Art. no.
233901
€82.00
per set
Delivery: 2 - 3 working weeks
  • Free shipment from € 500,- (incl. VAT)
  • Pick-up in NL or delivery in NL and Flanders (exception of the Wadden Islands)
  • Relatively short delivery times
  • Pay with i.e. iDeal, Riverty, Billink, Bancontact, PayPal en Creditcard

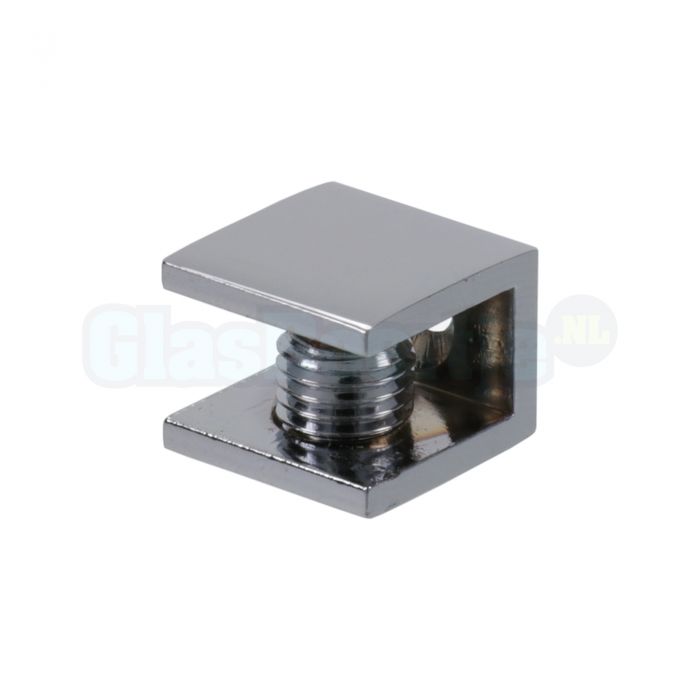

Features of Assa Abloy Glass Shelf Support 15 x 15 x 12 mm:

  • This glass shelf support is similar to the standard shelf supports often found in cabinets.
  • Screw two supports on the left and two on the right side of the glass plate in the sidewall, and place the glass plate on them (4 supports per glass plate needed).
  • Dimensions of glass shelf support: 15 x 15 x 12 mm.
  • Suitable for glass thickness: 4 / 5 / 6 mm.
  • Screw hole Ø 3.5 mm.
  • Preferably use in combination with tempered glass.
  • Finish: glossy chrome.
  • Base material: brass.
  • Sold per 10 pieces, price per 10 pieces.



Assa Abloy Glass Shelf Support 15 x 15 x 12 mm chrome is supplied:

  • In a foam rubber bag, packaged in a box.
  • Including glass clamping screw with plastic cap.
  • With silicone insert.
  • Without wall mounting materials (i.e., no screw and plug).



Points of attention:

  • Ensure that the glass shelf support is mounted with the correct fasteners.
  • Place the supports on a solid and sturdy surface/wall.
  • When ordering your glass plate, pay attention to the thickness of the glass shelf support material. You will need to subtract this material thickness of 4 mm from the size of your glass plate on each side where this support is placed.
  • Distribute the positions of the glass shelf supports evenly for optimal load capacity. Mount the two glass shelf supports a quarter of the way from the side. Example: glass plate = 60 cm wide, then mount the supports at 60 : 4 = 15 cm from the side, both from the left and right sides.
  • The mentioned maximum dimensions and load capacity are based on tempered glass 6 mm.
  • For larger glass plates or higher load capacity, choose clamps that have extra support at the bottom or also place clamps on the side (not only the back) of the glass plate.
