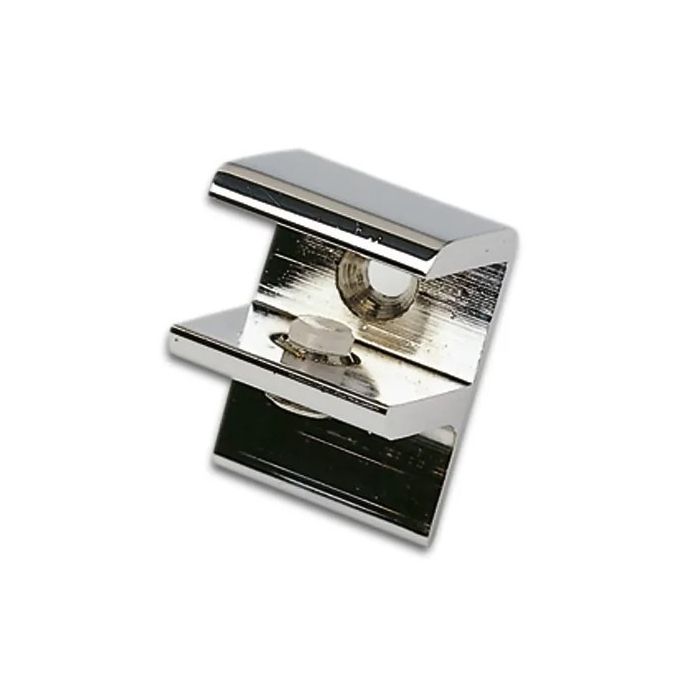

Glass support 23 x 32 x 32 mm, chrome (Bohle)

Art. no.
205311

Brand Bohle, for glassthickness 8 t/m 10, material Brass

More information
€8.50
per piece
  • Buy 20 for €7.65 per piece each and save 10%
  • Buy 40 for €7.23 per piece each and save 15%
Delivery: 4-7 working days

This glass support has an extra support at the bottom. Check carefully whether this glass support meets your requirements.



Most important features of Bohle glass support 23 x 32 x 32 mm chrome:

tick-marks  Placement on the back of the glass shelf
tick-marks  For placement at the rear: glass shelf maximum 600 mm wide (60 cm), maximum 150 mm deep (15 cm), maximum carrying weight 5 kg per pair
tick-marks  Dimensions of glass support: 23 x 32 x 32 mm
tick-marks  Glass deduction because of material thickness support: - 3 mm per side where the support is mounted
tick-marks  Suitable for glass thickness: 8 /10 mm
tick-marks  Hole for mounting screw on wall: Ø 4 mm
tick-marks  Use preferably in combination with tempered glass
tick-marks  Finish: polished chrome
tick-marks  Can be ordered per piece, the mentioned price is a piece price!



This glass support 23 x 32 x 32 mm chrome comes:

tick-marks  In a box
tick-marks  Including glass clamp screw with plastic cap
tick-marks  Without wall mounting materials (no screws and plugs)



Points of attention:

tick-marks  Ensure that the glass support is mounted with the correct mounting materials
tick-marks  Place the supports on a solid surface / wall
tick-marks  When ordering your glass panel, pay attention to the thickness of the material of the clamp. You will have to deduct this 3 mm material thickness from the size of your glass shelf
tick-marks  Properly distribute the position of the glass plate supports for optimum load capacity. Mount the two glass supports at a quarter of the way. Example: glass shelf = 60 cm wide, then you mount the supports at 60: 4 = 15 cm from the side, both from the left and from the right
tick-marks  The mentioned maximum dimensions and carrying weight are based on tempered glass 6 mm

More Information
Art. no.205311
BrandBohle
Glass thickness in mm8, 10
Suitable types of glasstempered glass
MaterialBrass
Finishingglossy chrome
Expected delivery time4-7 working days
Scope of supplyper 1 piece
Unit of measurementper piece
Packed in abox
Warranty2 years
Shipping price Netherlands9,25
Shipping price Belgium12,75
Shipping price rest of EuropeSee the check-out page for actual pricing
