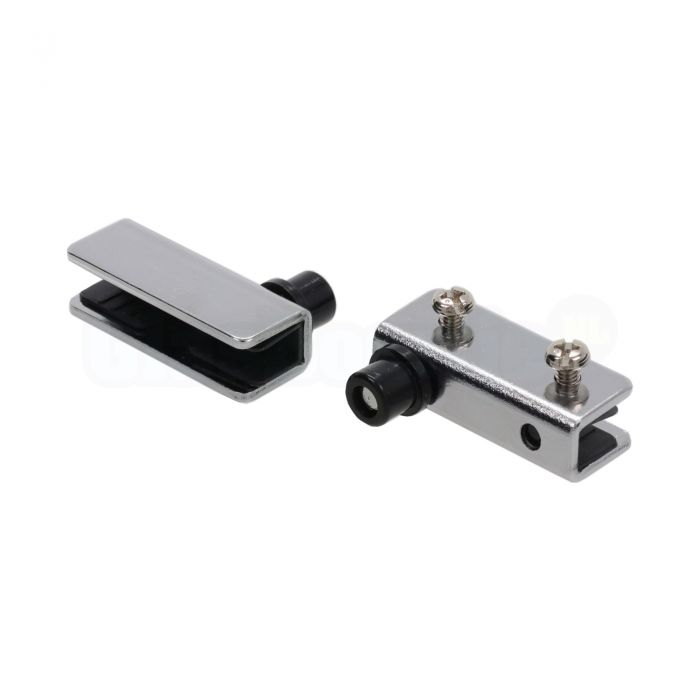

Glass pivot hinge set for 4-5-6 mm glass, chrome (KS05)
Brand SISO, for tempered glass 4, 5 and 6 mm, basic material is brass, chrome finish(More information)
- Free shipment from € 500,- (incl. VAT)
- Pick-up in NL or delivery in NL and Flanders (exception of the Wadden Islands)
- Relatively short delivery times
- Pay with i.e. iDeal, Riverty, Billink, Bancontact, PayPal en Creditcard
This pivot hinge set is from the brand SISO and can be used as a glass door hinge for showcases and furniture. With this pivot hinge you don´t need a glass recess because you slide the glass door into the hinge and secure it with clamping screws.
But be aware!! These pivot hinges do not turn on the side of the cupboard but on the bottom and top. For this you will need to drill a pivot point in your cupboard or display case. The pivot point are also supplied with the hinges, as a complete set, including the necessary gaskets. This way you always have a fitting set.
Choose your pivot hinge set carefully; pay attention to the glass thickness, finish of the material and how far the pivot point is out of the way (and therefore also how far the glass plate turns into the cupboard at the pivot point!). Preferably use tempered glass with the rotating hinges.
Main features of pivot hinge set KS05 chrome:
Pivot hinge set for glass doors
Basic material: brass
Gloss chrome finished
Suitable for glass thickness 4, 5 and 6 mm
Size: 40 x 14.5 x 11 mm
Drill hole pivot Ø 9 mm, pivot shaft Ø 5 mm
Edge height pivot point: 2 mm
Use preferably in combination with tempered glass
Use a glass deduction to get the correct glass size! (minimum required: dimension height -10 mm, dimension width - 6 mm)
Can be ordered per set, the price metioned is a set price!
This pivot hinge set KS05 chrome comes with:
One pivot hinge for top
One pivot hinge for bottom
Two pivot points
Two gaskets for in the hinge
Packed in a plastic bag
Points of attention:
Choose the pivot hinge set that fits the required glass thickness
Due to a shifted pivot point, the glass on the hinge side will turn a little bit inwards into the cupboard (between the side wall of the cupboard and pivot point). Take a good look at whether this works because of the presence of shelves or other obstacles
Think carefully about the correct glass deduction. Because the pivot shoe has a certain material thickness and the pivot also has a raised edge, you will have to take a good look at this. We have a clear technical drawing
|Series||SISO pivot hinges|
|Suitable types of glass||tempered glass|
|Glass thickness in mm||4, 5, 6|
|Expected delivery time||1-3 working days|
|Scope of supply||by the pair (2 pieces)|
|Unit of measurement||per pair|
|Packed in a||bag|
|Shipping price Netherlands||6,50|
|Shipping price Belgium||12,75|
|Shipping price rest of Europe||See the check-out page for actual pricing|
