P+S Flinter 8152 showerdoor hinge (wall-glass), chrome
Suitable for 6, 8 and 10 mm glass thickness, Zamac, polished chrome, capacity 2 hinges: max. 36 kgMore information
- Gratis verzending vanaf € 500,- (incl. BTW)
- Afhalen in NL of leveren in NL en Vlaanderen (m.u.v. Waddeneilanden)
- Relatief korte levertijden
- Betalen met o.a. iDeal, Riverty, Billink, Bancontact, PayPal en Creditcard

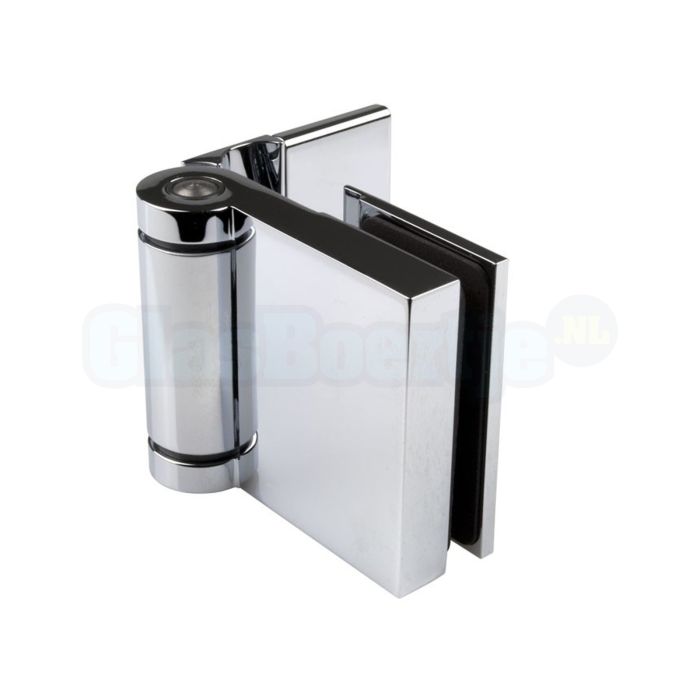

This shower hinge from Pauli + Sohn is a quality product from Germany and comes from the Flinter series. The "Flinter" series contains different types of wall-glass and glass-glass shower hinges which are often used for the mounting of collapsible shower door or bath walls. The hinges are quite small, so they are hardly noticeable. The load-bearing capacity is therefore somewhat limited, so you cannot mount a 1000 mm wide shower wall on these hinges, which is limited to a maximum of 900 mm wide.
This hinge is sold per piece and the mentioned price is an one unit price. However, the specifications listed are based on the use of two hinges. Also logical because a door with 1 hinge would not work.
Main features Pauli+Sohn Flinter 8152ZN5 showerdoor hinge (wall-glass) chrome:
Showerdoor hinge for mounting a glass shower door on a fixed wall, mounting at 90 degrees
Single acting; for an outward turning shower door
Single sided mounting plate equipped with two slotted holes and one fixation hole for optimal set possibility (including cover)
Adjustable zero position, self-closing in the last centimeters towards the zero position
Suitable for glass thickness: 6, 8, 10 mm (we recommend using 8 mm for a shower door)
Max. door weight: 36 KG (two hinges)
Max. size showerdoor with 6 and 8 mm glass: 900 x 2000 mm
Max. size showerdoor with 10 mm glass: 800 x 2000 mm
Zamac material, chrome finish
Always use sealing profile 8861KU0 on the hinged side to avoid damage to the glass
Pay attention! The cut-out as seen in the image is based on 8 mm glass thickness
To be bought per piece, the mentioned price is the price for 1 piece! And not for the pair!
Pauli+Sohn Flinter 8152ZN5 showerdoor hinge (wall-glass) chrome comes with:
One showerdoor hinge, finishing polished chrome
Two socket head screws for clamping the glass door to the hinge
One cover plate to place over the wall mounting screws
One cover plate to place over the clamping screws
Five silicone stickers to secure the two cover plates
One Allen key for adjusting the zero position
Assembly gaskets that correspond to the glass thickness you specified
Points of attention:
Make sure you use the correct glass deduction when ordering the glass door. For example, if you install a sealing profile, you need a different glass deduction than if you are going to install a door without a seal. If you cannot find a solution, ask us for advice
ALWAYS use sealing profile 8861KU0 on the hinge side with this hinge, without this seal the glass will break!
Read the mounting manual in advance. It contains useful tips
Two hinges are always used for a showerdoor up to a height of 2000 mm (200 cm). If the door is higher then 2000 mm, three hinges are required. You then get a better load-bearing capacity and the pressure when opening / closing the door is better distributed over three hinges
Use the correct wall mounting screws and plugs for your situation. Because of various situations the screws do NOT come with the hinge by default. Choose the correct mounting materials for your situation!
Wall mounting screws that are too small can break the hinge. Pay attention to this!!
Mount the hinge on the glass door, position the glass door in the correct position and draw the drill holes of the slotted holes on the wall. Now remove the glass door, drill the holes of the slotted holes and place the correct plugs.
Put the glass door back in the correct position again and screw the wall mounting screws on the wall, position the door (read manual!) and then tighten the wall mounting screws
Finally, drill the hole for the fixation hole. This is to fixate the hing in the definite position
Set the zero position correctly (see also manual)
Work with precision, take your time, use the right tools and ask someone to help you when you need to move and mount the glass door
Preferably use a long water level or a laser water level to properly position the glass panel
NEVER let the glass door rest on the floor, always place something in between it such as a wooden slat, blanket etc. If glass is put on a hard surface, the risk of damage is very high. This also applies to any contact with the wall and other hard surfaces. Protect the glass at all times, it's a vulnerable material !
|Brand||Pauli + Sohn|
|Mounting of ... to ....||Glass door to normal wall (non-glas wall)|
|Suitable types of glass||installation glass (tempered glass incl. 5 holes and edge finishing)|
|Glass thickness in mm||6, 8, 10|
|Adjustable zero position||Yes|
|Capacity of 2 pieces (KG)||36|
|Max. size showerdoor with 8 mm glass||900 x 2000 mm (w x h)|
|Max. size showerdoor with 10 mm glass||800 x 2000 mm (w x h)|
|Expected delivery time||1-3 working days|
|Scope of supply||per 1 piece|
|Unit of measurement||per piece|
|Packed in a||box|
|Shipping price Netherlands||11,50|
|Shipping price Belgium||14,00|
|Shipping price rest of Europe||See the check-out page for actual pricing|
