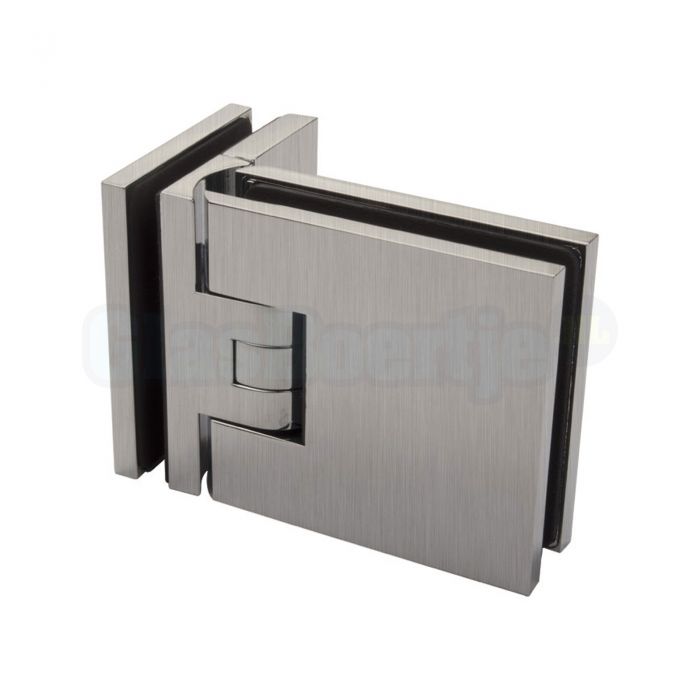

Flamea+ showerdoor hinge 8136 (glass-glass) 90°, Stainless Steel look
Suitable for 6, 8 and 10 mm glass thickness, Zamac, Stainless steel look, capacity 2 hinges: max. 45 kg(More information)
- Free shipment from € 500,- (incl. VAT)
- Pick-up in NL or delivery in NL and Flanders (exception of the Wadden Islands)
- Relatively short delivery times
- Pay with i.e. iDeal, Riverty, Billink, Bancontact, PayPal en Creditcard
This shower hinge from Pauli+Sohn is a quality product from Germany and comes from the Flamea+ series. The "plus" means that this series can also support somewhat larger and heavier doors. This series is the "big brother" of the normal Flamea series.
The sleek design of this relatively small hinge ensures a sleek and modern shower door. This gives your shower door a neutral and as "light" as possible appearance.
This hinge is sold per piece and the mentioned price is a 1 piece price. However, the specifications listed are based on the use of two hinges.
Features Pauli+Sohn Flamea+ showerdoor hinge 8136ZNPVD22, glass-glass, 90°, Stainless Steel look:
- Showerdoor hinge for mounting a glass shower door on a glass wall, mounting at 90 degrees
- Double acting; Rotates 90 degrees inwards and 90 degrees outwards (total 180 degrees)
- Adjustable zero position; self-closing in the last centimetres towards the zero position
- Material Zamak, Stainless Steel look finish
- Suitable for glass thickness: 6, 8 and 10 mm (we recommend using 8 mm for a shower door)
- Maximum door weight: 45 kg (with two hinges)
- Max. size showerdoor with 6 and 8 mm glass: 1000 x 2000 mm
- Max. size showerdoor with 10 mm glass: 900 x 2000 mm
- Pay attention! The cut-out as seen in the image is based on 8 mm glass thickness
- To be bought per piece, the mentioned price is the price for 1 piece! And not for the pair!
Pauli+Sohn Flamea+ showerdoor hinge 8136ZNPVD22, glass-glass, 90°, Stainless Steel look comes with:
- One showerdoor hinge
- Two socket flat head screws for mounting the hinge to the glass wall and four socket flat head screws for mounting the glass door to the hinge
- Two cover plates to place over the six socket flat head clamping screws
- Five silicone stickers to secure the two cover plates
- One Allen key for adjusting the zero position
- Assembly gaskets that correspond to the glass thickness you specified
- Mounting instructions
Points of attention:
- Make sure you use the correct glass deduction when ordering the glass door. For example, if you install a sealing profile, you need a different glass deduction than if you are going to install a door without a seal. Please ask us for advice if you don't know what to do
- Read the mounting manual in advance. It contains useful tips
- Two hinges are always used for a showerdoor up to a height of 2000 mm (200 cm). If the door is higher than 2000 mm, three hinges are required. You then get a better load-bearing capacity and the pressure when opening / closing the door is better distributed over three hinges
- Work with precision, take your time, use the right tools and ask someone to help you when you need to move and mount the glass door
- Preferably use a long water level or a laser water level to properly position the glass panel
- Make sure the floor and wall are level. If these are not level, this can result in a crooked gap between the glass and the wall/floor. You than may have to order the glass in a different shape to fit correctly
- NEVER let the glass rest on the floor, always place something in between such as a wooden slat, blanket, rug, etc. If glass is placed on a hard surface, the risk of damage is very high. This also applies to contact with the wall and other hard surfaces. Protect the glass at all times, it is and remains a vulnerable product
- ALWAYS use the correct Personal Protection Equipment when you move and/or install the glass
|Brand||Pauli + Sohn|
|Mounting of ... to ....||Glass door to glass wall|
|Suitable types of glass||installation glass (tempered glass incl. 5 holes and edge finishing)|
|Glass thickness in mm||6, 8, 10|
|Adjustable zero position||Yes|
|Capacity of 2 pieces (KG)||45|
|Max. size showerdoor with 8 mm glass||1000 x 2000 mm (w x h)|
|Max. size showerdoor with 10 mm glass||900 x 2000 mm (w x h)|
|Finishing||Stainless Steel look|
|Expected delivery time||1-3 working days|
|Scope of supply||per 1 piece|
|Unit of measurement||per piece|
|Packed in a||box|
|Shipping price Netherlands||11,50|
|Shipping price Belgium||14,00|
|Shipping price rest of Europe||See the check-out page for actual pricing|
