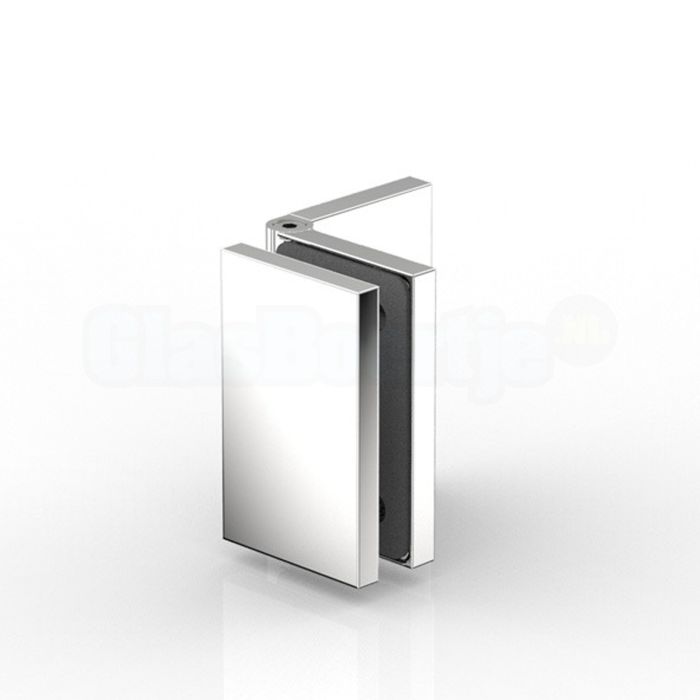

Flamea+ shower glass clamp 60-100º, wall-glass, chrome (8199)
Glass-wall connection, suitable for 6/8/10 mm glass thickness, material: Zamac, polished chromeMore information
- Gratis verzending vanaf € 500,- (incl. BTW)
- Afhalen in NL of leveren in NL en Vlaanderen (m.u.v. Waddeneilanden)
- Relatief korte levertijden
- Betalen met o.a. iDeal, Riverty, Billink, Bancontact, PayPal en Creditcard
Features Pauli+Sohn Flamea+ shower glass clamp 60º-100º, wall-glass, chrome (8199ZN5):
Shower glass clamp for mounting a glass shower enclosure on a wall, mounting adjustable between 60 and 100 degrees
Mounting plate equipped with two slotted holes and one fixation hole for optimal adjustment and mounting possibilities (including cover cap)
Suitable for glass thickness: 6, 8 and 10 mm (we advise to always use a minimum glass thickness of 8 mm for a shower enclosure)
Material Zamak, chrome finish
This shower glass clamp requires a hole or recess in the glass. See the technical image for specifications
This shower glass clamp may require additional edge finishing on the glass, depending on the angle at which the clamp is mounted on the wall
For shower walls / enclosures that are mounted with a glass clamp, use installation glass (that is tempered glass with holes / recesses to be able to mount the clamp on to the glass)
This product can be ordered by 1 piece, the mentioned price is the price per piece!
Pauli+Sohn Flamea+ shower glass clamp 60º-100º, wall-glass, chrome (8199ZN5) comes with:
One shower glass clamp
One socket flat head screw for mounting the glass clamp on to the glass
Cover cap to place over the wall mounting screws
Silicone stickers to secure the cover
Mounting gaskets that belongs to the glass thickness you specified
Points of attention:
Read the installation guide in advance! It contains useful tips
This clamp requires a specific hole or recess in the glass. Without this hole or recess you cannot use this clamp
If you set the clamp at a certain angle, you will also have to have that side of the glass slanted/mitred. See the installation manual for the details of which glass reduction applies to the different angles of edge finishing
Use the correct screws and plugs for your situation to mount the clamp on the wall. These screws and plugs are NOT supplied with the clamp. Screws with a head that is too small can damage the glass clamp and even break the glass clamp. Pay close attention to this!!
Take your time, work with discretion and use the correct tools
Preferably use a long water level or a laser water level to properly position the glass panel
We advise you to keep a clearance of 3 mm between the glass and the wall and between the glass and the floor. This way you can seal it neatly waterproof with silicone sealant. Please remember that you order the glass wall 3 mm narrower and/or less high
Make sure the floor and wall are level. If these are not level, this can result in a crooked gap between the glass and the wall/floor. You than may have to order the glass in a different shape to fit correctly
NEVER let the wall rest on the floor, always place something in between such as a wooden slat, blanket, rug, etc. If glass is placed on a hard surface, the risk of damage is very high. This also applies to contact with the wall and other hard surfaces. Protect the glass at all times, it is and remains a vulnerable product
ALWAYS use the correct Personal Protection Equipment when you move and/or install the glass
|Brand||Pauli + Sohn|
|Mounting of ... to ....||Glass wall to normal wall (non-glas wall)|
|Degrees||60 ° - 100 °|
|Suitable types of glass||installation glass (tempered glass incl. 5 holes and edge finishing)|
|Glass thickness in mm||6, 8, 10|
|Expected delivery time||1-3 working days|
|Scope of supply||per 1 piece|
|Unit of measurement||per piece|
|Packed in a||unpackaged|
|Shipping price Netherlands||11,50|
|Shipping price Belgium||14,00|
|Shipping price rest of Europe||See the check-out page for actual pricing|
|Pick-up possible?||Yes, Pick-up is possible in:, Oosterhout (Noord-Brabant), 's-Hertogenbosch|
