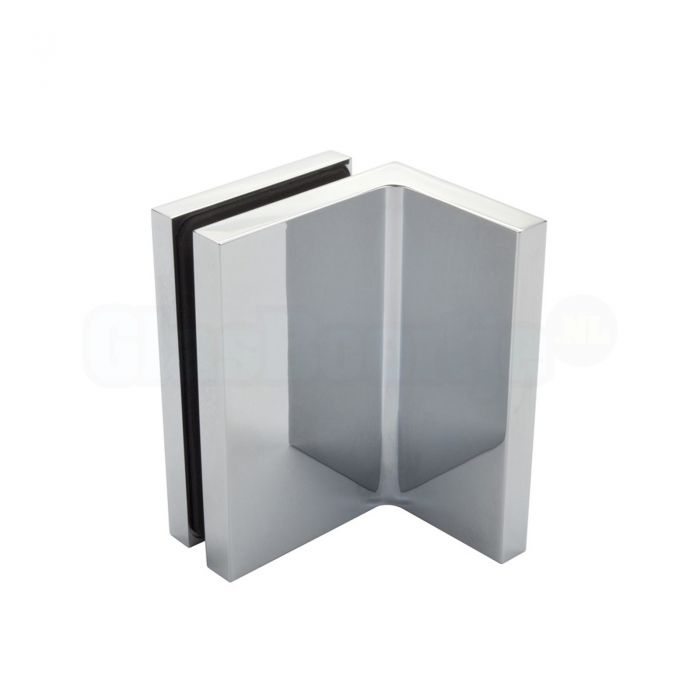

Flamea+ shower glass clamp 90º, wall-glass, chrome (8194)

Glass-wall connection, suitable for 6/8/10 mm glass thickness, material: Zamac, polished chrome

(More information)
Art. no.
per piece
Delivery: 1 - 3 working days
  • Free shipment from € 500,- (incl. VAT)
  • Pick-up in NL or delivery in NL and Flanders (exception of the Wadden Islands)
  • Relatively short delivery times
  • Pay with i.e. iDeal, Riverty, Billink, Bancontact, PayPal en Creditcard

Features Pauli+Sohn Flamea+ shower glass clamp 90º, wall-glass, chrome (8194ZN5):

  • Shower glass clamp for mounting a glass shower enclosure on a wall, mounting at 90 degrees
  • Mounting plate equipped with two slotted holes and one fixation hole for optimal adjustment and mounting possibilities (including cover cap)
  • Suitable for glass thickness: 6, 8 and 10 mm (we advise to always use a minimum glass thickness of 8 mm for a shower enclosure)
  • Material Zamak, chrome finish
  • This shower glass clamp requires a hole or recess in the glass. See the technical image for specifications
  • For shower walls / enclosures that are mounted with a glass clamp, use installation glass (that is tempered glass with holes / recesses to be able to mount the clamp on to the glass)
  • This product can be ordered by 1 piece, the mentioned price is the price per piece!


Pauli+Sohn Flamea+ shower glass clamp 90º, wall-glass, chrome (8194ZN5):

  • One shower glass clamp
  • One socket flat head screw for mounting the glass clamp on to the glass
  • One cover cap to place over the wall mounting screws
  • Four silicone stickers to secure the cover
  • Mounting gaskets that belongs to the glass thickness you specified
  • Installation guide


Points of attention:

  • Read the installation guide in advance! It contains useful tips
  • This clamp requires a specific hole or recess in the glass. Without this hole or recess you cannot use this clamp
  • Use the correct screws and plugs for your situation to mount the clamp on the wall. These screws and plugs are NOT supplied with the clamp. Screws with a head that is too small can damage the glass clamp and even break the glass clamp. Pay close attention to this!!
  • Take your time, work with discretion and use the correct tools
  • Preferably use a long water level or a laser water level to properly position the glass panel
  • We advise you to keep a clearance of 3 mm between the glass and the wall and between the glass and the floor. This way you can seal it neatly waterproof with silicone sealant. Please remember that you order the glass wall 3 mm narrower and/or less high
  • Make sure the floor and wall are level. If these are not level, this can result in a crooked gap between the glass and the wall/floor. You than may have to order the glass in a different shape to fit correctly
  • NEVER let the wall rest on the floor, always place something in between such as a wooden slat, blanket, rug, etc. If glass is placed on a hard surface, the risk of damage is very high. This also applies to contact with the wall and other hard surfaces. Protect the glass at all times, it is and remains a vulnerable product
  • ALWAYS use the correct Personal Protection Equipment when you move and/or install the glass
More information
Art. no. 200112
Brand Pauli + Sohn
Series Flamea +
Mounting of ... to .... Glass wall to normal wall (non-glas wall)
Degrees 60 ° - 100 °
Suitable types of glass installation glass (tempered glass incl. 5 holes and edge finishing)
Glass thickness in mm 6, 8, 10
Style square
Material Zamak
Finishing glossy chrome
Expected delivery time 1 - 3 working days
Scope of supply per 1 piece
Unit of measurement per piece
Packaging box
Warranty 3 years
Shipping price Netherlands 13,50
Shipping price Belgium 17,50
Shipping price rest of Europe See the check-out page for actual pricing
Pick-up possible? Yes, Pick-up is possible in:, Oosterhout (Noord-Brabant), 's-Hertogenbosch
