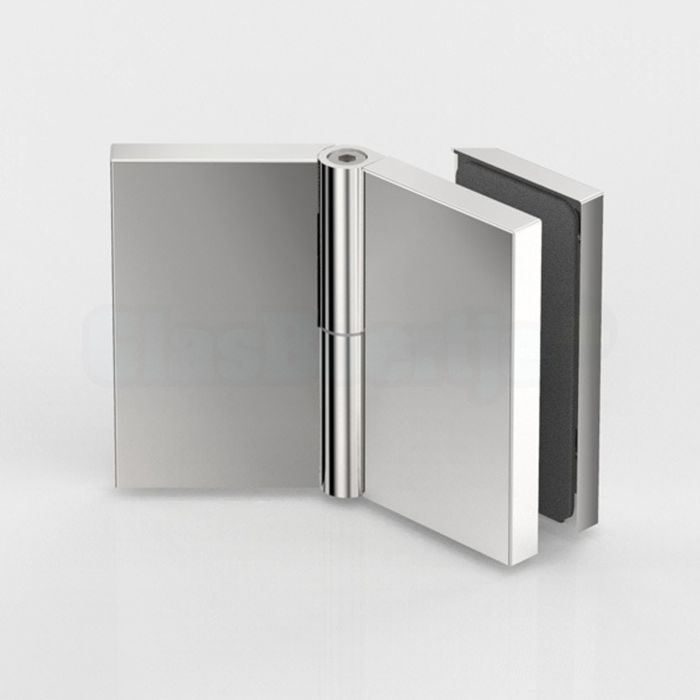

Flamea+ shower glass clamp 100-135º, wall-glass, chrome (8189)

Delivery: 1-3 working days
Art. no.
200127

Glass-wall connection 135°, suitable for 6/8/10 mm glass thickness, material: Zamac, polished chrome

More information
€114.75
per piece
  • Gratis verzending vanaf € 500,- (incl. BTW)
  • Afhalen in NL of leveren in NL en Vlaanderen (m.u.v. Waddeneilanden)
  • Relatief korte levertijden
  • Betalen met o.a. iDeal, Riverty, Billink, Bancontact, PayPal en Creditcard

Features Pauli+Sohn Flamea+ shower glass clamp 100º-135º, wall-glass, chrome (8189ZN5):

tick-marks  Shower glass clamp for mounting a glass shower enclosure on a wall, mounting adjustable between 100 and 135 degrees
tick-marks  Mounting plate equipped with two slotted holes and one fixation hole for optimal adjustment and mounting possibilities (including cover cap)
tick-marks  Suitable for glass thickness: 6, 8 and 10 mm (we advise to always use a minimum glass thickness of 8 mm for a shower enclosure)
tick-marks  Material Zamak, chrome finish
tick-marks  This shower glass clamp requires a hole or recess in the glass. See the technical image for specifications
tick-marks  This shower glass clamp may require additional edge finishing on the glass, depending on the angle at which the clamp is mounted on the wall
tick-marks  For shower walls / enclosures that are mounted with a glass clamp, use installation glass (that is tempered glass with holes / recesses to be able to mount the clamp on to the glass)
tick-marks  This product can be ordered by 1 piece, the mentioned price is the price per piece!



Pauli+Sohn Flamea+ shower glass clamp 100º-135º, wall-glass, chrome (8189ZN5) comes with:

tick-marks  One shower glass clamp
tick-marks  One socket flat head screw for mounting the glass clamp on to the glass
tick-marks  One cover cap to place over the screws
tick-marks  Silicone stickers to secure the cover
tick-marks  Mounting gaskets that belongs to the glass thickness you specified
tick-marks  Installation guide



Points of attention:

tick-marks  Read the installation guide in advance! It contains useful tips
tick-marks  This clamp requires a specific hole or recess in the glass. Without this hole or recess you cannot use this clamp
tick-marks  If you set the clamp at a certain angle, you will also have to have that side of the glass slanted/mitred. See the installation manual for the details of which glass reduction applies to the different angles of edge finishing
tick-marks  Use the correct screws and plugs for your situation to mount the clamp on the wall. These screws and plugs are NOT supplied with the clamp. Screws with a head that is too small can damage the glass clamp and even break the glass clamp. Pay close attention to this!!
tick-marks  Take your time, work with discretion and use the correct tools
tick-marks  Preferably use a long water level or a laser water level to properly position the glass panel
tick-marks  We advise you to keep a clearance of 3 mm between the glass and the wall and between the glass and the floor. This way you can seal it neatly waterproof with silicone sealant. Please remember that you order the glass wall 3 mm narrower and/or less high
tick-marks  Make sure the floor and wall are level. If these are not level, this can result in a crooked gap between the glass and the wall/floor. You than may have to order the glass in a different shape to fit correctly
tick-marks  NEVER let the wall rest on the floor, always place something in between such as a wooden slat, blanket, rug, etc. If glass is placed on a hard surface, the risk of damage is very high. This also applies to contact with the wall and other hard surfaces. Protect the glass at all times, it is and remains a vulnerable product
tick-marks  ALWAYS use the correct Personal Protection Equipment when you move and/or install the glass

More Information
Art. no.200127
BrandPauli + Sohn
SeriesFlamea +
Mounting of ... to ....Glass wall to normal wall (non-glas wall)
Degrees135 °
Suitable types of glassinstallation glass (tempered glass incl. 5 holes and edge finishing)
Glass thickness in mm6, 8, 10
Stylesquare
MaterialZamak
Finishingglossy chrome
Expected delivery time1-3 working days
Scope of supplyper 1 piece
Unit of measurementper piece
Packed in aunpackaged
Warranty3 years
Shipping price Netherlands11,50
Shipping price Belgium14,00
Shipping price rest of EuropeSee the check-out page for actual pricing
Pick-up possible?Yes, Pick-up is possible in:, Oosterhout (Noord-Brabant), 's-Hertogenbosch
