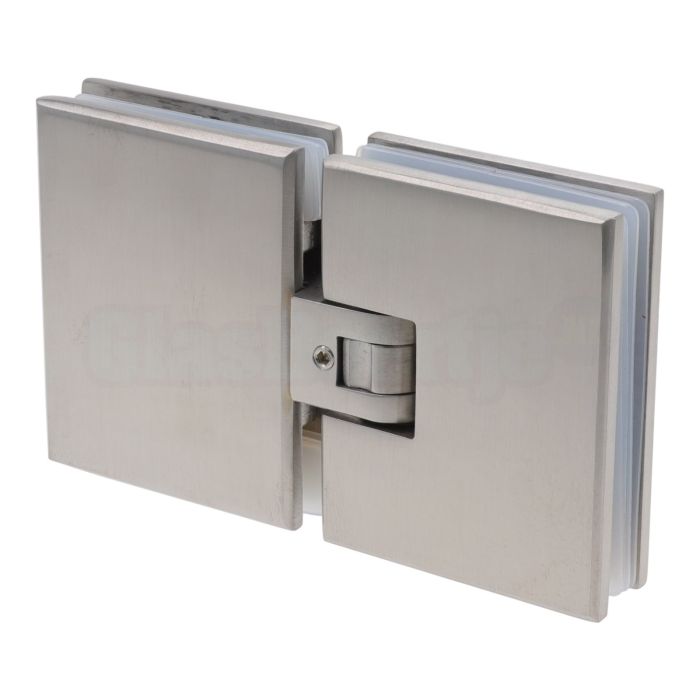

CBM Synera 3028 shower hinge (glass-glass), brushed Stainless Steel

Art. no.
210103

Suitable for 8 and 10 mm glass thickness, Stainless Steel, brushed, capacity 2 hinges: max. 45 kg

More information
€203.50
per piece
Delivery: 1-3 working days

This CBM shower door hinge is from the Synera series and is completely made of stainless steel. CBM is an Italian manufacturer of different types of glass fittings, including shower glass fittings. This hinge is made of stainless steel (AISI304), is double-acting (so it turns both inwards and outwards), has an adjustable zero position and is mounted on the glass with clamping plates and screws.

This hinge is sold per piece and the mentioned price is one piece price. However, the specifications listed are based on the use of two hinges. Also logical because a door with 1 hinge would not work.



Main features CBM Synera 3028 showerdoor hinge glass-glass (brushed Stainless Steel):

tick-marks  Showerdoor hinge for mounting a glass shower door on a glass wall, mounting at 180 degrees
tick-marks  Double acting; Rotates 90 degrees inward and 90 degrees outward (total 180 degrees)
tick-marks  Adjustable zero position; self-closing in the last centimeters towards the zero position
tick-marks  Suitable for glass thickness: 8 and 10 mm (we recommend using 8 mm for a shower door)
tick-marks  Maximum door weight: 45 kg (with two hinges)
tick-marks  Max. size showerdoor with 8 mm glass: 1100 x 2000 mm
tick-marks  Max. size showerdoor with 10 mm glass: 900 x 2000 mm
tick-marks  Material: Stainless steel (AISI304), finishing brushed Stainless Steel
tick-marks  Pay attention! The cut-out as seen in the image is based on 8 mm glass thickness
tick-marks  To be bought per piece, the mentioned price is the price for 1 piece! And not for the pair!



CBM Synera 3028 showerdoor hinge glass-glass (brushed Stainless Steel) comes with:

tick-marks  One showerdoor hinge, finishing brushed
tick-marks  Two socket head screws for clamping the hinge to the glass wall and two socket head screws for clamping the glass door to the hinge
tick-marks  Assembly gaskets that correspond to the glass thickness you specified
tick-marks  Mounting instructions



Points of attention:

tick-marks  Make sure you use the correct glass deduction when ordering the glass door and shower enclosure. For example, if you install a sealing profile, you need a different glass deduction than if you are going to install a door without a seal. If you cannot find a solution, ask us for advice
tick-marks  Read the mounting manual in advance. It contains useful tips
tick-marks  Two hinges are always used for a showerdoor up to a height of 2000 mm (200 cm). If the door is higher then 2000 mm, three hinges are required. You then get a better load-bearing capacity and the pressure when opening / closing the door is better distributed over three hinges
tick-marks  Work with precision, take your time, use the right tools and ask someone to help you when you need to move and mount the glass door
tick-marks  NEVER let the glass door rest on the floor, always place something in between it such as a wooden slat, blanket etc. If glass is put on a hard surface, the risk of damage is very high. This also applies to any contact with the wall and other hard surfaces. Protect the glass at all times, it's a vulnerable material !

More Information
Art. no.210103
BrandCBM
SeriesSynera
Mounting of ... to ....Glass door to glass wall
Degrees180 °
Suitable types of glassinstallation glass (tempered glass incl. 5 holes and edge finishing)
Glass thickness in mm8, 10
Adjustable zero positionYes
Capacity of 2 pieces (KG)45
Max. size showerdoor with 8 mm glass1100 x 2000 mm (w x h)
Max. size showerdoor with 10 mm glass900 x 2000 mm (w x h)
Stylesquare
MaterialStainless Steel (AISI 304)
Finishingbrushed stainless steel
Expected delivery time1-3 working days
Scope of supplyper 1 piece
Unit of measurementper piece
Packed in abox
Warranty2 years
Shipping price Netherlands11,50
Shipping price Belgium14,00
Shipping price rest of EuropeSee the check-out page for actual pricing
