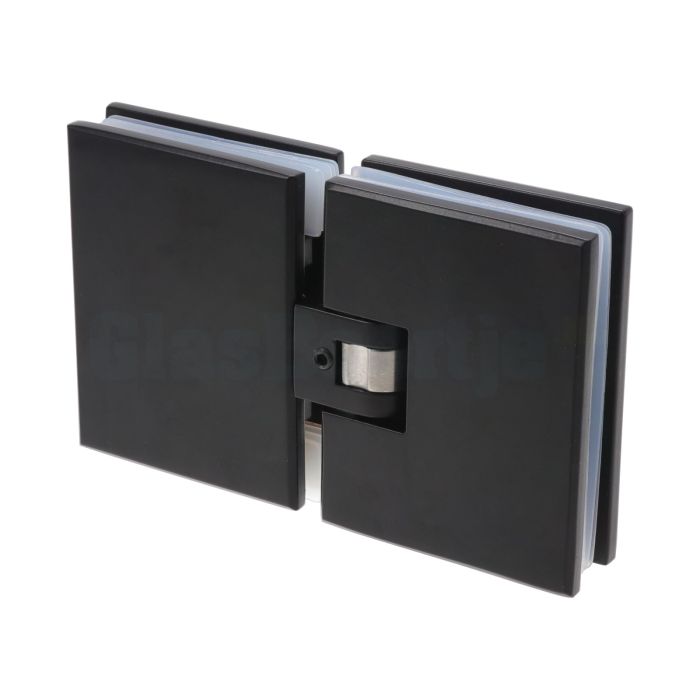

CBM Synera 3028 shower hinge (glass-glass), matt black
Suitable for 8 and 10 mm glass thickness, Stainless steel, matt black, capacity 2 hinges: max. 45 kg
(more information)- Free shipment from € 500,- (incl. VAT)
- Pick-up in NL or delivery in NL and Flanders (exception of the Wadden Islands)
- Relatively short delivery times
- Pay with i.e. iDeal, Riverty, Billink, Bancontact, PayPal en Creditcard
This CBM shower door hinge is from the Synera series and is completely made of stainless steel. CBM is an Italian manufacturer of different types of glass fittings, including shower glass fittings. This hinge is made of stainless steel (AISI304), is double-acting (so it turns both inwards and outwards), has an adjustable zero position and is mounted on the glass with clamping plates and screws.
This hinge is sold per piece and the mentioned price is one piece price. However, the specifications listed are based on the use of two hinges. Also logical because a door with 1 hinge would not work.
Main features CBM Synera 3028 showerdoor hinge glass-glass (matt black):
Showerdoor hinge for mounting a glass shower door on a glass wall, mounting at 180 degrees
Double acting; Rotates 90 degrees inward and 90 degrees outward (total 180 degrees)
Adjustable zero position; self-closing in the last centimeters towards the zero position
Suitable for glass thickness: 8 and 10 mm (we recommend using 8 mm for a shower door)
Maximum door weight: 45 kg (with two hinges)
Max. size showerdoor with 8 mm glass: 1100 x 2000 mm
Max. size showerdoor with 10 mm glass: 900 x 2000 mm
Material: Stainless steel (AISI304), finishing matt black
Pay attention! The cut-out as seen in the image is based on 8 mm glass thickness
To be bought per piece, the mentioned price is the price for 1 piece! And not for the pair!
CBM Synera 3028 showerdoor hinge glass-glass (matt black) comes with:
One showerdoor hinge, finishing matt black
Two socket head screws for clamping the hinge to the glass wall and two socket head screws for clamping the glass door to the hinge
Assembly gaskets that correspond to the glass thickness you specified
Mounting instructions
Points of attention:
Make sure you use the correct glass deduction when ordering the glass door and shower enclosure. For example, if you install a sealing profile, you need a different glass deduction than if you are going to install a door without a seal. If you cannot find a solution, ask us for advice
Read the mounting manual in advance. It contains useful tips
Two hinges are always used for a showerdoor up to a height of 2000 mm (200 cm). If the door is higher then 2000 mm, three hinges are required. You then get a better load-bearing capacity and the pressure when opening / closing the door is better distributed over three hinges
Work with precision, take your time, use the right tools and ask someone to help you when you need to move and mount the glass door
NEVER let the glass door rest on the floor, always place something in between it such as a wooden slat, blanket etc. If glass is put on a hard surface, the risk of damage is very high. This also applies to any contact with the wall and other hard surfaces. Protect the glass at all times, it's a vulnerable material !
