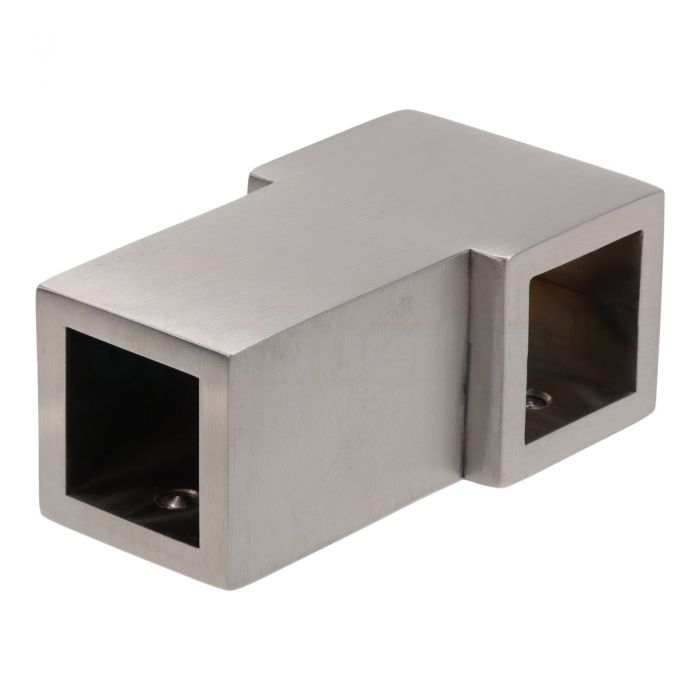

T-connector for stabilizer bar

Art. no.

Brand CBM, T-connector at an angle of 90 degrees for stabilizing bar diameter 20 x 20 mm, stainless steel (AISI 304), brushed finish, size 40 x 40 mm

More information
per piece
Delivery: 1-3 working days

This T-connection for a stabilizer bar of a shower enclosure is part of the Q series of the Italian brand CBM. With this T-connector you can extend the tube of the stabilizer bar and also mount it on another stabilizer bar, at an angle of 90 degrees. This block is made of stainless steel (AISI 304) and is brushed stainless steel finished. It looks like a pricey part but this is really a quality product.

The big advantage when assembling a stabilizing bar yourself compared to the standard bars is the enormous choice and freedom that you have. In this way you can put together a rod that exactly fits your situation. This part is delivered without any other mounting parts and without the tube, you will have to order these separately.


Main features of the T-connection for the stabilizer bar:

tick-marks  Basic material stainless steel (AISI 304)
tick-marks  Brushed finish
tick-marks  This block is 40 x 40 mm long and 30 x 30 mm in diameter
tick-marks  The tube for CBM stabilization rod of 20 x 20 mm in diameter fits in here
tick-marks  Can be ordered per piece, the price stated is a piece price!


This brushed stainless steel T-connection for stabilization bar is supplied with:

tick-marks  One mounting block of 40 x 40 mm
tick-marks  Two socket head screws
tick-marks  Packed in a cardboard box

Points of attention:

tick-marks  This is only the mounting block for making a T-connection! Mounting materials for the glass and the tube for the stabilization bar must be ordered separately!
tick-marks  This mounting block has a brushed finish which gives it a real stainless steel appearance. Preferably combine CBM items with each other and do not combine different brands together.

More Information
Art. no.210121
Degrees90 °
Glass thickness in mm8, 10
MaterialStainless Steel (AISI 304)
Finishingbrushed stainless steel
Expected delivery time1-3 working days
Scope of supplyper 1 piece
Unit of measurementper piece
Packed in abox
Warranty2 years
Shipping price Netherlands11,50
Shipping price Belgium14,00
Shipping price rest of EuropeSee the check-out page for actual pricing
Website manufacturerCBM
