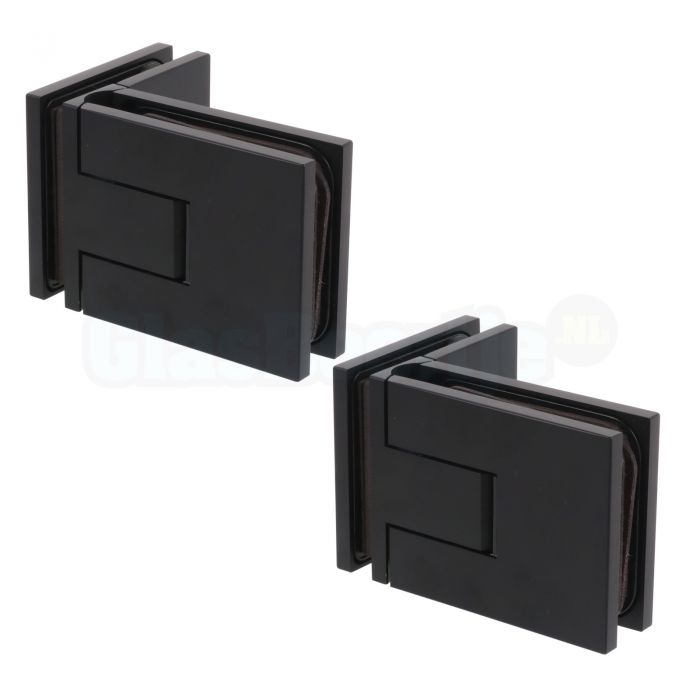

Bohle Juna 5410342 shower hinge 90 degrees (glass-glass), matt black

For 6, 8 and 10 mm glass, material: brass and stainless steel, matt black, capacity of 2 hinges: max. 50 kg

(More information)
Art. no.
204408
€380.50
per pair
Delivery: 2 - 7 working days
  • Free shipment from € 500,- (incl. VAT)
  • Pick-up in NL or delivery in NL and Flanders (exception of the Wadden Islands)
  • Relatively short delivery times
  • Pay with i.e. iDeal, Riverty, Billink, Bancontact, PayPal en Creditcard

The Bohle Juna shower hinge 90 degrees (glass-glass) combines aesthetics and functionality with quality. The gaps are minimal and all mounting screws are covered with solid and beautiful cover caps. You can tighten the clamping screws and zero setting with a torx screwdriver.

This hinge is sold in pairs and the listed price is therefore a set price. The specifications listed are based on the use of two hinges.

The Juna series was introduced by Bohle in early 2022. The hinges are officially tested to 100,000 cycles (test report available) and have a patented zeroing system. The mounting plate on the wall is made of brass, the clamping part on the glass is made of stainless steel. It is a subtle and solid hinge that is also suitable for the somewhat larger shower doors.



Main features Bohle Juna 5410342 showerdoor hinge 90 degrees glass-glass (matt black):

tick-marks  Showerdoor hinge for mounting a glass shower door to a glass wall, mounting at 90 degrees
tick-marks  Double acting; 90 degrees inwards and 90 degrees outwards rotation (total 180 degrees)
tick-marks  Adjustable zero position; self-closing in the last 20 degrees towards the zero position
tick-marks  Mounting plate with two clamping screws for mounting on a glass wall and mounting plate with two clamping screws for mounting on a glass door
tick-marks  Material: Brass and Stainless steel
tick-marks  Finish: Matt black
tick-marks  Suitable for glass thickness: 6, 8 and 10 mm (we recommend using a minimum of 8 mm for a shower door)
tick-marks  Maximum door weight: 50 kg (with two hinges)
tick-marks  Max. door size 6 and 8 mm glass thickness: 1000 x 2250 mm
tick-marks  Max. door size 10 mm glass thickness: 855 x 2250 mm
tick-marks  Pay attention! Cutouts are required in the glass for the hinges, order installation glass for this
tick-marks  To be ordered in pairs, the mentioned price is a set price of two hinges!



Bohle Juna 5410342 showerdoor hinge 90 degrees glass-glass (Mat black) comes with:

tick-marks  Two complete hinges
tick-marks  Four Torx screws for clamping the hinge to the glass (per hinge)
tick-marks  One Torx screw for setting the zero-position (per hinge)
tick-marks  The necessary cover caps to cover the mounting screws
tick-marks  Multiple mounting gaskets for mounting the different glass thicknesses
tick-marks  Assembly instructions



Points of attention:

tick-marks  Read the installation manual carefully beforehand! It contains useful installation tips
tick-marks  Work with patience and with the right tools
tick-marks  Preferably use a long spirit level or a laser level for proper positioning of the door
tick-marks  Make sure that you use the correct glass deduction when ordering the glass door. Ask us for advice if you can't figure it out
tick-marks  NEVER let the door rest on the floor, always place something in between, such as a wooden slat, blanket, rug, etc. If glass is placed on a hard surface, the risk of damage is very high. This also applies to contact with the wall and other hard surfaces. Protect the glass, it is and remains a vulnerable product
tick-marks  Also make sure that the glass door does not touch the glass wall, otherwise the glass may also be damaged or broken

More information
Art. no.204408
BrandBohle
SeriesJuna
EAN4010122108665
Mounting of ... to ....Glass door to glass wall
Degrees90 °
Suitable types of glassinstallation glass (tempered glass incl. 5 holes and edge finishing)
Glass thickness in mm6, 8, 10
Adjustable zero positionYes
Capacity of 2 pieces (KG)50
Max. size showerdoor with 8 mm glass1000 x 2250 mm (w x h)
Max. size showerdoor with 10 mm glass855 x 2250 mm (w x h)
Stylesquare
MaterialBrass
Finishingmatt black
Expected delivery time2 - 7 working days
Scope of supplyby the pair (2 pieces)
Unit of measurementper pair
Packagingbox
Warranty5 years
Shipping price Netherlands12,00
Shipping price Belgium12,00
Shipping price rest of EuropeSee the check-out page for actual pricing
Pick-up possible?No sorry, we can only ship this product to you
