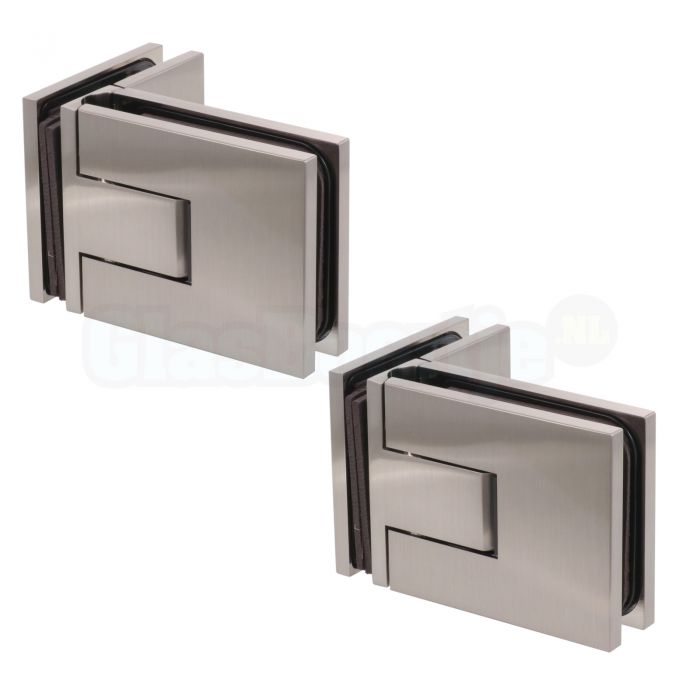

Bohle Juna 5410341 shower hinge 90 degrees (glass-glass), SST Look
For 6, 8 and 10 mm glass, material: brass and stainless steel, Stainless Steel Look, capacity of 2 hinges: max. 50 kgMore information
- Gratis verzending vanaf € 500,- (incl. BTW)
- Afhalen in NL of leveren in NL en Vlaanderen (m.u.v. Waddeneilanden)
- Relatief korte levertijden
- Betalen met o.a. iDeal, Riverty, Billink, Bancontact, PayPal en Creditcard
The Bohle Juna shower hinge 90 degrees (glass-glass) combines aesthetics and functionality with quality. The gaps are minimal and all mounting screws are covered with solid and beautiful cover caps. You can tighten the clamping screws and zero setting with a torx screwdriver.
This hinge is sold in pairs and the listed price is therefore a set price. The specifications listed are based on the use of two hinges.
The Juna series was introduced by Bohle in early 2022. The hinges are officially tested to 100,000 cycles (test report available) and have a patented zeroing system. The mounting plate on the wall is made of brass, the clamping part on the glass is made of stainless steel. It is a subtle and solid hinge that is also suitable for the somewhat larger shower doors.
Main features Bohle Juna 5410341 showerdoor hinge 90 degrees glass-glass (Stainless Steel look):
Showerdoor hinge for mounting a glass shower door to a glass wall, mounting at 90 degrees
Double acting; 90 degrees inwards and 90 degrees outwards rotation (total 180 degrees)
Adjustable zero position; self-closing in the last 20 degrees towards the zero position
Mounting plate with two clamping screws for mounting on a glass wall and mounting plate with two clamping screws for mounting on a glass door
Material: Brass and Stainless steel
Finish: Stainless Steel look
Suitable for glass thickness: 6, 8 and 10 mm (we recommend using a minimum of 8 mm for a shower door)
Maximum door weight: 50 kg (with two hinges)
Max. door size 6 and 8 mm glass thickness: 1000 x 2250 mm
Max. door size 10 mm glass thickness: 855 x 2250 mm
Pay attention! Cutouts are required in the glass for the hinges, order installation glass for this
To be ordered in pairs, the mentioned price is a set price of two hinges!
Bohle Juna 5410341 showerdoor hinge 90 degrees glass-glass (Stainless Steel look) comes with:
Two complete hinges
Four Torx screws for clamping the hinge to the glass (per hinge)
One Torx screw for setting the zero-position (per hinge)
The necessary cover caps to cover the mounting screws
Multiple mounting gaskets for mounting the different glass thicknesses
Points of attention:
Read the installation manual carefully beforehand! It contains useful installation tips
Work with patience and with the right tools
Preferably use a long spirit level or a laser level for proper positioning of the door
Make sure that you use the correct glass deduction when ordering the glass door. Ask us for advice if you can't figure it out
NEVER let the door rest on the floor, always place something in between, such as a wooden slat, blanket, rug, etc. If glass is placed on a hard surface, the risk of damage is very high. This also applies to contact with the wall and other hard surfaces. Protect the glass, it is and remains a vulnerable product
Also make sure that the glass door does not touch the glass wall, otherwise the glass may also be damaged or broken
|Mounting of ... to ....||Glass door to glass wall|
|Suitable types of glass||installation glass (tempered glass incl. 5 holes and edge finishing)|
|Glass thickness in mm||6, 8, 10|
|Adjustable zero position||Yes|
|Capacity of 2 pieces (KG)||50|
|Max. size showerdoor with 8 mm glass||1000 x 2250 mm (w x h)|
|Max. size showerdoor with 10 mm glass||855 x 2250 mm (w x h)|
|Finishing||Stainless Steel look|
|Expected delivery time||2-7 working days|
|Scope of supply||by the pair (2 pieces)|
|Unit of measurement||per pair|
|Packed in a||box|
|Shipping price Netherlands||12,00|
|Shipping price Belgium||12,00|
|Shipping price rest of Europe||See the check-out page for actual pricing|
|Pick-up possible?||No sorry, we can only ship this product to you|
