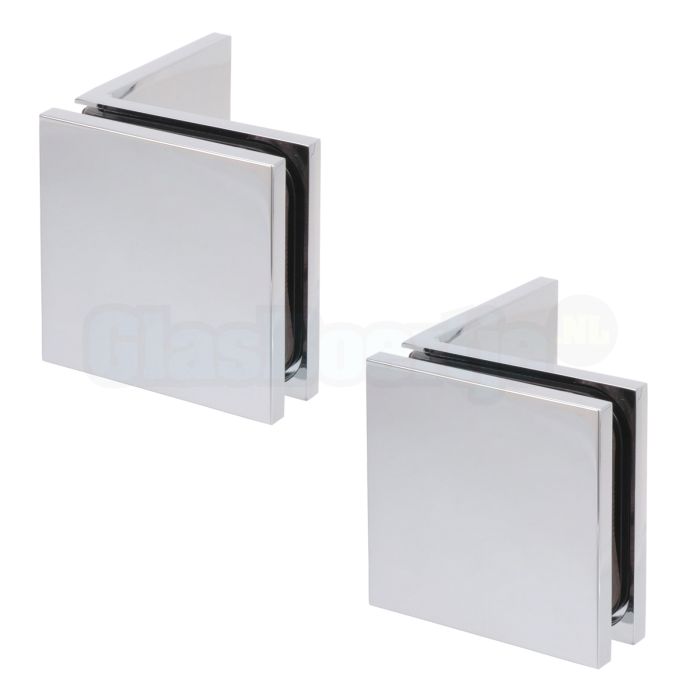

Bohle Juna shower glass clamp 90º, wall-glass, chrome (5410330)
Glass-wall connection, for 6-8-10 mm glass , material: Brass, polished chrome
(more information)
Art. no.
204416
€142.75
per pair
Delivery: 2 - 7 working days
- Free shipment from € 500,- (incl. VAT)
- Pick-up in NL or delivery in NL and Flanders (exception of the Wadden Islands)
- Relatively short delivery times
- Pay with i.e. iDeal, Riverty, Billink, Bancontact, PayPal en Creditcard
Features of Bohle Juna glass clamp shower wall 90º, wall-glass, chrome (5410330):
- Shower wall glass clamp for mounting a glass shower wall on a wall, mounted at 90 degrees
- Single-sided lateral mounting plate with two slotted holes and one fixation hole for optimal adjustment (including cover cap)
- Suitable for glass thickness: 6, 8, and 10 mm (we recommend using a minimum of 8 mm for a shower wall)
- Material: Brass, chrome finished
- For this glass clamp, a hole needs to be drilled in the glass. Refer to the technical drawing for specifications
- To be ordered per pair, the listed price is a set price for two hinges!
Bohle Juna glass clamp shower wall 90º, wall-glass, chrome (5410330) comes with:
- Two clamps
- One Allen screw for attaching the clamp to the glass
- One cover cap to place over the wall mounting screws
- One cover cap to place over the glass clamp screw
- Multiple mounting gaskets for the installation of various glass thicknesses
- Installation manual
Points of attention:
- Read the installation manual thoroughly in advance for handy installation tips
- Note! This clamp requires a specific borehole in the glass. Without this hole, you cannot use this clamp
- Use the correct screws and plugs for your situation to mount the clamp to the wall. These screws and plugs are NOT included with the clamp. Screws with a too-small head can damage the glass clamp and even cause it to break. Pay close attention to this!
- Take your time, work carefully, and use the right tools
- Preferably use a long level or a laser level for properly positioning the glass plate
- We recommend leaving a 2 mm gap between the glass plate and the wall and between the glass plate and the floor. This way, you can neatly seal it waterproof. Keep in mind that you should order the glass wall 3 mm narrower and/or shorter in this case
- Ensure that the floor and wall are level. If they are not level, this can result in a crooked gap between the glass and the wall/floor. You may need to order a glass panel with a slanted side in this case
- Never let the wall rest on the floor; always place something in between, such as a wooden slat, blanket, carpet, etc. Placing glass on a hard surface greatly increases the risk of damage. This also applies to contact with the wall and other hard surfaces. Protect the glass; it remains a fragile product
- ALWAYS use the correct Personal Protective Equipment when moving or installing the glass
