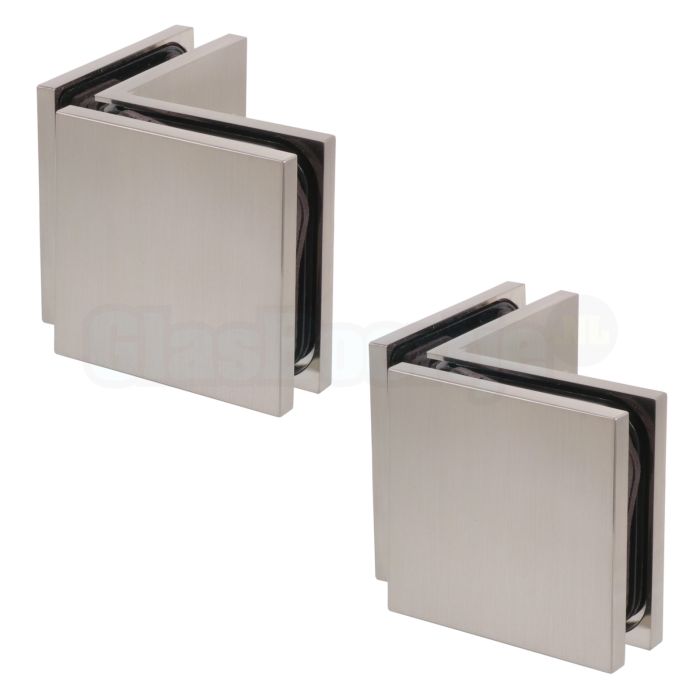

Bohle Juna shower glass clamp 90º, glass-glass, Stainless Steel look (5410321)

Glass-glass connection, for 6, 8 and 10 mm glass, material: Brass, Stainless Steel look

(More information)
Art. no.
per pair
Delivery: 2 - 7 working days
  • Free shipment from € 500,- (incl. VAT)
  • Pick-up in NL or delivery in NL and Flanders (exception of the Wadden Islands)
  • Relatively short delivery times
  • Pay with i.e. iDeal, Riverty, Billink, Bancontact, PayPal en Creditcard

Features of Bohle Juna glass clamp shower wall 90º, glass-glass, Stainless Steel look (5410321):

  • Shower wall glass clamps for mounting a glass shower wall on a glass wall, mounted at 90 degrees
  • Suitable for glass thickness: 6, 8, and 10 mm (we recommend using a minimum of 8 mm for a shower wall)
  • Material: Brass, Stainless Steel look finish
  • For this glass clamp, a hole or recess in the glass is required. Refer to the technical drawing for specifications
  • To be ordered per pair, the listed price is a set price for two clamps!


Bohle Juna glass clamp shower wall 90º, glass-glass, Stainless Steel look (5410321) comes with:

  • Two clamps
  • Four Allen screws for attaching the clamp to the glass
  • Six cover caps to place over the glass clamp screws
  • Multiple mounting gaskets for the installation of various glass thicknesses
  • Installation manual


Points of attention:

  • Read the installation manual thoroughly in advance for handy installation tips
  • Note! This clamp requires specific boreholes in the glass. Without these holes, you cannot use this clamp
  • Take your time, work carefully, and use the right tools
  • Preferably use a long level or a laser level for properly positioning the glass plate
  • We recommend leaving a 2 mm gap between the glass plate and the wall and between the glass plate and the floor. This way, you can neatly seal it waterproof. Keep in mind that you should order the glass wall 2 mm narrower and/or shorter in this case
  • There is also an option to have both glass plates beveled at a 45-degree angle. However, this incurs an additional cost for the tempered installation glass. Different recesses/holes in the glass are required for this type of installation
  • Never let the wall rest on the floor; always place something in between, such as a wooden slat, blanket, carpet, etc. Placing glass on a hard surface greatly increases the risk of damage. This also applies to contact with the wall and other hard surfaces. Protect the glass; it remains a fragile product
  • Use ALWAYS the correct Personal Protective Equipment when moving or installing the glass
More information
Art. no.204422
Mounting of ... to ....Glass wall to glass wall
Degrees90 °
Suitable types of glassinstallation glass (tempered glass incl. 5 holes and edge finishing)
Glass thickness in mm6, 8, 10
FinishingStainless Steel look
Expected delivery time2 - 7 working days
Scope of supplyby the pair (2 pieces)
Unit of measurementper pair
Warranty5 years
Shipping price Netherlands12,00
Shipping price Belgium12,00
Shipping price rest of EuropeSee the check-out page for actual pricing
Pick-up possible?Yes, Pick-up is possible in:, 's-Hertogenbosch
