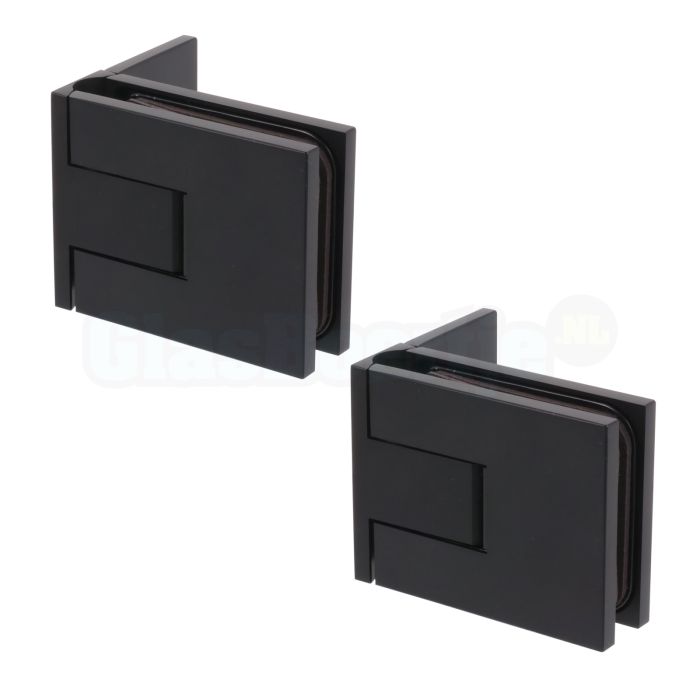

Bohle Juna 5410312 shower hinge (wall-glass), matt black

For 6, 8 and 10 mm glass, material: brass and stainless steel, matt black, capacity of 2 hinges: max. 50 kg

(more information)
Art. no.
204403
€280.00
per pair
Delivery: 2 - 7 working days
  • Free shipment from € 500,- (incl. VAT)
  • Pick-up in NL or delivery in NL and Flanders (exception of the Wadden Islands)
  • Relatively short delivery times
  • Pay with i.e. iDeal, Riverty, Billink, Bancontact, PayPal en Creditcard

The Bohle Juna shower hinge (wall-glass) combines aesthetics and functionality with quality. The gaps are minimal and all mounting screws are covered with solid and beautiful cover caps. You can tighten the clamping screws and zero setting with a torx screwdriver.

This hinge is sold in pairs and the listed price is therefore a set price. The specifications listed are based on the use of two hinges.

The Juna series was introduced by Bohle in early 2022. The hinges are officially tested to 100,000 cycles (test report available) and have a patented zeroing system. The mounting plate on the wall is made of brass, the clamping part on the glass is made of stainless steel. It is a subtle and solid hinge that is also suitable for the somewhat larger shower doors.



Main features Bohle Juna 5410312 showerdoor hinge wall-glass (matt black):

tick-marks  Showerdoor hinge for mounting a glass shower door to a fixed wall, mounting at 90 degrees
tick-marks  Double acting; 90 degrees inwards and 90 degrees outwards rotation (total 180 degrees)
tick-marks  Adjustable zero position; self-closing in the last 20 degrees towards the zero position
tick-marks  Single mounting plate with two slotted holes and one fixation hole
tick-marks  Material: Brass and Stainless steel
tick-marks  Finish: Matt black
tick-marks  Suitable for glass thickness: 6, 8 and 10 mm (we recommend using a minimum of 8 mm for a shower door)
tick-marks  Maximum door weight: 50 kg (with two hinges)
tick-marks  Max. door size 6 and 8 mm glass thickness: 1000 x 2250 mm
tick-marks  Max. door size 10 mm glass thickness: 855 x 2250 mm
tick-marks  Pay attention! Cutouts are required in the glass for the hinges, order installation glass for this
tick-marks  To be ordered in pairs, the mentioned price is a set price of two hinges!



Bohle Juna 5410312 showerdoor hinge wall-glass (matt black) comes with:

tick-marks  Two hinges
tick-marks  Two Torx screws for clamping the hinge to the glass
tick-marks  One Torx screw for setting the zero-position
tick-marks  The necessary cover caps to cover the mounting screws
tick-marks  Multiple mounting gaskets for mounting the different glass thicknesses
tick-marks  Assembly instructions



Points of attention:

tick-marks  Read the installation manual carefully beforehand! It contains useful installation tips
tick-marks  Use the correct screws and plugs for your situation (not supplied with the hinge as standard). Screws with too small a head can destroy the hinge and even break the hinge. Watch this carefully!!
tick-marks  Mount the hinges on the door, position the door in the right place and mark the drill holes on the wall. Now remove the door, drill the holes and place the correct plugs
tick-marks  Place the door back in the correct position and screw it hand tight to the wall, position it (read the manual!) and then tighten it properly
tick-marks  Set the zero position correctly (see also manual)
tick-marks  Work with policy and with the right tools
tick-marks  Preferably use a long spirit level or a laser level for proper positioning of the door
tick-marks  Make sure that you use the correct glass deduction when ordering the glass door. Ask us for advice if you can't figure it out
tick-marks  NEVER let the door rest on the floor, always place something in between, such as a wooden slat, blanket, rug, etc. If glass is placed on a hard surface, the risk of damage is very high. This also applies to contact with the wall and other hard surfaces. Protect the glass, it is and remains a vulnerable product
