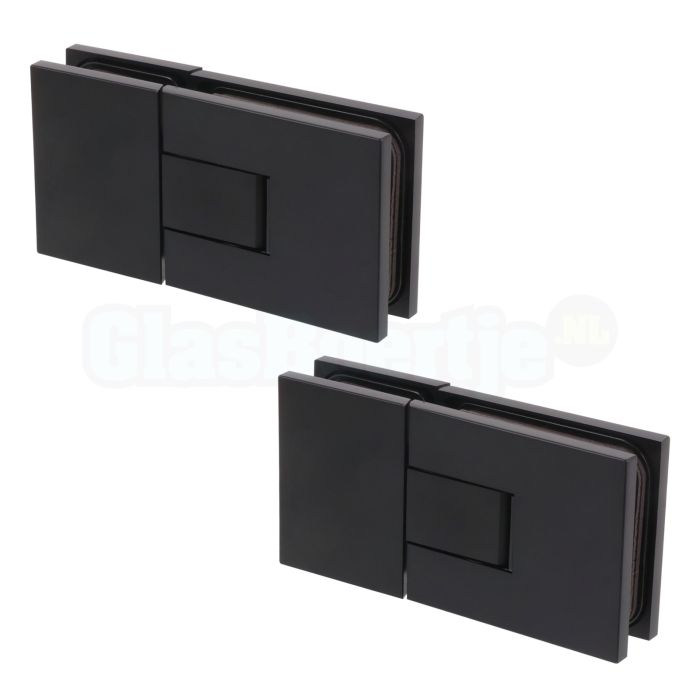

Bohle Juna 5410302 shower hinge 180 degrees (glass-glass), matt black

For 6, 8 and 10 mm glass, material: brass and stainless steel, chrome, capacity of 2 hinges: max. 50 kg

(more information)
Art. no.
204413
€400.75
per pair
Delivery: 2 - 7 working days
  • Free shipment from € 500,- (incl. VAT)
  • Pick-up in NL or delivery in NL and Flanders (exception of the Wadden Islands)
  • Relatively short delivery times
  • Pay with i.e. iDeal, Riverty, Billink, Bancontact, PayPal en Creditcard

The Bohle Juna shower hinge 180 degrees (glass-glass) combines aesthetics and functionality with quality. The gaps are minimal and all mounting screws are covered with solid and beautiful cover caps. You can tighten the clamping screws and zero setting with a torx screwdriver.

This hinge is sold in pairs and the listed price is therefore a set price. The specifications listed are based on the use of two hinges.

The Juna series was introduced by Bohle in early 2022. The hinges are officially tested to 100,000 cycles (test report available) and have a patented zeroing system. The mounting plate on the wall is made of brass, the clamping part on the glass is made of stainless steel. It is a subtle and solid hinge that is also suitable for the somewhat larger shower doors.



Features Bohle Juna 5410302 showerdoor hinge 180 degrees glass-glass (matt black):

  • Showerdoor hinge for mounting a glass shower door to a glass wall, mounting at 180 degrees
  • Double acting; 90 degrees inwards and 90 degrees outwards rotation (total 180 degrees)
  • Adjustable zero position; self-closing in the last 20 degrees towards the zero position
  • Mounting plate with two clamping screws for mounting on a glass wall and mounting plate with two clamping screws for mounting on a glass door
  • Material brass and stainless steel
  • Finish: matt black
  • Suitable for glass thickness: 6, 8 and 10 mm (we recommend using a minimum of 8 mm for a shower door)
  • Maximum door weight: 50 kg (with two hinges)
  • Max. door size 6 and 8 mm glass thickness: 1000 x 2250 mm
  • Max. door size 10 mm glass thickness: 855 x 2250 mm
  • Pay attention! Cutouts are required in the glass for the hinges, order installation glass for this
  • To be ordered in pairs, the mentioned price is a set price of two hinges!



Bohle Juna 5410302 showerdoor hinge 180 degrees glass-glass (matt black) comes with:

  • Two complete hinges
  • Four Torx screws for clamping the hinge to the glass (per hinge)
  • One Torx screw for setting the zero-position (per hinge)
  • The necessary cover caps to cover the mounting screws
  • Multiple mounting gaskets for mounting the different glass thicknesses
  • Assembly instructions



Points of attention:

  • Read the installation manual carefully beforehand! It contains useful installation tips
  • Work with patience and with the correct tools
  • Preferably use a long spirit level or a laser level for proper positioning of the door
  • Make sure that you use the correct glass deduction when ordering the glass door. Ask us for advice if you can't figure it out
  • NEVER let the door rest on the floor, always place something in between, such as a wooden slat, blanket, rug, etc. If glass is placed on a hard surface, the risk of damage is very high. This also applies to contact with the wall and other hard surfaces. Protect the glass, it is and remains a vulnerable product
  • Also make sure that the glass door does not touch the glass wall, otherwise the glass may also be damaged or broken
