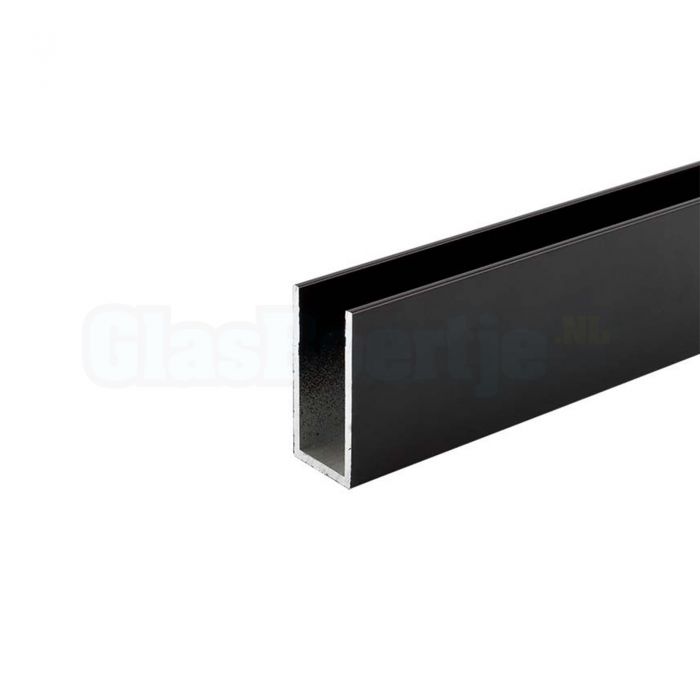

Aluminum u-profile 25x16x25 mm, black structure, 6 meter

Delivery: 2-7 working days
Art. no.

Aluminum, black structure finished, can only be ordered as a 6 meter profile

More information
per piece
  • Gratis verzending vanaf € 500,- (incl. BTW)
  • Afhalen in NL of leveren in NL en Vlaanderen (m.u.v. Waddeneilanden)
  • Relatief korte levertijden
  • Betalen met o.a. iDeal, Riverty, Billink, Bancontact, PayPal en Creditcard

This U-profile of 25x16x25 mm (outer size) has an inner size of 23.5 x 13 x 23.5 mm. This profile is often used to make an industrial steel-look door or wall. Due to the inner size of 13 mm you can slide it well over a tempered glass panel of 12 mm. You first apply the sealant to the profile and then slide the profile over the glass.

You can combine this with the matt black flat profile 25 x 2 mm to create a surface division.


Main features of aluminum U-profile 25x16x25 mm (black structure):

tick-marks  Aluminum U-shaped profile
tick-marks  Black structure finished
tick-marks  Suitable for indoor and outdoor use
tick-marks  Outer size is 25 x 16 x 25 mm
tick-marks  Inner size is 23.5 x 13 x 23.5 mm
tick-marks  Material thickness is 1.5 mm
tick-marks  The mentioned price is the price for 1 profile of 6 meters


The aluminum U-profile 25x16x25 mm, black structure is delivered:

tick-marks  As 1 profiel of 6 meter in length
tick-marks  At delivery address. Pick-up is also possible, the options are mentioned on the payment page


Points of attention:

tick-marks  With this profile no cover caps are available for the ends. You will have to seal it off or cut a cover from a piece of residual profile that you can mount on the end side
tick-marks  If you are going to place a glass panel in the profile, think carefully about the correct glass size. You will have to use a small glass deduction of at least approx. 2 - 4 mm (partly depending on the screw head that can protrude into the profile). If you apply the head in a recessed position, at least 2 mm is sufficient
tick-marks  Preferably you place a mounting gasket under the glass in the profile. You can also place this gasket on the side of the glass to properly position the glass pane in the profile before you seal it permanently. If you use this mounting gasket between the glass and the profile, take into account an extra glass deduction of at least 2 mm or 3 mm (depending on the thickness of the gasket used for it)

More Information
Art. no.207720
Suitable types of glasslaminated glass, tempered glass
Glass thickness in mm6, 7, 8, 10, 12, 6.38, 6.76, 8.38, 8.76, 9.52, 10.76, 11.52
Finishingblack structure
Scope of supplyper 1 piece
Unit of measurementper piece
Packed in aschrink wrap
Warranty2 years
Expected delivery time2-7 working days
Shipping price Netherlands11,50
Shipping price Belgium14,00
Shipping price rest of EuropeThis product can only be sent to NL and BE
Pick-up possible?Yes, Pick-up is possible in:, Oosterhout (Noord-Brabant)
