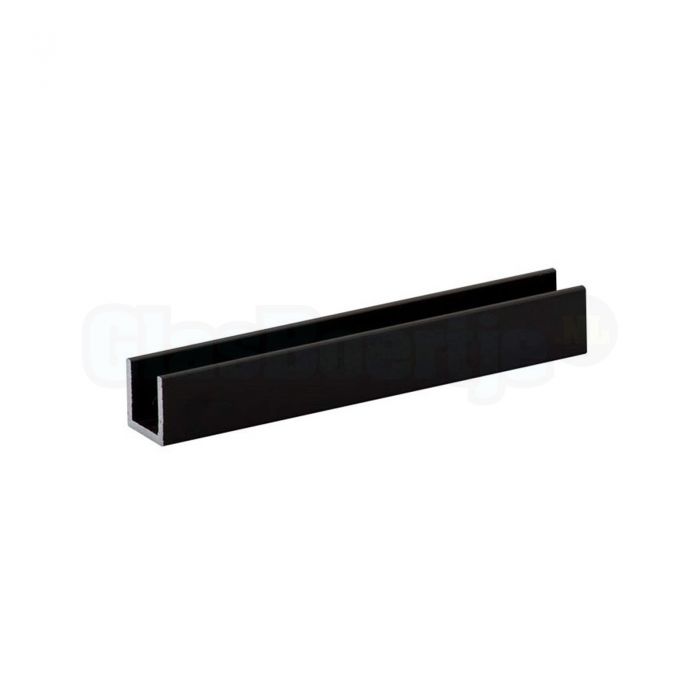

Aluminum u-profile 20x20x20 mm, matt black (max. 6 meter)
Aluminum, matt black (RAL9005) finished, made to measure or can be ordered as a 6 meter profileMore information
- Gratis verzending vanaf € 500,- (incl. BTW)
- Afhalen in NL of leveren in NL en Vlaanderen (m.u.v. Waddeneilanden)
- Relatief korte levertijden
- Betalen met o.a. iDeal, Riverty, Billink, Bancontact, PayPal en Creditcard
This U-profile of 20x20x20 mm in outer size has an inner size of 18 x 16 x 18 mm. The most ideal would fit a glass panel of 8 mm thickness. This leaves you 4 mm space on both sides of the glass to apply a sealant seam (16 mm width as inner size minus 8 mm thick glass leaves 8 mm space. You divide this 8 mm over 2 sides of the glass, and that is 4 mm space per side).
10 mm thick glass could also be put in, then this will mean a sealant of 3 mm per side. This is actually also ok. With 12 mm glass you only have 2 mm left per side and that is a little to less to apply sealant. For 15 mm glass you could first put the selant in the profile and then press the glass panel in it. The disadvantage is that you have to break everything if you ever remove the glass from the profile.
You can use this profile indoors to mount glass. A common application for this profile is for glass walls and shower enclosures.
Main features of aluminum U-profile 20x20x20 mm matt black:
Aluminum U-shaped profile
Matt black finished, RAL9005
Suitable for indoor use
Outer size is 20 x 20 x 20 mm
Inner size is 18 x 16 x 18 mm
Material thickness is 2 mm
Order custom made; please order the total amount in meters under "pieces", rounded upwards (i.e. when you need 220 cm in total, you order 3 pieces, as that is 3 meters where your piece has te be cut out). In the comment section of the check/out page you can let us know in what sizes you want the profile(s) to be cut
Maximum order length from 1 piece: 6 meters
When completing the order on the payment page, please indicate in which length(s) you want the profile(s) delivered
The mentioned price is a 1 meter price
The aluminum U-profile 20x20x20 mm matt black is delivered:
Cut to size
According to specified requirements
At delivery address. Pick-up is also possible, the options are mentioned on the payment page
Points of attention:
The profile is usually delivered cut to the correct size or with a small over-length, so that you can saw it neatly to size in the work itself and finish the end side neatly
The ends are not finished when you receive them. You will have to finish it yourself by filing it smooth and perhaps touching it with black paint
With this profile no cover caps are available for the ends. You will have to seal it off or cut a cover from a piece of residual profile that you can mount on the end side
If you are going to place a glass panel in the profile, think carefully about the correct glass size. You will have to use a small glass deduction of at least approx. 2 - 4 mm (partly depending on the screw head that can protrude into the profile). If you apply the head in a recessed position, at least 2 mm is sufficient
Preferably you place a mounting gasket under the glass in the profile. You can also place this gasket on the side of the glass to properly position the glass pane in the profile before you seal it permanently. If you use this mounting gasket between the glass and the profile, take into account an extra glass deduction of at least 2 mm or 3 mm (depending on the thickness of the gasket used for it)
|Suitable types of glass||laminated glass, tempered glass|
|Glass thickness in mm||6, 7, 8, 10, 12, 15, 6.38, 6.76, 8.38, 8.76, 9.52, 10.76, 11.52, 12.76, 13.52|
|Scope of supply||custom size|
|Unit of measurement||per meter|
|Packed in a||unpackaged|
|Expected delivery time||1-3 working days|
|Shipping price Netherlands||11,50|
|Shipping price Belgium||14,00|
|Shipping price rest of Europe||This product can only be sent to NL and BE|
